联锁开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D41L1ZDAN2INTERLOCK RFID SOLENOID RELEASE |
4 |
|
规格书 |
D41L | Box | Active | RFID, Solenoid Release | - | 250mA (DC) | 24VDC | 24VDC | 117kgf | Panel Disconnect | Connector (M12) | Manual Override | - | - | - | 0°C ~ 60°C | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
XCSE7533INTERLOCK SOLENOID LOCKING 3PST |
3 |
|
规格书 |
XCSE | Box | Active | Solenoid Locking | 3PST-1NO/2NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

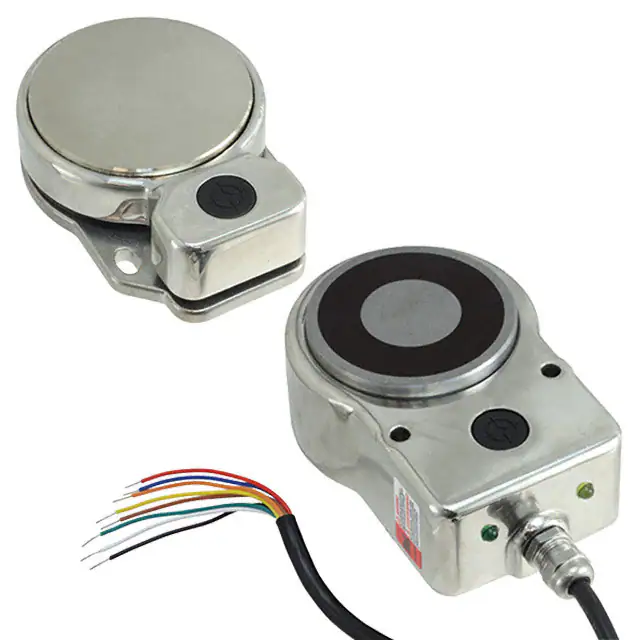

D40ML-SS1-U-5MINTERLOCK RFID DPST |
7 |
|
规格书 |
D40ML | Bulk | Active | RFID | DPST-NC | 200mA (DC) | 24VDC | 24VDC | 97kgf | Non-Contact | Cable Leads | Status Indicator, Magnetic Latching | 1mm | 10mm | - | -25°C ~ 40°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|

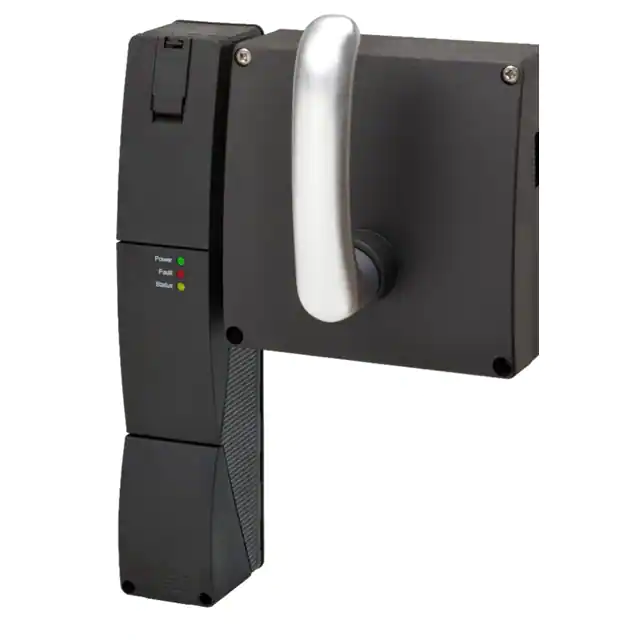

D41G2ZDGN2INTERLOCK RFID SOLENOID LOCKING |
4 |
|
规格书 |
D41G | Box | Active | RFID, Solenoid Locking | - | 250mA (DC) | 24VDC | 24VDC | 204kgf | Panel Disconnect | Connector (M12) | Manual Override | - | - | - | -10°C ~ 55°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
|
D41G2YDGN2INTERLOCK RFID SOLENOID LOCKING |
3 |
|
规格书 |
D41G | Box | Active | RFID, Solenoid Locking | - | 250mA (DC) | 24VDC | 24VDC | 204kgf | Panel Disconnect | Connector (M12) | Manual Override | - | - | - | -10°C ~ 55°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|

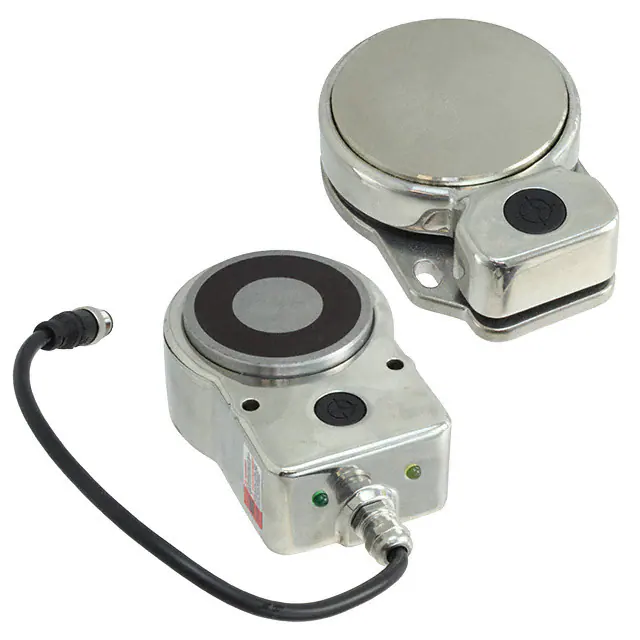

D40ML-SS1-U-M12INTERLOCK RFID DPST |
2 |
|
规格书 |
D40ML | Bulk | Active | RFID | DPST-NC | 200mA (DC) | 24VDC | 24VDC | 97kgf | Non-Contact | Cable with Connector (M12) | Status Indicator, Magnetic Latching | 1mm | 10mm | - | -25°C ~ 40°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
D4NH-1CASINTERLOCK HINGE 3PST |
9 |
|
规格书 |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO | 10A (AC), 2.5A (DC) | 120VAC, 125VDC | - | - | Shaft | Screw Terminal | - | - | - | PG13.5 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

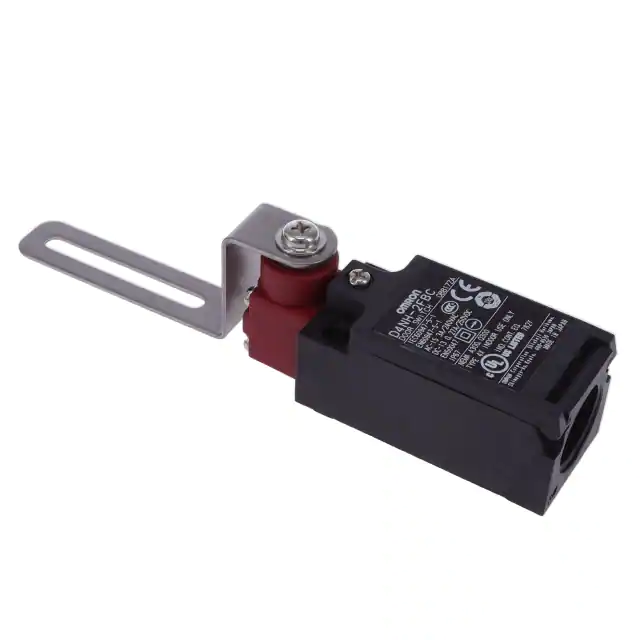

D4NH-2FBCINTERLOCK HINGE 3PST |
3 |
|
规格书 |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO (MBB) | 10A (AC), 2.5A (DC) | 120VAC, 125VDC | - | - | Arm Lever | Screw Terminal | - | - | - | G1/2 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

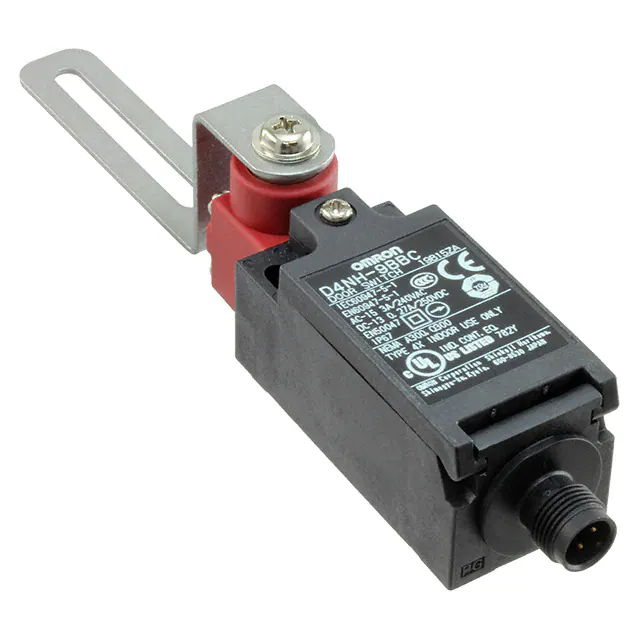

D4NH-9BBCINTERLOCK HINGE DPST |
3 |
|
规格书 |
D4NH | Bulk | Active | Hinge | DPST-NC | 10A (AC), 2.5A (DC) | 120VAC, 125VDC | - | - | Arm Lever | Screw Terminal | M12 Connector | - | - | - | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
1202570006INTERLOCK MAGNETIC DPST |
2 |
|
- |
120257 | Bulk | Active | Magnetic | DPST-NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 17mm | - | -25°C ~ 80°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
|

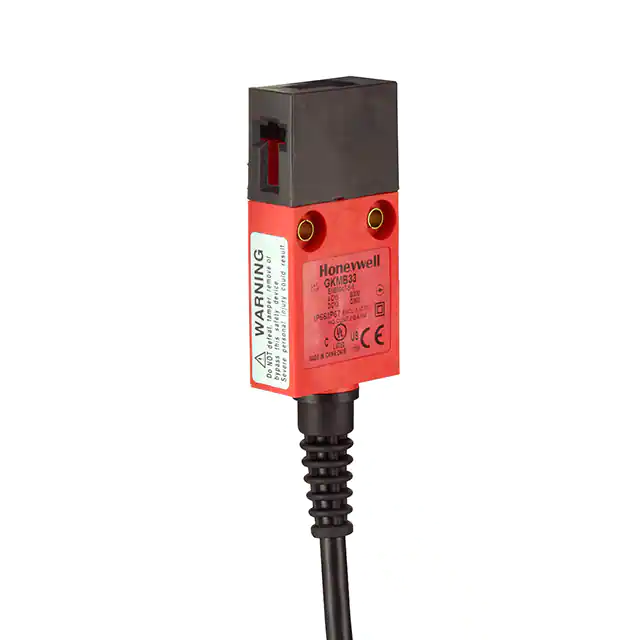

GKMB33INTERLOCK NON-LOCKING DPST |
4 |
|
规格书 |
GKM | Bulk | Active | Non-Locking | DPST-NO/NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
PXS79020INTERLOCK MAGNETIC DPST 2M |
7 |
|
规格书 |
PXS | Box | Active | Magnetic | DPST-NC | 10mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cURus |
|
|
PXS59150INTERLOCK MAGNETIC DPST 5M |
7 |
|
规格书 |
PXS | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | Status Indicator | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cURus |
|

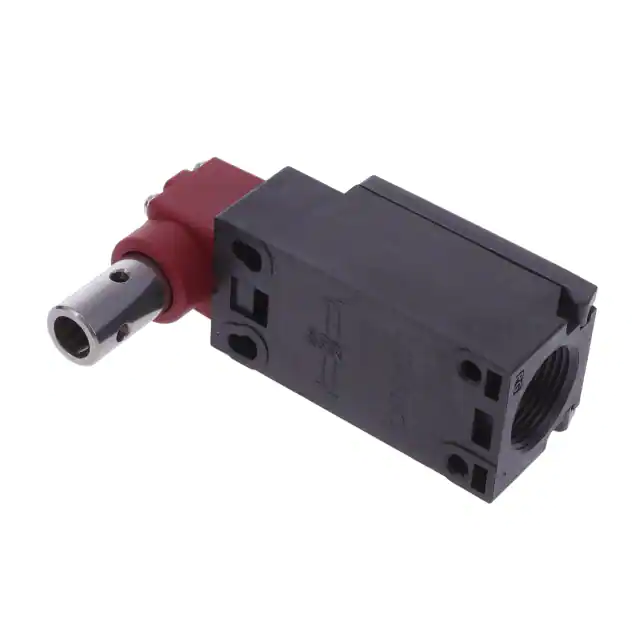

D4NH-1AASINTERLOCK HINGE DPST |
2 |
|
规格书 |
D4NH | Bulk | Active | Hinge | DPST-NO/NC | 10A (AC), 2.5A (DC) | 120VAC, 125VDC | - | - | Shaft | Screw Terminal | - | - | - | PG13.5 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

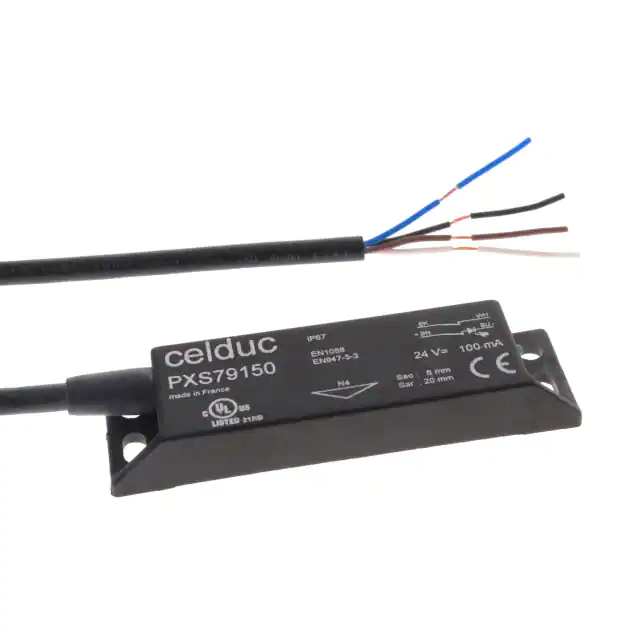

PXS79150INTERLOCK MAGNETIC DPST 5M |
3 |
|
规格书 |
PXS | Box | Active | Magnetic | DPST-NC | 10mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | Status Indicator | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cURus |
|
|
PXS59010INTERLOCK MAGNETIC DPST 10M |
10 |
|
规格书 |
PXS | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cURus |
|
|
PXS79010INTERLOCK MAGNETIC DPST 10M |
10 |
|
规格书 |
PXS | Box | Active | Magnetic | DPST-NC | 10mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cURus |
|
|
3SE52320HU22INTERLOCK HINGE DPST |
2 |
|
规格书 |
3SE5 | Bulk | Active | Hinge | DPST-NO/NC | 6A (AC), 3A (DC) | 120VAC, 24VDC | - | - | Shaft | Screw Terminal | - | - | - | - | - | IP65 - Dust Tight, Water Resistant | CCC, CE, CSA, EAC, UKCA, UL |
|
|
1202570007INTERLOCK MAGNETIC DPST |
2 |
|
- |
120257 | Bulk | Active | Magnetic | DPST-NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 17mm | - | -25°C ~ 80°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
|
1202570001INTERLOCK MAGNETIC DPST |
4 |
|
- |
120257 | Bulk | Active | Magnetic | DPST-NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 4mm | 10mm | - | -25°C ~ 80°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
