联锁开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS1L-DT44KMSRM-RINTERLOCK SOLENOID RELEASE 3PST |
3 |
|
规格书 |
HS1L | Bulk | Active | Solenoid Release | 3PST-NC x 2 | 10A (AC), 8A (DC) | 125VAC, 30VDC | 24VDC | 306kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
D4GS-N4T-5INTERLOCK NON-LOCKING 3PST |
2 |
|
规格书 |
D4GS-N | Bulk | Active | Non-Locking | 3PST-NC | 750mA (AC) | 240VAC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | - | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
HS5L-VG7Y4M-GINTERLOCK SOLENOID LOCKING 3PST |
10 |
|
规格书 |
HS5L | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + SPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
HS5L-VF44M-GINTERLOCK SOLENOID RELEASE 3PST |
3 |
|
规格书 |
HS5L | Bulk | Active | Solenoid Release | 3PST-NC + SPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
HS5L-VC7Y4M-GINTERLOCK SOLENOID LOCKING DPST |
2 |
|
规格书 |
HS5L | Bulk | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
HS5L-VG44M-GINTERLOCK SOLENOID RELEASE 3PST |
2 |
|
规格书 |
HS5L | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + SPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
D4NL-2DFA-BSINTERLOCK SOLENOID RELEASE DPST |
5 |
|
规格书 |
D4NL | Bulk | Active | Solenoid Release | DPST-NC x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
MA16AP11C6INTERLOCK MAGNETIC DPST |
2 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 2A (AC) | 230VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

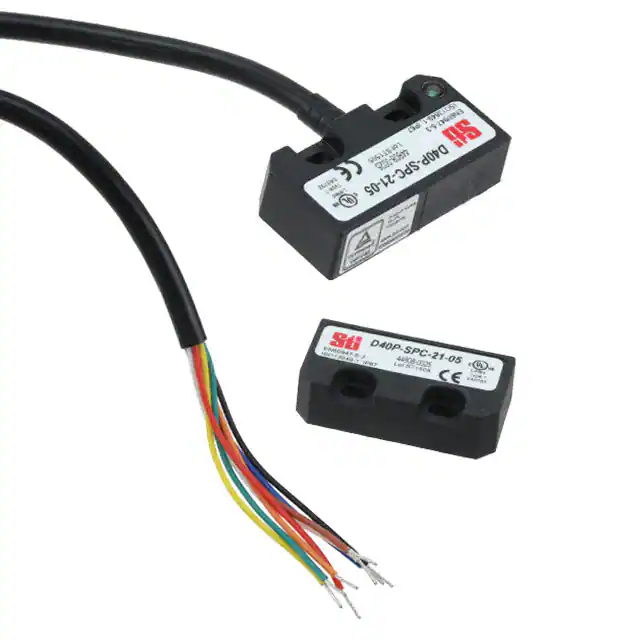

D40P-SPC-21-05INTERLOCK MAGNETIC 3PST 5M R CBL |
2 |
|
规格书 |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
HS1L-DT44KMSR-RINTERLOCK SOLENOID RELEASE 3PST |
4 |
|
规格书 |
HS1L | Bulk | Active | Solenoid Release | 3PST-NC x 2 | 10A (AC), 8A (DC) | 125VAC, 30VDC | 24VDC | 306kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | 1/2" NPT | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
HS5L-VB44LM-GINTERLOCK SOLENOID RELEASE DPST |
2 |
|
规格书 |
HS5L | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
D40P-LPC-21-10INTERLOCK MAGNETIC 3PST 10M CBL |
2 |
|
规格书 |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
MA16AP11C3INTERLOCK MAGNETIC DPST |
3 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 2A (AC) | 230VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D4NL-1DFG-BINTERLOCK SOLENOID LOCKING DPST |
17 |
|
规格书 |
D4NL | Bulk | Active | Solenoid Locking | DPST-NC x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

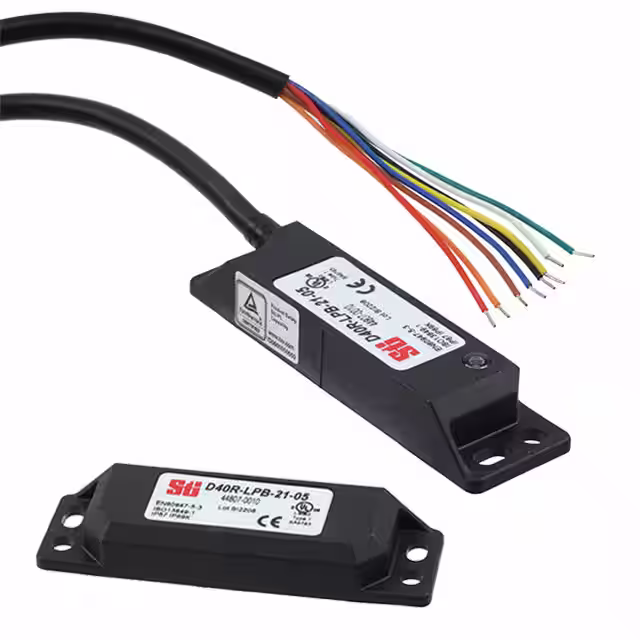

D40R-LPB-21-05INTERLOCK RFID 3PST |
2 |
|
规格书 |
D40R | Box | Active | RFID | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 10mm | 13mm | - | -25°C ~ 80°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
6025113INTERLOCK SOLENOID RELEASE 5PST |
6 |
|
规格书 |
i200 Lock | Bulk | Active | Solenoid Release | 5PST-3NC/2NO | 3A (AC/DC) | 240VAC, 24VDC | 20.4 ~ 26.4VDC | 265kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | CCC, CE, cULus |
|
D40A-1C015-FINTERLOCK MAGNETIC SPST |
3 |
|
规格书 |
D40A | Bulk | Active | Magnetic | SPST-NO | 10mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | - | 5mm | 15mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
|
D4NL-1BFA-BINTERLOCK SOLENOID RELEASE DPST |
10 |
|
规格书 |
D4NL | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

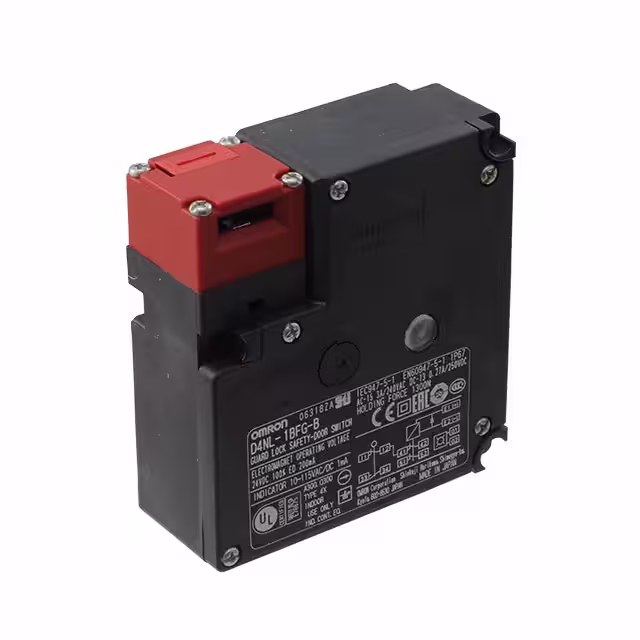

D4NL-1BFG-BINTERLOCK SOLENOID LOCKING DPST |
3 |
|
规格书 |
D4NL | Bulk | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
D4NL-1AFG-BINTERLOCK SOLENOID LOCKING DPST |
2 |
|
规格书 |
D4NL | Bulk | Active | Solenoid Locking | DPST-NO/NC (DB/DM) x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
