联锁开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-LS42DMHINTERLOCK SOLENOID LOCKING DPST |
4 |
|
规格书 |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
SI-LS42DSGINTERLOCK SOLENOID RELEASE DPST |
3 |
|
规格书 |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC x 2 | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D40R-SPB-21-05INTERLOCK RFID 3PST 5M |
3 |
|
规格书 |
D40R | Box | Active | RFID | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 10mm | 13mm | - | -25°C ~ 80°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|

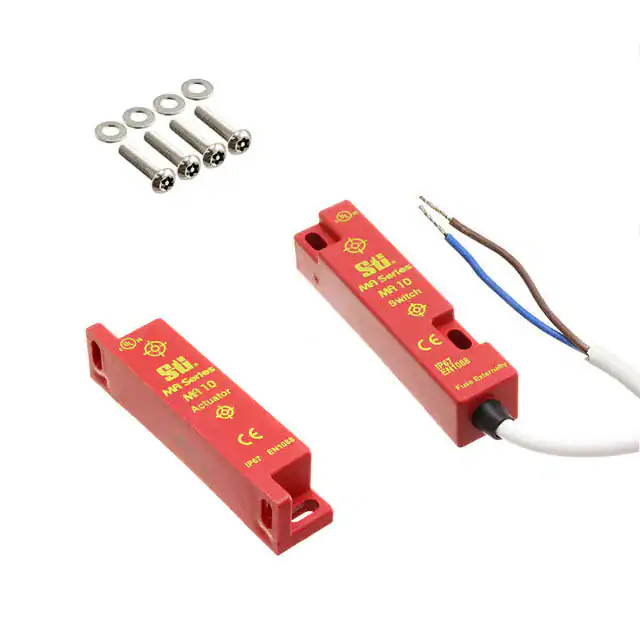

MA-10APC4INTERLOCK MAGNETIC SPST |
2 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 2A (AC) | 110VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D4NL-4AFA-BINTERLOCK SOLENOID RELEASE DPST |
2 |
|
规格书 |
D4NL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
T2007-02SCC5INTERLOCK NON-LOCKING DPST |
18 |
|
规格书 |
T2007 | Bulk | Active | Non-Locking | DPST-NC | 5A (AC), 2A (DC) | 100VAC, 24VDC | - | 612gf | Panel Disconnect | Cable with Connector (M12) | - | - | - | - | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
6027389INTERLOCK INDUCTIVE PROX 10-15MM |
3 |
|
规格书 |
IN4000 | Bulk | Active | Inductive | - | - | - | 24VDC | - | Non-Contact | Connector (M12) | Staus Indicator | 10 ~ 15mm | 30mm | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

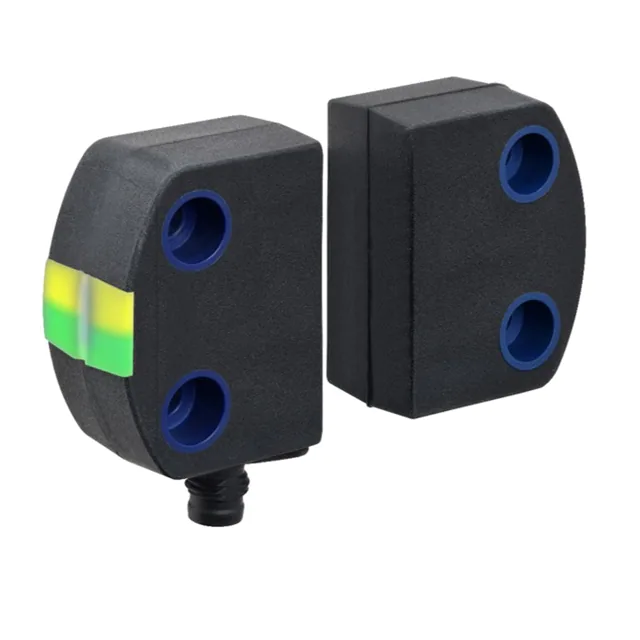

D41D1CDN1INTERLOCK RFID SENSOR |
2 |
|
规格书 |
D41D | Box | Active | RFID | - | 250mA (DC) | 24VDC | 24VDC | - | Non-Contact | Connector (M8) | Status Indicator | 10mm | 18mm | - | -25°C ~ 65°C | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
D4NL-2AFA-B4INTERLOCK SOLENOID RELEASE 3PST |
4 |
|
规格书 |
D4NL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
SI-LS42DSJINTERLOCK SOLENOID RELEASE 3PST |
3 |
|
规格书 |
SI-LS42 | Bulk | Active | Solenoid Release | 3PST-NC + SPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

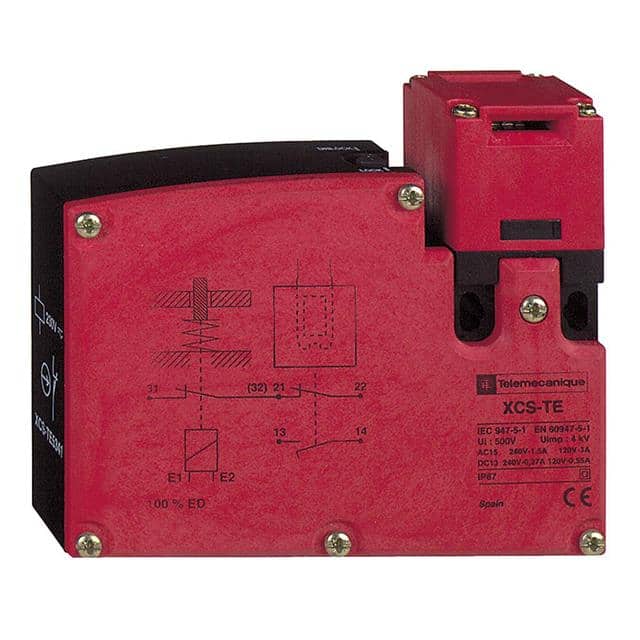

XCSTE7512INTERLOCK SOLENOID LOCKING DPST |
2 |
|
规格书 |
XCST | Box | Active | Solenoid Locking | DPST-NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
D40R-SPB-21-10INTERLOCK RFID 3PST |
4 |
|
规格书 |
D40R | Box | Active | RFID | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 10mm | 13mm | - | -25°C ~ 80°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
|
SI-LS42DMMIINTERLOCK SOLENOID LOCKING 3PST |
2 |
|
规格书 |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + SPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

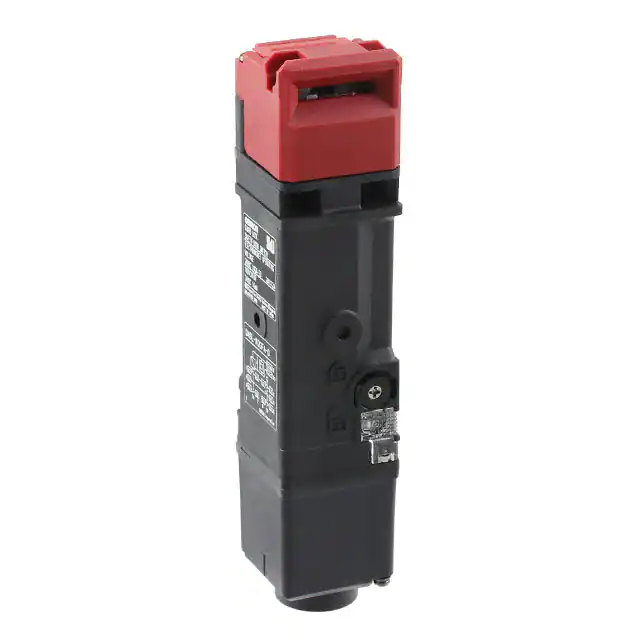

D4SL-N2GFA-DINTERLOCK SOLENOID RELEASE 3PST |
2 |
|
规格书 |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-NC + DPST-NO/NC | 1.5A (AC), 220mA (DC) | 120VAC, 125VDC | 24VDC | 6kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cURus, TUV |
|

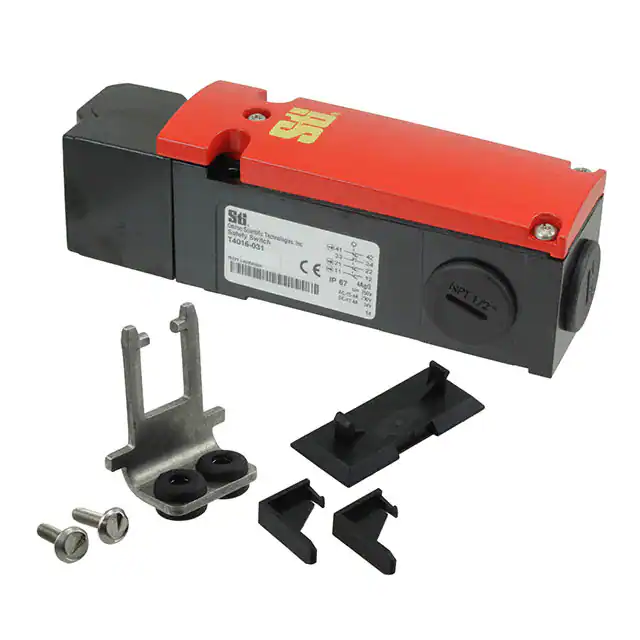

T4016-031TMINTERLOCK NON-LOCKING 3PST |
2 |
|
规格书 |
T4016 | Bulk | Active | Non-Locking | 3PST-NC + SPST-NO | 4A (AC/DC) | 230VAC, 24VDC | - | 5kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT x3 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

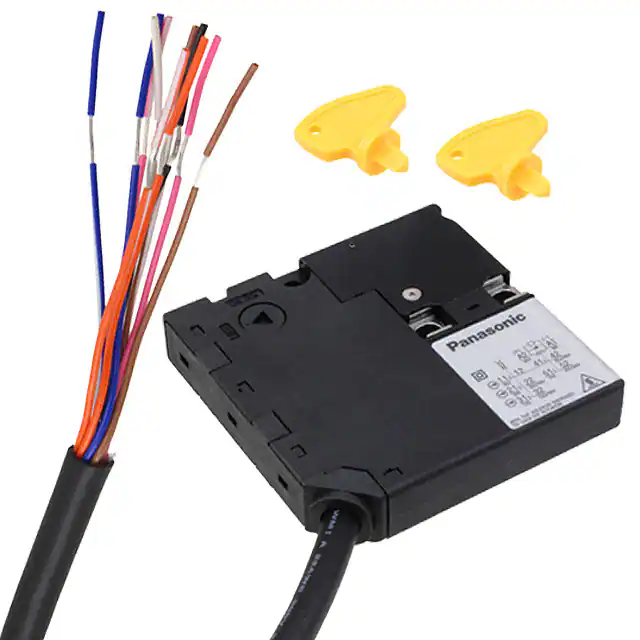

SG-B1-MA-G5INTERLOCK SOLENOID RELEASE DPST |
4 |
|
规格书 |
SG-B1 | Bulk | Active | Solenoid Release | DPST-NC | 2A (AC/DC) | 125VAC, 30VDC | 24VDC | 51kgf | Panel Disconnect | Cable Leads | Manual Override | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
MA16DP20C3INTERLOCK MAGNETIC DPST |
6 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | DPST-NC | 1A (DC) | 30VDC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
XCSB713INTERLOCK SOLENOID LOCKING 3PST |
2 |
|
规格书 |
XCSB | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

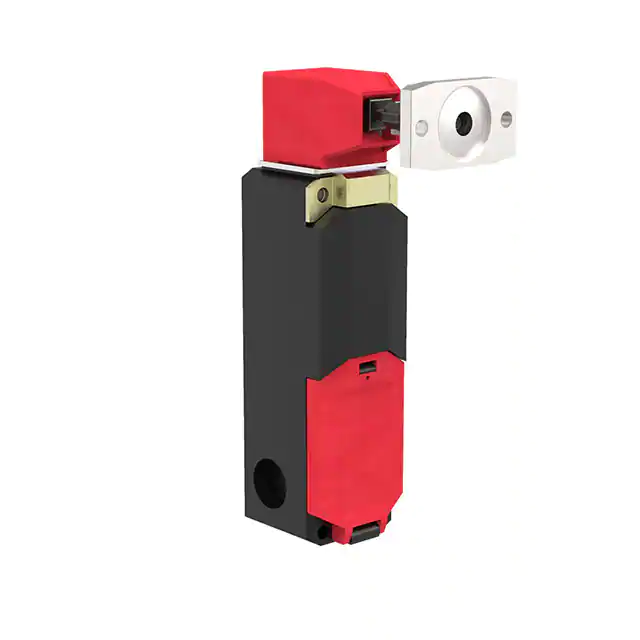

SI-LS42DMMIFINTERLOCK SOLENOID LOCKING 3PST |
6 |
|
规格书 |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + SPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

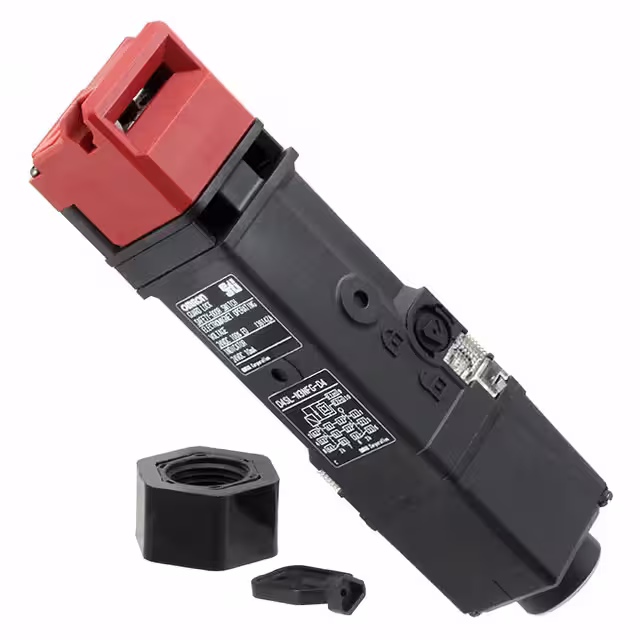

D4SL-N3NFG-D4INTERLOCK SOLENOID LOCKING 3PST |
2 |
|
规格书 |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO x 2 | 1.5A (AC), 220mA (DC) | 120VAC, 125VDC | 24VDC | 6kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | 1/2" NPT | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cURus, TUV |
