固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82144B2682K000FIXED IND 6.8UH 2.75A 95 MOHM TH EPCOS - TDK Electronics |
648 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 2.75 A | 3.5A | Unshielded | 95mOhm Max | 50 @ 2.52MHz | 40MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

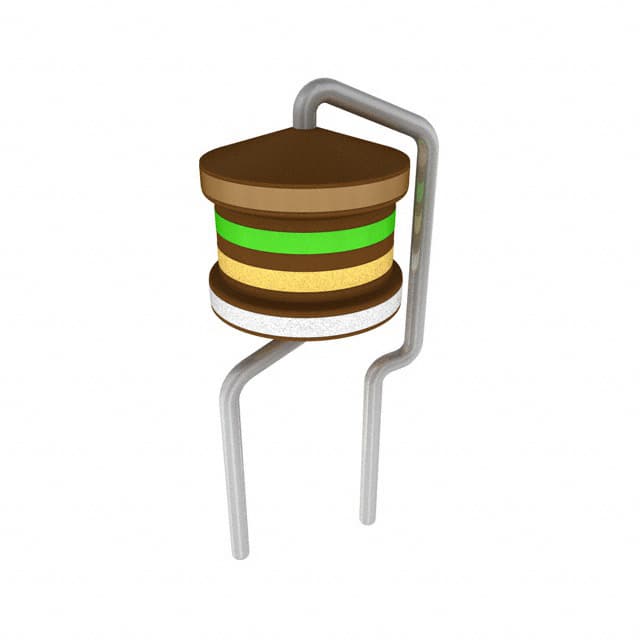

B82144B2152K000FIXED IND 1.5UH 4.1A 45 MOHM TH EPCOS - TDK Electronics |
157 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 4.1 A | 7.2A | Unshielded | 45mOhm Max | 60 @ 2.52MHz | 170MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

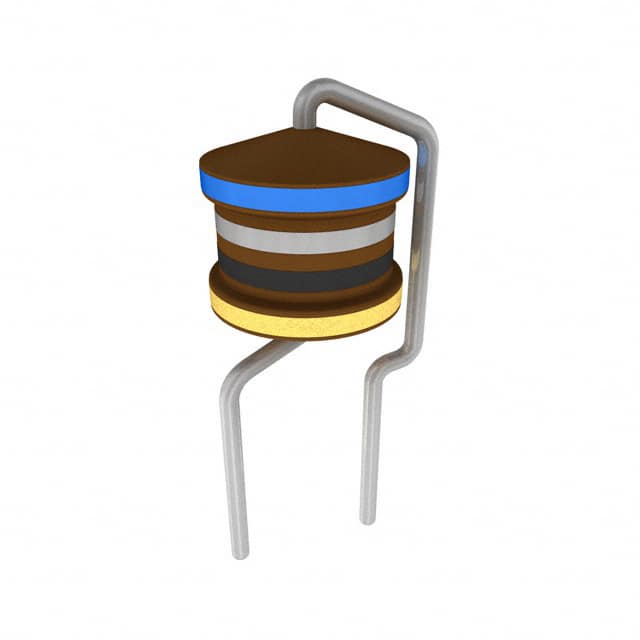

B82144B2683J000FIXED IND 68UH 1.5A 350 MOHM TH EPCOS - TDK Electronics |
856 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 1.5 A | 1.15A | Unshielded | 350mOhm Max | 40 @ 79.6kHz | 6.1MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144B2103K000FIXED IND 10UH 2.45A 120 MOHM TH EPCOS - TDK Electronics |
837 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.45 A | 2.85A | Unshielded | 120mOhm Max | 40 @ 252kHz | 22MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144B2333J000FIXED IND 33UH 1.9A 220 MOHM TH EPCOS - TDK Electronics |
803 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 1.9 A | 1.65A | Unshielded | 220mOhm Max | 40 @ 252kHz | 9MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

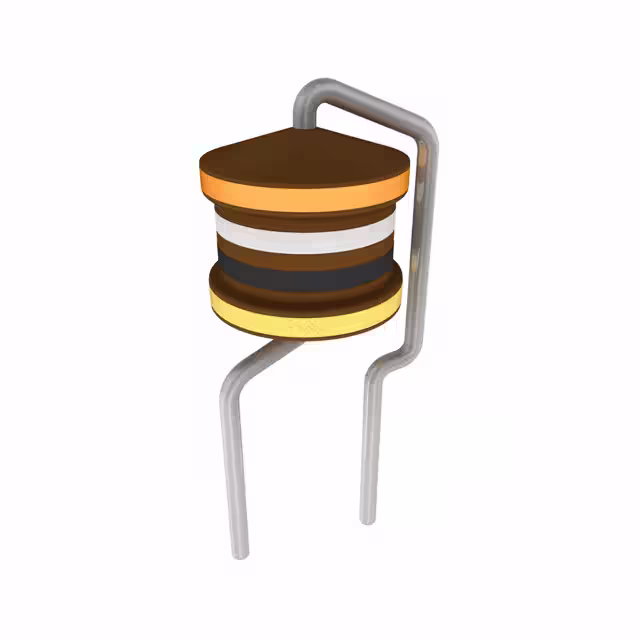

B82144B2393J000FIXED IND 39UH 1.75A 250 MOHM TH EPCOS - TDK Electronics |
736 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±5% | 1.75 A | 1.5A | Unshielded | 250mOhm Max | 40 @ 252kHz | 8.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

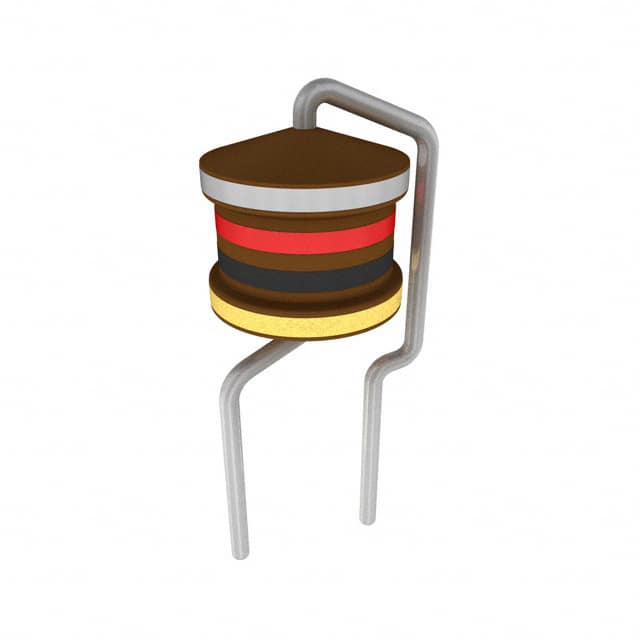

B82144B2823J000FIXED IND 82UH 1.4A 400 MOHM TH EPCOS - TDK Electronics |
617 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 1.4 A | 1.1A | Unshielded | 400mOhm Max | 40 @ 79.6kHz | 6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144B2474J000FIXED IND 470UH 600MA 2.02OHM TH EPCOS - TDK Electronics |
463 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 600 mA | 440mA | Unshielded | 2.02Ohm Max | 40 @ 79.6kHz | 2.3MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82472G4682M000FIXED IND 6.8UH 2.05A 55MOHM SMD EPCOS - TDK Electronics |
122 |
|
规格书 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.05 A | 1.4A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
B82562N4102N000FIXED IND 1UH 4.8A 11 MOHM SMD EPCOS - TDK Electronics |
990 |
|
规格书 |
CLF6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.8 A | 8A | Shielded | 11mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
