固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82477P4334M000FIXED IND 330UH 1.02A 460MOHM SM EPCOS - TDK Electronics |
424 |
|
规格书 |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.02 A | 1.15A | Shielded | 460mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
B82464P4224M000FIXED IND 220UH 700MA 440MOHM SM EPCOS - TDK Electronics |
77 |
|
规格书 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | 750mA | Shielded | 440mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464P4104M000FIXED IND 100UH 1.05A 220MOHM SM EPCOS - TDK Electronics |
750 |
|
规格书 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.05 A | 1.15A | Shielded | 220mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82477R4683M100FIXED IND 68UH 2.8A 85 MOHM SMD EPCOS - TDK Electronics |
96 |
|
规格书 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.8 A | 3.55A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|

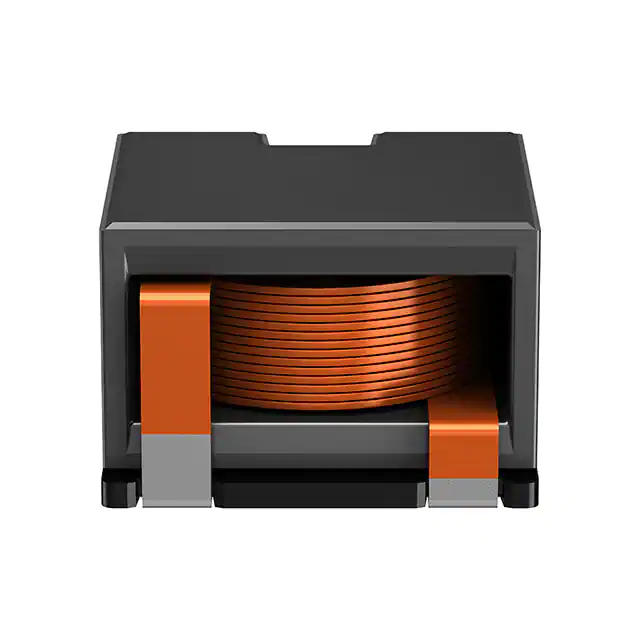

B82559B6682A016FIXED IND 6.8UH 14.4A 6.2MOHM SM EPCOS - TDK Electronics |
46 |
|
规格书 |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 14.4 A | 18.7A | Shielded | 6.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.650" W (17.30mm x 16.50mm) | 0.333" (8.45mm) |
|
B82559B5472A027FIXED IND 4.7UH 37A 1.39MOHM SMD EPCOS - TDK Electronics |
73 |
|
规格书 |
ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 37 A | 53.5A | Shielded | 1.39mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.589" (14.95mm) |
|

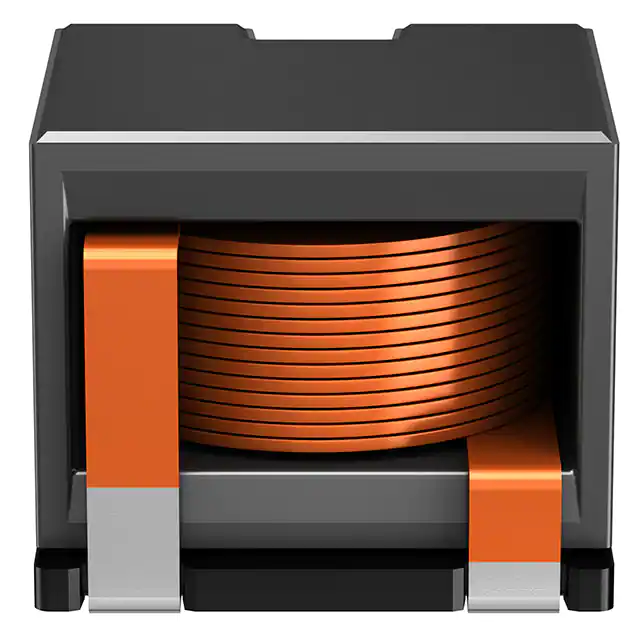

B82559A5332A024FIXED IND 3.3UH 40.3A 1 MOHM SMD EPCOS - TDK Electronics |
27 |
|
规格书 |
ERU24 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 40.3 A | 58.7A | Shielded | 1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.972" L x 0.898" W (24.70mm x 22.80mm) | 0.618" (15.70mm) |
|

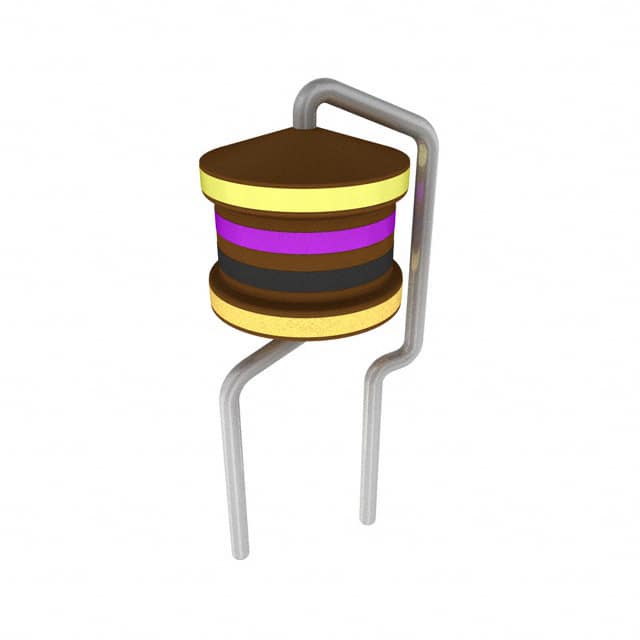

B78148E1473J000FIXED IND 47UH 950MA 680 MOHM TH EPCOS - TDK Electronics |
712 |
|
规格书 |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 950 mA | 870mA | Unshielded | 680mOhm Max | 40 @ 796kHz | 8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|

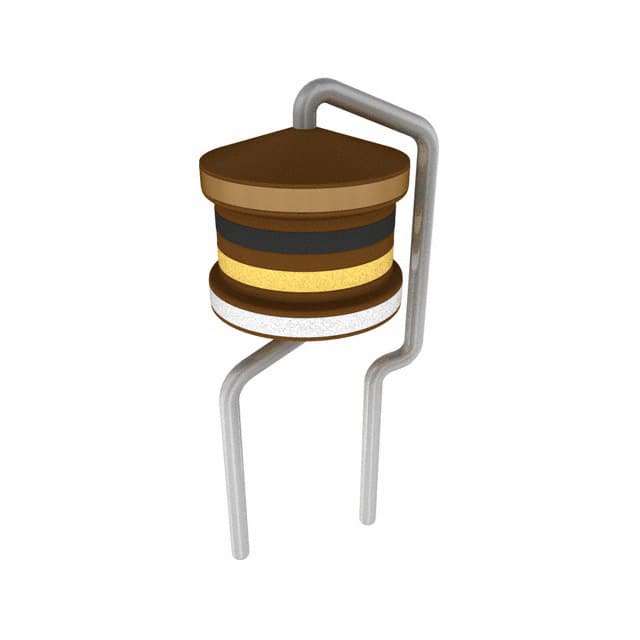

B78148E1102K000FIXED IND 1UH 4.15A 38 MOHM TH EPCOS - TDK Electronics |
515 |
|
规格书 |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 4.15 A | 5.8A | Unshielded | 38mOhm Max | 60 @ 7.96MHz | 260MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|

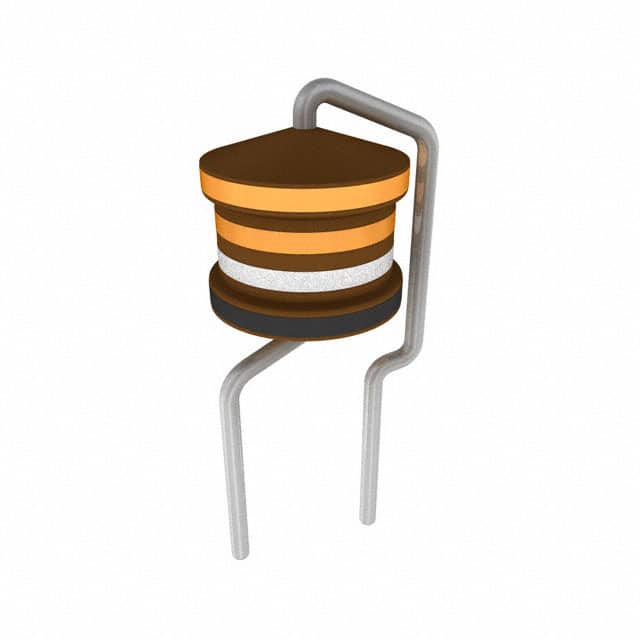

B78148E1331M000FIXED IND 330NH 5.3A 23 MOHM TH EPCOS - TDK Electronics |
660 |
|
规格书 |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 5.3 A | 10.1A | Unshielded | 23mOhm Max | 60 @ 7.96MHz | 480MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
