固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78108S1393K000FIXED IND 39UH 470MA 1.02 OHM TH EPCOS - TDK Electronics |
9,642 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 470 mA | - | Unshielded | 1.02Ohm Max | 50 @ 2.52MHz | 8MHz | - | - | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1102K000FIXED IND 1UH 1.2A 160 MOHM TH EPCOS - TDK Electronics |
8,575 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 1.2 A | - | Unshielded | 160mOhm Max | 55 @ 7.96MHz | 205MHz | - | - | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

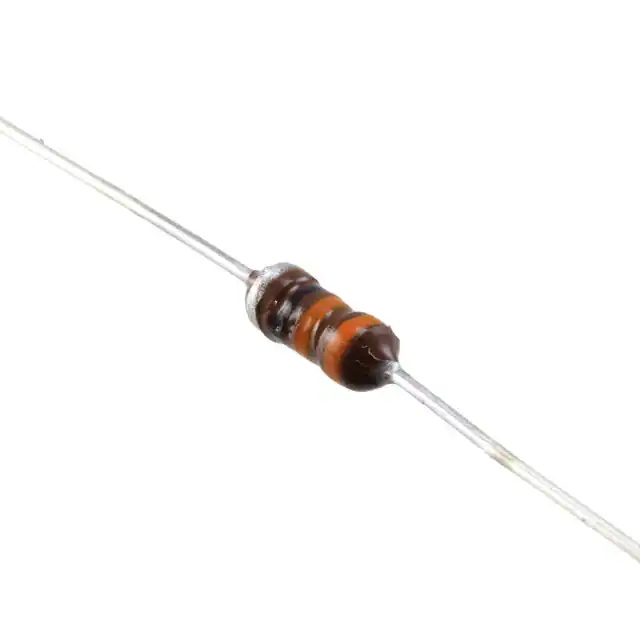

B78108S1333K000FIXED IND 33UH 500MA 920 MOHM TH EPCOS - TDK Electronics |
7,828 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 500 mA | - | Unshielded | 920mOhm Max | 55 @ 2.52MHz | 9MHz | - | - | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
-B78108S1103K000.jpg)
|

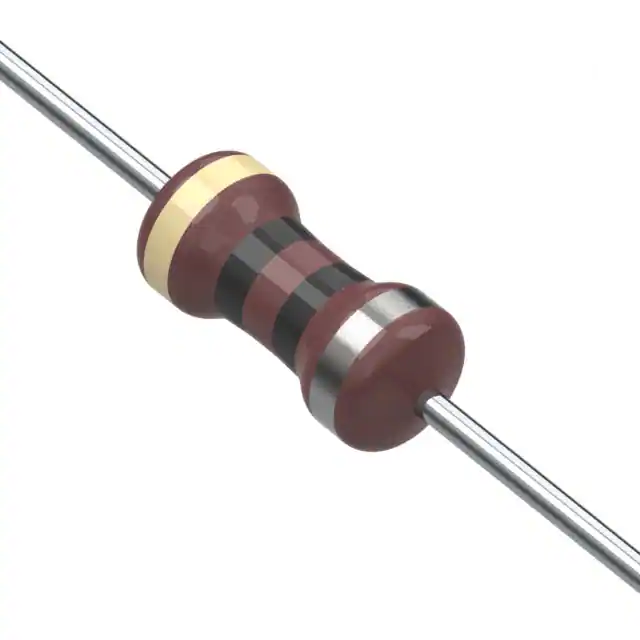

B78108S1103K000FIXED IND 10UH 680MA 490 MOHM TH EPCOS - TDK Electronics |
2,868 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 680 mA | - | Unshielded | 490mOhm Max | 70 @ 2.52MHz | 35MHz | - | - | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

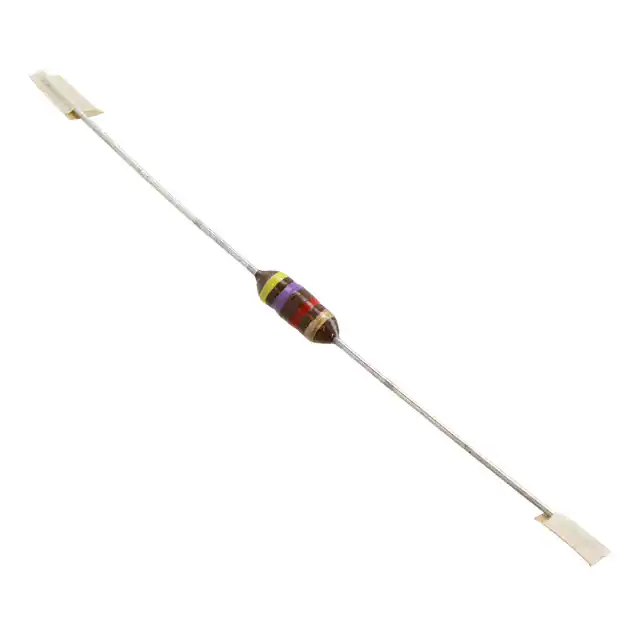

B78108S1475J000FIXED IND 4.7MH 55MA 78 OHM TH EPCOS - TDK Electronics |
53,178 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 55 mA | - | Unshielded | 78Ohm Max | 35 @ 252kHz | 700kHz | - | - | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1474J000FIXED IND 470UH 170MA 7.9 OHM TH EPCOS - TDK Electronics |
46,873 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 170 mA | - | Unshielded | 7.9Ohm Max | 70 @ 796kHz | 2.2MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1224J000FIXED IND 220UH 250MA 3.3 OHM TH EPCOS - TDK Electronics |
34,719 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 250 mA | - | Unshielded | 3.3Ohm Max | 70 @ 796kHz | 3.7MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1105J000FIXED IND 1MH 130MA 14 OHM TH EPCOS - TDK Electronics |
34,537 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 130 mA | - | Unshielded | 14Ohm Max | 50 @ 252kHz | 1.6MHz | - | - | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

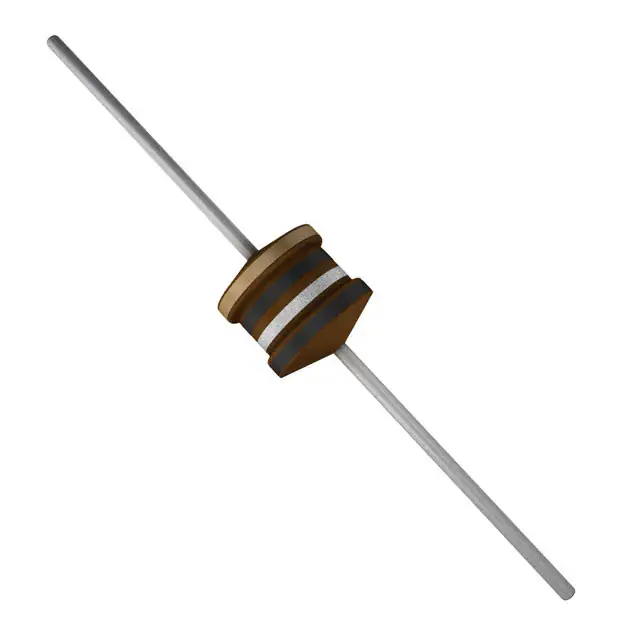

B78108E1101M000FIXED IND 100NH 7.3A 15 MOHM TH EPCOS - TDK Electronics |
31,734 |
|
规格书 |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 7.3 A | 17A | Unshielded | 15mOhm Max | 50 @ 7.96MHz | 700MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

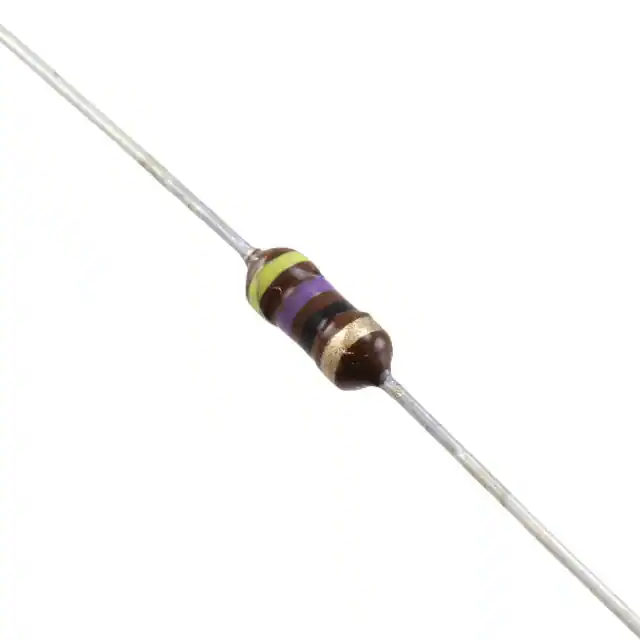

B78108S1473J000FIXED IND 47UH 450MA 1.1 OHM TH EPCOS - TDK Electronics |
27,587 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 450 mA | - | Unshielded | 1.1Ohm Max | 45 @ 2.52MHz | 7.5MHz | - | - | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
