上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82462G4334M000FIXED IND 330UH 270MA 2.3OHM SMD EPCOS - TDK Electronics |
16,907 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 270 mA | 220mA | Shielded | 2.3Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4152M000FIXED IND 1.5UH 3.1A 20 MOHM SMD EPCOS - TDK Electronics |
10,567 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.1 A | 3.6A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4222M000FIXED IND 2.2UH 2.55A 25MOHM SMD EPCOS - TDK Electronics |
5,674 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.55 A | 2.6A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4333M000FIXED IND 33UH 850MA 230MOHM SMD EPCOS - TDK Electronics |
3,776 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 850 mA | 720mA | Shielded | 230mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
B82462G4332M000FIXED IND 3.3UH 2.3A 31 MOHM SMD EPCOS - TDK Electronics |
2,738 |
|
规格书 |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.3 A | 2.1A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|

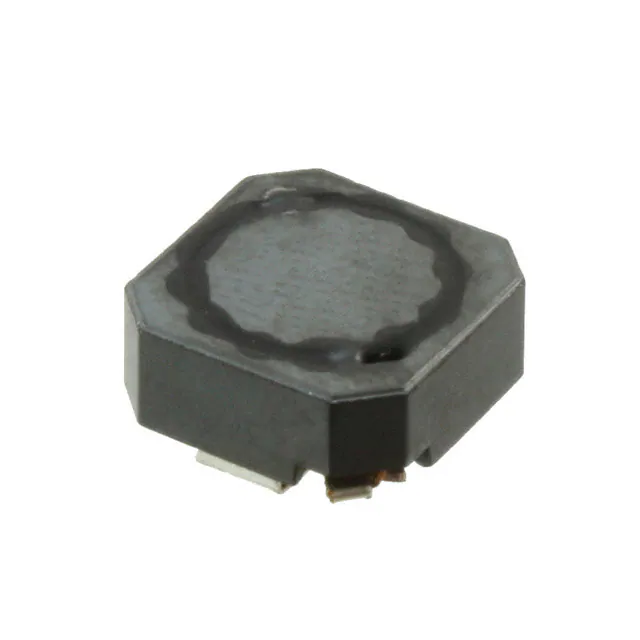

B82464G4153M000FIXED IND 15UH 2.75A 40 MOHM SMD EPCOS - TDK Electronics |
22,230 |
|
规格书 |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.75 A | 3.1A | Shielded | 40mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

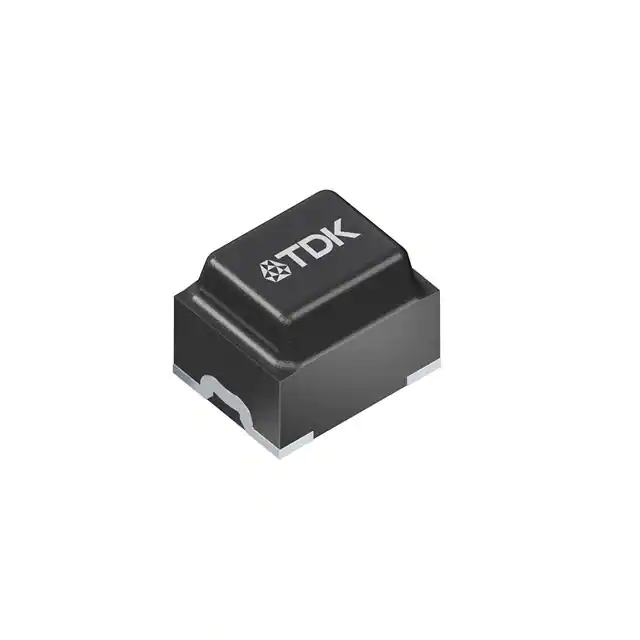

CLT32-R11CLT32-R11 110NH EPCOS - TDK Electronics |
14,410 |
|
规格书 |
CLT32 | 4-SMD | Tape & Reel (TR) | Active | Molded | Metal | 110 nH | ±20% | 20 A | 29A | Shielded | 1.9mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 4-SMD | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
B82464G4472M000FIXED IND 4.7UH 4.9A 15 MOHM SMD EPCOS - TDK Electronics |
2,368 |
|
规格书 |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.9 A | 5.2A | Shielded | 15mOhm Max | - | 37MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464G4682M000FIXED IND 6.8UH 4.3A 20 MOHM SMD EPCOS - TDK Electronics |
1,689 |
|
规格书 |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.3 A | 4.6A | Shielded | 20mOhm Max | - | 28MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
CLT32-42NCLT32-42N 42NH EPCOS - TDK Electronics |
990 |
|
规格书 |
CLT32 | 4-SMD | Tape & Reel (TR) | Active | Molded | Metal | 42 nH | ±20% | 28 A | 54A | Shielded | 1mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 4-SMD | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
