固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

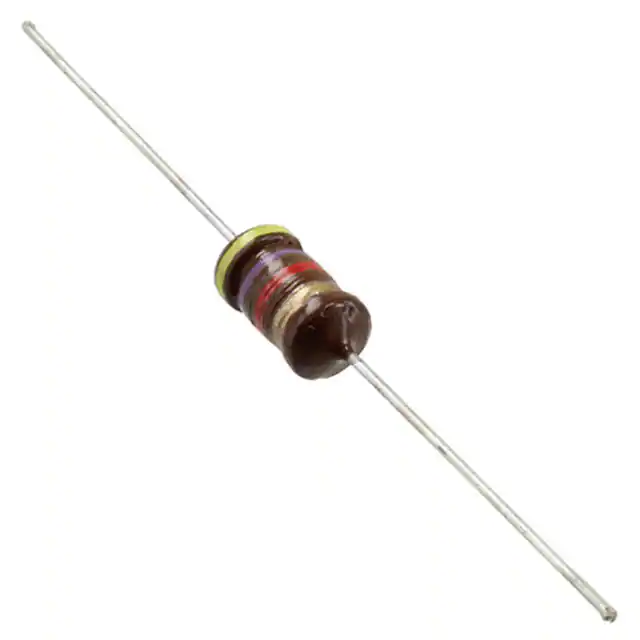

B82145A1475J000FIXED IND 4.7MH 170MA 18 OHM TH EPCOS - TDK Electronics |
12,552 |
|
规格书 |
HLBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 170 mA | - | Unshielded | 18Ohm Max | 60 @ 252kHz | 500kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | - |
|
B82144F2184J000FIXED IND 180UH 950MA 0.785OHM EPCOS - TDK Electronics |
2,156 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 950 mA | 720mA | Unshielded | 785mOhm Max | 40 @ 79.6kHz | 4MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82498F1182J000FIXED IND 1.8UH 190MA 980MOHM SM EPCOS - TDK Electronics |
2,335 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 190 mA | - | Unshielded | 980mOhm Max | 20 @ 7.96MHz | 350MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82144F1107J000FIXED IND 100MH 20MA 490OHM TH EPCOS - TDK Electronics |
1,770 |
|
规格书 |
B82144F1 | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±5% | 20 mA | - | Unshielded | 490Ohm Max | 40 @ 79.6kHz | 180kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82432T1683K000FIXED IND 68UH 250MA 2.5 OHM SMD EPCOS - TDK Electronics |
5,231 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 250 mA | - | Unshielded | 2.5Ohm Max | 10 @ 2.52MHz | 8MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
B82432C1682K000FIXED IND 6.8UH 360MA 780MOHM SM EPCOS - TDK Electronics |
3,375 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 360 mA | - | Unshielded | 780mOhm Max | 40 @ 7.96MHz | 35MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1154K000FIXED IND 150UH 160MA 6 OHM SMD EPCOS - TDK Electronics |
31,135 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 160 mA | - | Unshielded | 6Ohm Max | 20 @ 796kHz | 6.1MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1152K000FIXED IND 1.5UH 1.15A 110MOHM SM EPCOS - TDK Electronics |
18,357 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 1.15 A | - | Unshielded | 110mOhm Max | 10 @ 7.96MHz | 80MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1824K000FIXED IND 820UH 80MA 27 OHM SMD EPCOS - TDK Electronics |
6,392 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 80 mA | - | Unshielded | 27Ohm Max | 20 @ 796kHz | 2.4MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1682K000FIXED IND 6.8UH 700MA 300MOHM SM EPCOS - TDK Electronics |
18,959 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 700 mA | - | Unshielded | 300mOhm Max | 10 @ 7.96MHz | 36MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
