固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422H1224J000FIXED IND 220UH 100MA 10.9OHM SM EPCOS - TDK Electronics |
3,738 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 100 mA | - | Unshielded | 10.9Ohm Max | 20 @ 796kHz | 5.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

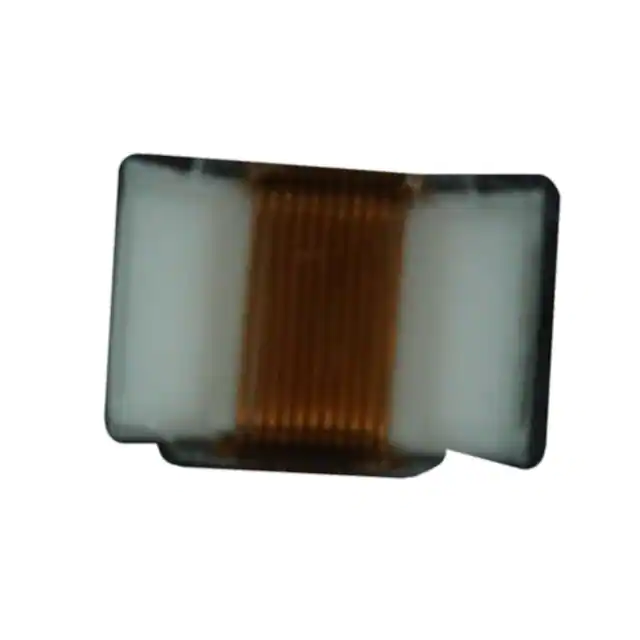

B82498F3121J000FIXED IND 120NH 440MA 310MOHM SM EPCOS - TDK Electronics |
2,484 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 440 mA | - | Unshielded | 310mOhm Max | 50 @ 250MHz | 1.25GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

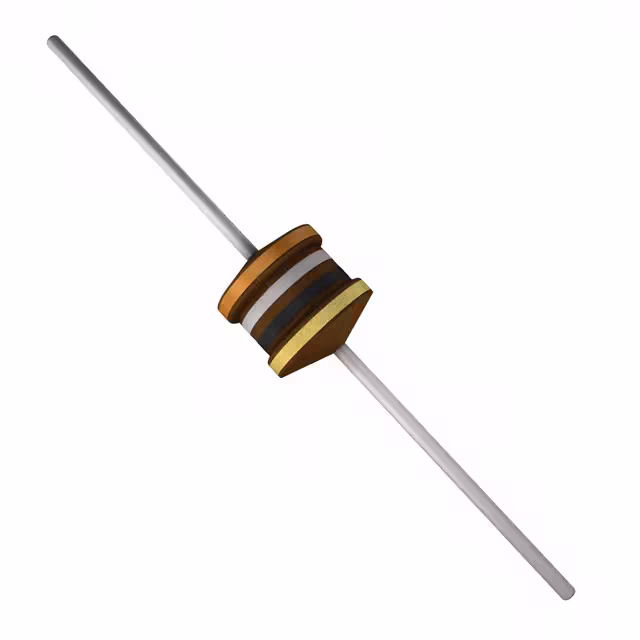

B82144F2393J000FIXED IND 39UH 1.75A 0.25OHM TH EPCOS - TDK Electronics |
1,218 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±5% | 1.75 A | 1.5A | Unshielded | 250mOhm Max | 40 @ 252kHz | 8.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

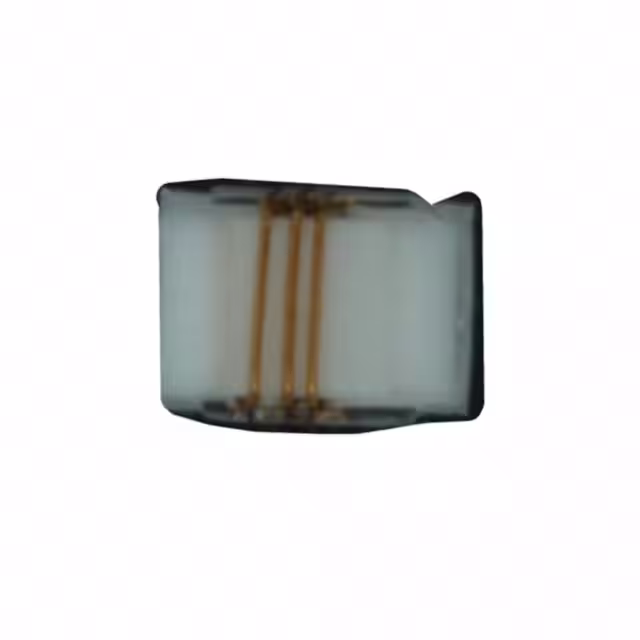

B82498F3120J000FIXED IND 12NH 700MA 90 MOHM SMD EPCOS - TDK Electronics |
5,557 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 700 mA | - | Unshielded | 90mOhm Max | 50 @ 500MHz | 4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

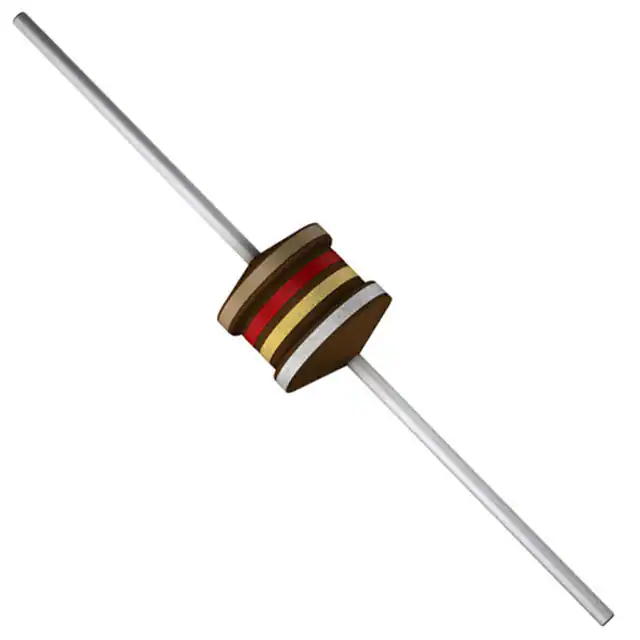

B82144F2102K000FIXED IND 1UH 4.45A 0.043OHM TH EPCOS - TDK Electronics |
5,906 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 4.45 A | 7.7A | Unshielded | 43mOhm Max | 50 @ 2.52MHz | 200MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

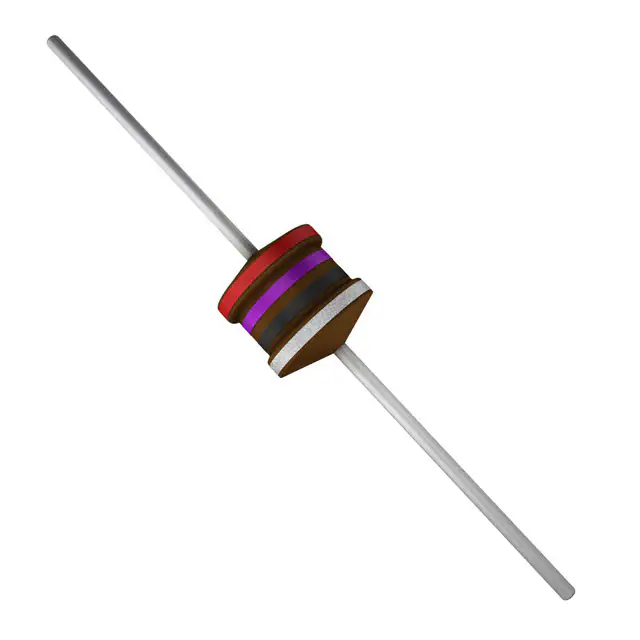

B82144F2273K000FIXED IND 27UH 2A 0.2OHM TH EPCOS - TDK Electronics |
2,941 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 2 A | 1.8A | Unshielded | 200mOhm Max | 40 @ 252kHz | 9.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82144F2472K000FIXED IND 4.7UH 3.05A 0.08OHM TH EPCOS - TDK Electronics |
2,804 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 3.05 A | 4A | Unshielded | 80mOhm Max | 50 @ 2.52MHz | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82144F2473J000FIXED IND 47UH 1.7A 0.27OHM TH EPCOS - TDK Electronics |
2,746 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 1.7 A | 1.4A | Unshielded | 270mOhm Max | 40 @ 252kHz | 7.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82141A1224J000FIXED IND 220UH 130MA 5.8 OHM TH EPCOS - TDK Electronics |
15,623 |
|
规格书 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 130 mA | - | Unshielded | 5.8Ohm Max | 60 @ 796kHz | 3.8MHz | - | -55°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
B82144F2683J000FIXED IND 68UH 1.5A 0.35OHM TH EPCOS - TDK Electronics |
11,291 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 1.5 A | 1.15A | Unshielded | 350mOhm Max | 40 @ 79.6kHz | 6.1MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
