固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

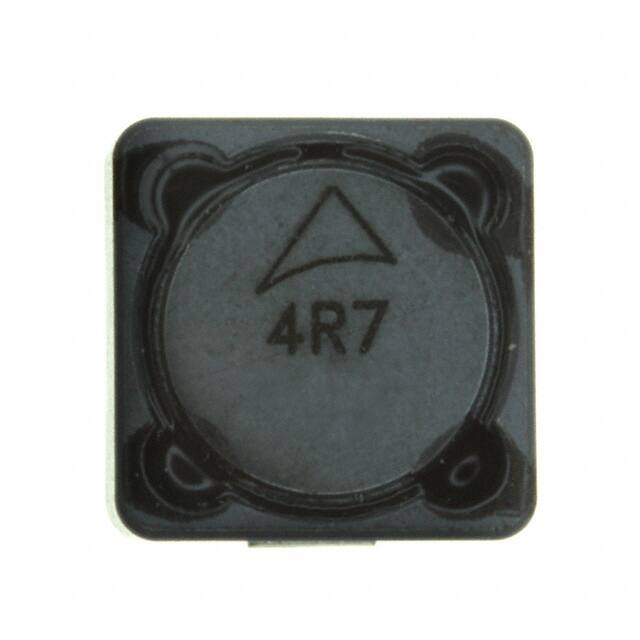

B82464Z4472MFIXED IND 4.7UH 4.9A 15 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.9 A | 5.2A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82464Z4474MFIXED IND 470UH 500MA 930MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 500 mA | 550mA | Shielded | 930mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

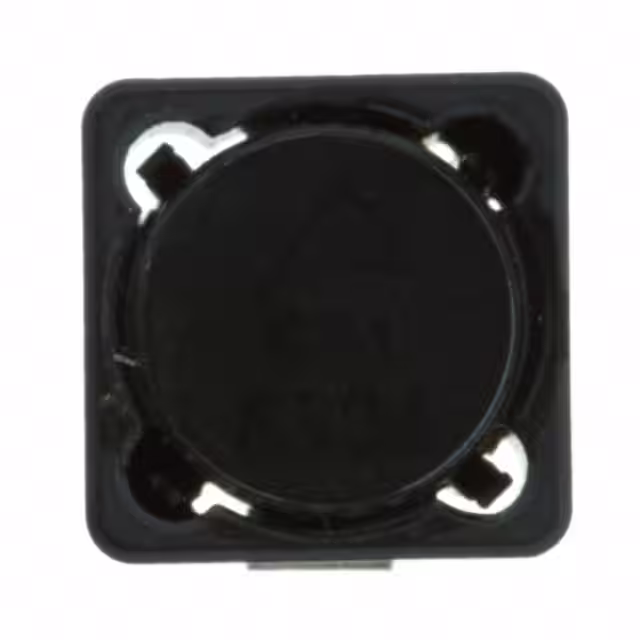

B82464Z4684MFIXED IND 680UH 420MA 1.3OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 460mA | Shielded | 1.3Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

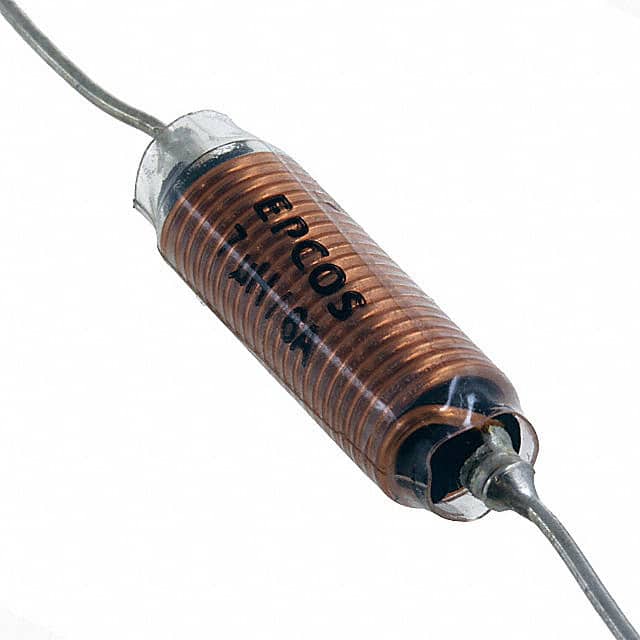

B82111E0000C020FIXED IND 7UH 6A 20 MOHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 7 µH | ±20% | 6 A | - | Unshielded | 20mOhm | - | 180MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - |
|
|
B78108T1102J009FIXED IND 1UH 630MA 250 MOHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
MCC | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 630 mA | - | Unshielded | 250mOhm Max | 35 @ 25.2MHz | 180MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1103J000FIXED IND 10UH 230MA 1.7 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 230 mA | - | Unshielded | 1.7Ohm Max | 50 @ 7.96MHz | 60MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1104J000FIXED IND 100UH 85MA 12.5 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 85 mA | - | Unshielded | 12.5Ohm Max | 60 @ 2.52MHz | 11MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1153J009FIXED IND 15UH 185MA 2.7 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
MCC | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 185 mA | - | Unshielded | 2.7Ohm Max | 55 @ 2.52MHz | 45MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1183J000FIXED IND 18UH 175MA 2.9 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
MCC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 175 mA | - | Unshielded | 2.9Ohm Max | 55 @ 2.52MHz | 40MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1222J000FIXED IND 2.2UH 520MA 350MOHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 520 mA | - | Unshielded | 350mOhm Max | 40 @ 7.96MHz | 120MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
