固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
B82442A1225K000FIXED IND 2.2MH 55MA 28 OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 55 mA | - | Unshielded | 28Ohm Max | 30 @ 252kHz | 1.2MHz | AEC-Q200 | -55°C ~ 125°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1472K000FIXED IND 4.7UH 950MA 88MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 950 mA | - | Unshielded | 88mOhm Max | 10 @ 7.96MHz | 29MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442A1473K000FIXED IND 47UH 340MA 680MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 340 mA | - | Unshielded | 680mOhm Max | 10 @ 2.52MHz | 8.5MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

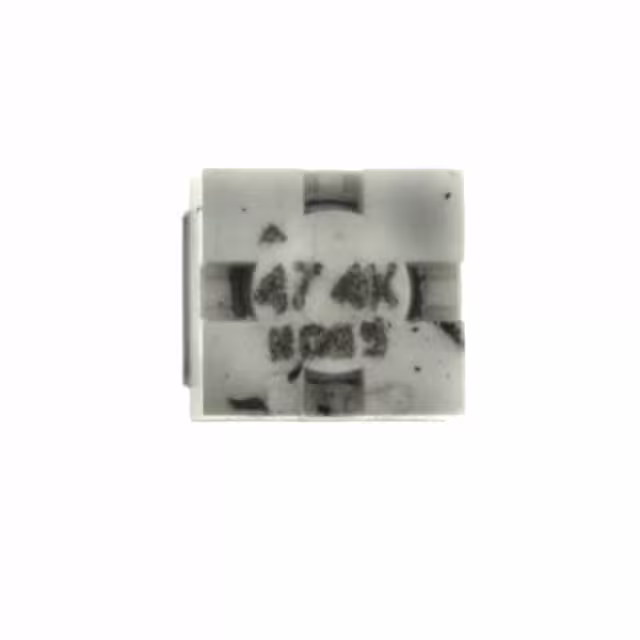

B82442A1474K000FIXED IND 470UH 120MA 5.6OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 120 mA | - | Unshielded | 5.6Ohm Max | 20 @ 796kHz | 2.6MHz | AEC-Q200 | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

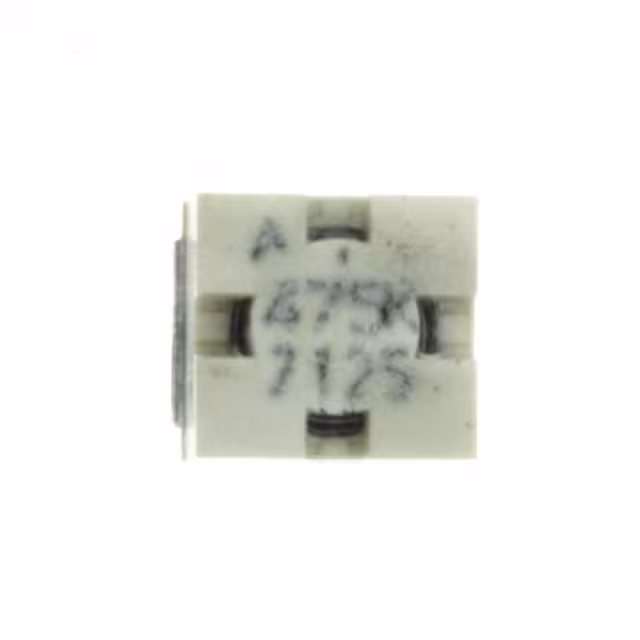

B82442A1475K000FIXED IND 4.7MH 36MA 62.4OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 36 mA | - | Unshielded | 62.4Ohm Max | 30 @ 252kHz | 900kHz | AEC-Q200 | -55°C ~ 125°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

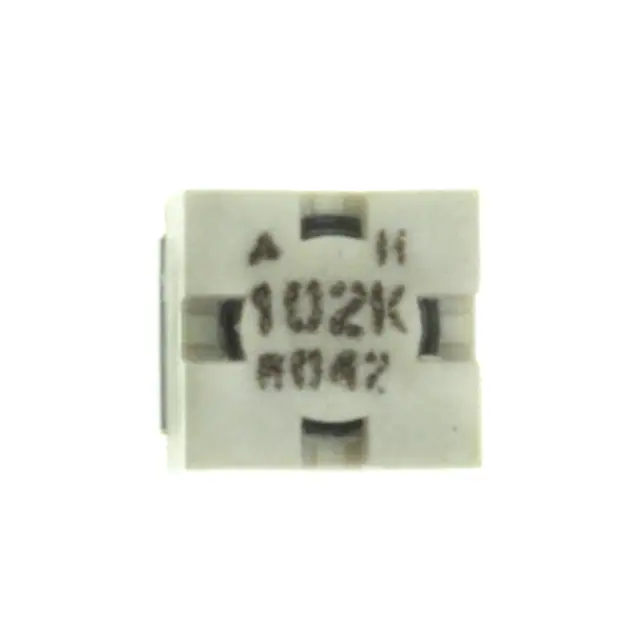

B82442H1102K000FIXED IND 1UH 2.5A 24 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 2.5 A | - | Unshielded | 24mOhm Max | 10 @ 7.96MHz | 95MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442H1104K000FIXED IND 100UH 350MA 1.28OHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 350 mA | - | Unshielded | 1.28Ohm Max | 20 @ 796kHz | 6MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442H1105K000FIXED IND 1MH 120MA 12 OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 120 mA | - | Unshielded | 12Ohm Max | 30 @ 252kHz | 1.8MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442H1106K000FIXED IND 10MH 35MA 120 OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 35 mA | - | Unshielded | 120Ohm Max | 30 @ 79.6kHz | 500kHz | AEC-Q200 | -55°C ~ 150°C | 79.6 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442H1222K000FIXED IND 2.2UH 1.8A 48 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 1.8 A | - | Unshielded | 48mOhm Max | 10 @ 7.96MHz | 42MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
