固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82442T1224K000FIXED IND 220UH 330MA 2.21OHM SM EPCOS - TDK Electronics |
2,834 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 330 mA | 640mA | Unshielded | 2.21Ohm Max | 20 @ 796kHz | 3.9MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442T1103K000FIXED IND 10UH 1.42A 132MOHM SMD EPCOS - TDK Electronics |
2,619 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.42 A | 2.8A | Unshielded | 132mOhm Max | 15 @ 2.52MHz | 19MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

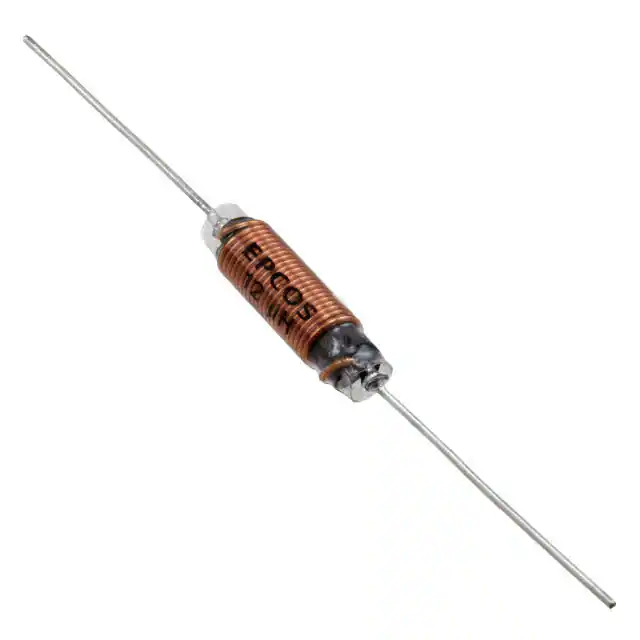

B82111E0000C021FIXED IND 12UH 4A 40 MOHM TH EPCOS - TDK Electronics |
6,832 |
|
规格书 |
B82111E | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 4 A | - | Unshielded | 40mOhm | - | 140MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.276" Dia x 1.024" L (7.00mm x 26.00mm) | - |
|

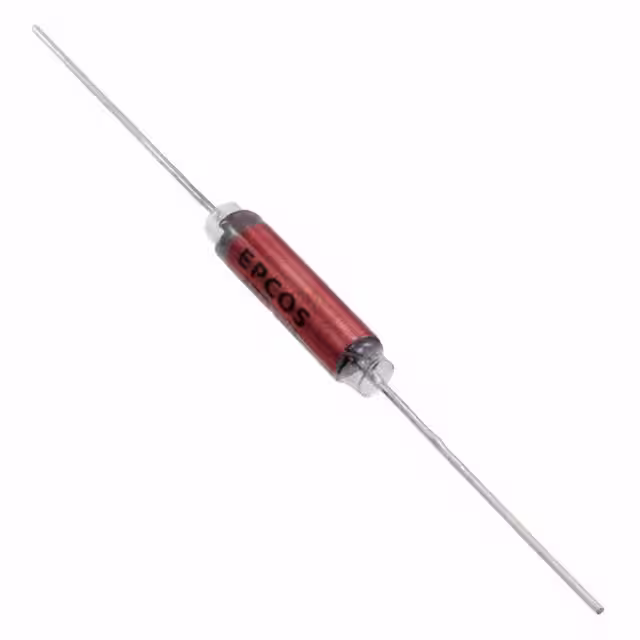

B82111E0000C027FIXED IND 470UH 300MA 6.5 OHM TH EPCOS - TDK Electronics |
5,693 |
|
规格书 |
B82111E | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 300 mA | - | Unshielded | 6.5Ohm | - | 25MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.236" Dia x 1.024" L (6.00mm x 26.00mm) | - |
|
|
B82442T1475J000FIXED IND 4.7MH 73MA 48.6OHM SMD EPCOS - TDK Electronics |
1,751 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 73 mA | 145mA | Unshielded | 48.6Ohm Max | 30 @ 252kHz | 800kHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82442T1102M050FIXED IND 1UH 3.51A 25 MOHM SMD EPCOS - TDK Electronics |
16,047 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.51 A | 7.33A | Unshielded | 25mOhm Max | 15 @ 7.96MHz | 111MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82472G6154M000FIXED IND 150UH 530MA 580MOHM SM EPCOS - TDK Electronics |
1,195 |
|
规格书 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 530 mA | 430mA | Shielded | 580mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472G6472M000FIXED IND 4.7UH 2.5A 30 MOHM SMD EPCOS - TDK Electronics |
1,648 |
|
规格书 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.5 A | 2A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472G6683M000FIXED IND 68UH 820MA 260MOHM SMD EPCOS - TDK Electronics |
1,557 |
|
规格书 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 820 mA | 680mA | Shielded | 260mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472G6224M000FIXED IND 220UH 430MA 880MOHM SM EPCOS - TDK Electronics |
13,385 |
|
规格书 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 430 mA | 360mA | Shielded | 880mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
