固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82498F3471G000FIXED IND 470NH 190MA 1.9OHM SMD EPCOS - TDK Electronics |
15,953 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±2% | 190 mA | - | Unshielded | 1.9Ohm Max | 30 @ 100MHz | 650MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

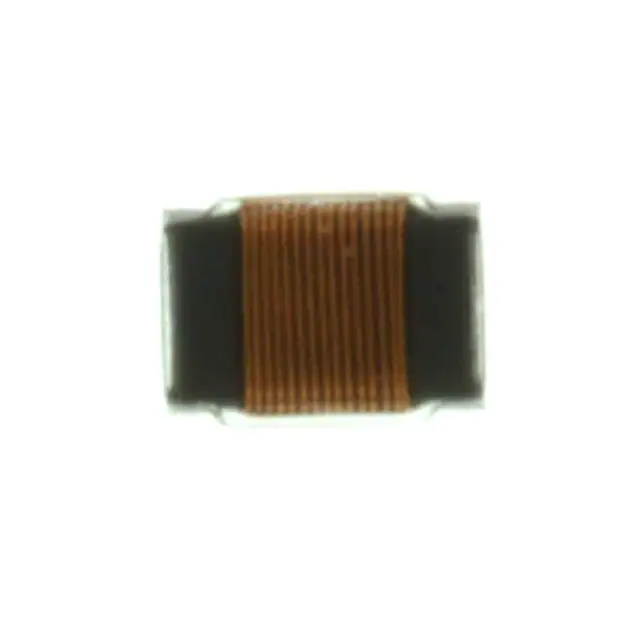

B82498F1102J000FIXED IND 1UH 240MA 550 MOHM SMD EPCOS - TDK Electronics |
28,120 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 240 mA | - | Unshielded | 550mOhm Max | 20 @ 7.96MHz | 440MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F1222J000FIXED IND 2.2UH 130MA 1.6OHM SMD EPCOS - TDK Electronics |
11,926 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 130 mA | - | Unshielded | 1.6Ohm Max | 20 @ 7.96MHz | 330MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F1332J000FIXED IND 3.3UH 100MA 3.3OHM SMD EPCOS - TDK Electronics |
9,042 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 100 mA | - | Unshielded | 3.3Ohm Max | 20 @ 7.96MHz | 250MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F1122J000FIXED IND 1.2UH 220MA 650MOHM SM EPCOS - TDK Electronics |
8,150 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 220 mA | - | Unshielded | 650mOhm Max | 20 @ 7.96MHz | 420MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F1152J000FIXED IND 1.5UH 200MA 700MOHM SM EPCOS - TDK Electronics |
3,678 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 200 mA | - | Unshielded | 700mOhm Max | 20 @ 7.96MHz | 380MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F1392J000FIXED IND 3.9UH 95MA 3.6 OHM SMD EPCOS - TDK Electronics |
1,256 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 95 mA | - | Unshielded | 3.6Ohm Max | 20 @ 7.96MHz | 230MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

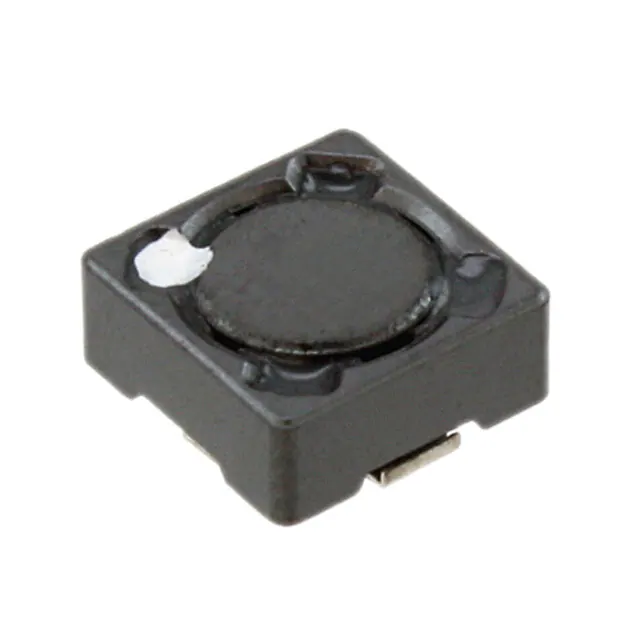

B82472G4224M000FIXED IND 220UH 400MA 1.1OHM SMD EPCOS - TDK Electronics |
27,249 |
|
规格书 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | 300mA | Shielded | 1.1Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|

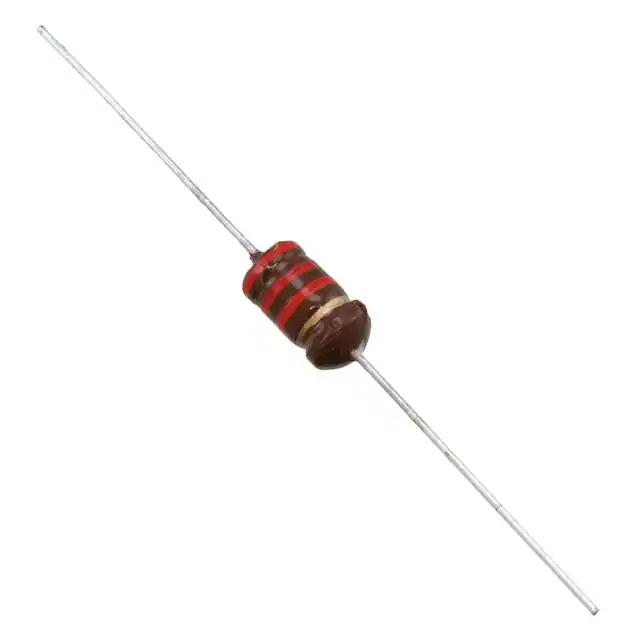

B82145A1225J000FIXED IND 2.2MH 250MA 8 OHM TH EPCOS - TDK Electronics |
3,836 |
|
规格书 |
HLBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 250 mA | - | Unshielded | 8Ohm Max | 60 @ 252kHz | 800kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | - |
|

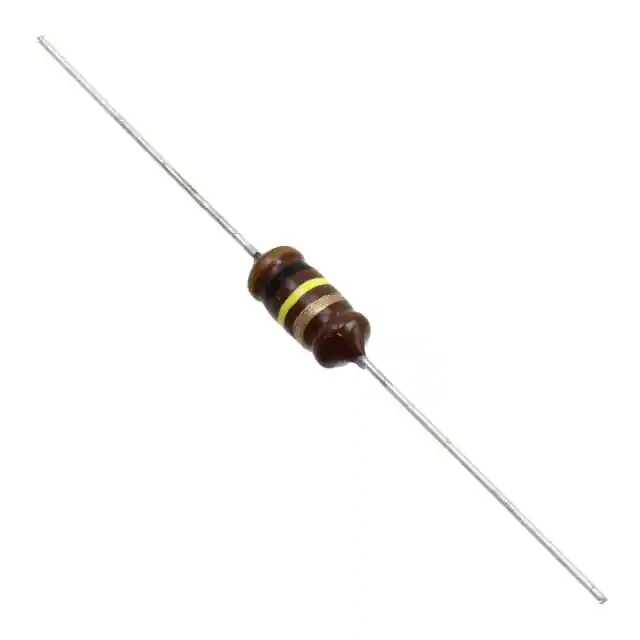

B82144A2107J000FIXED IND 100MH 20MA 420 OHM TH EPCOS - TDK Electronics |
11,860 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±5% | 20 mA | - | Unshielded | 420Ohm Max | 30 @ 79.6kHz | 120kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
