固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422H1222K100FIXED IND 2.2UH 560MA 330MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 560 mA | - | Unshielded | 330mOhm Max | 10 @ 2.52MHz | 85MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422H1223K100FIXED IND 22UH 220MA 2.4 OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 220 mA | - | Unshielded | 2.4Ohm Max | 12 @ 2.52MHz | 22MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|

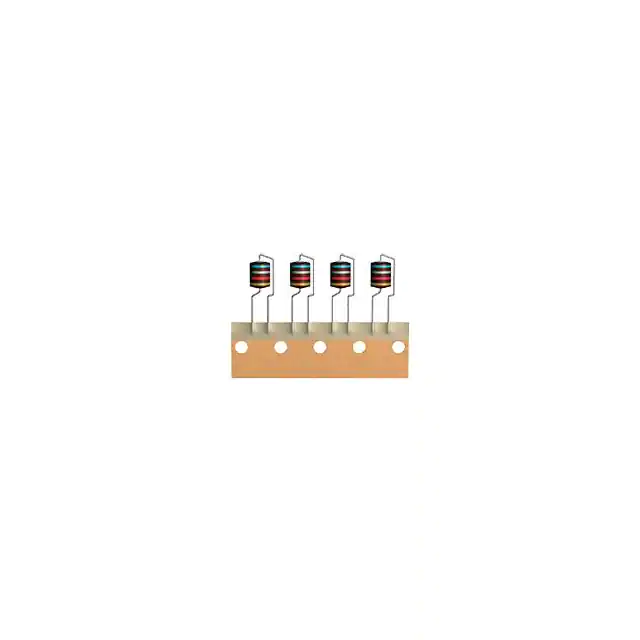

B82144B1226J000FIXED IND 22MH 40MA 120 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±5% | 40 mA | - | Unshielded | 120Ohm Max | 50 @ 79.6kHz | 400kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.571" (14.50mm) |
|
B82412A1102JFIXED IND 1UH 330MA 450 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 330 mA | - | Unshielded | 450mOhm Max | 30 @ 7.96MHz | 300MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.075" (1.90mm) |
|
|
B82412A1103JFIXED IND 10UH 90MA 5.5 OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 90 mA | - | Unshielded | 5.5Ohm Max | 35 @ 7.96MHz | 95MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.075" (1.90mm) |
|
|
B82412A1122JFIXED IND 1.2UH 310MA 500MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 310 mA | - | Unshielded | 500mOhm Max | 30 @ 7.96MHz | 260MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.075" (1.90mm) |
|
|
B82412A1152JFIXED IND 1.5UH 300MA 550MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 300 mA | - | Unshielded | 550mOhm Max | 30 @ 7.96MHz | 240MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.075" (1.90mm) |
|
|
B82412A1182JFIXED IND 1.8UH 290MA 600MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 290 mA | - | Unshielded | 600mOhm Max | 30 @ 7.96MHz | 220MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.075" (1.90mm) |
|
|
B82412A1222JFIXED IND 2.2UH 270MA 650MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 270 mA | - | Unshielded | 650mOhm Max | 30 @ 7.96MHz | 200MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.075" (1.90mm) |
|
|
B82412A1272JFIXED IND 2.7UH 220MA 1.05OHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±5% | 220 mA | - | Unshielded | 1.05Ohm Max | 30 @ 7.96MHz | 180MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.075" (1.90mm) |
