固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

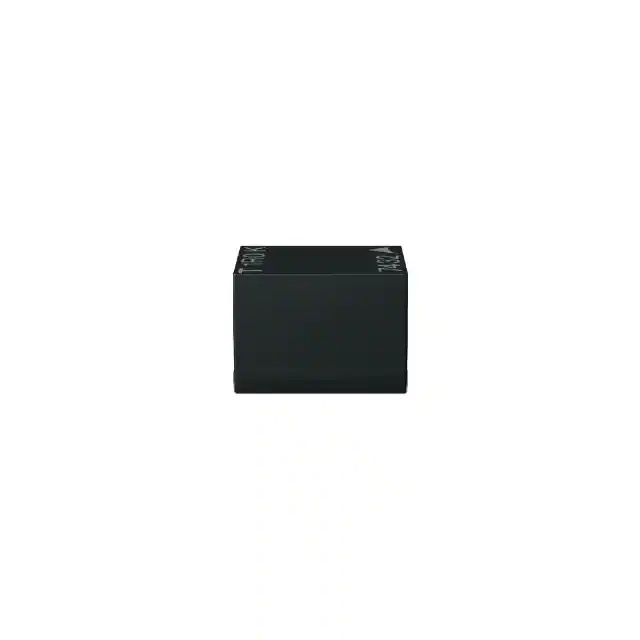

B82432T1122K000FIXED IND 1.2UH 1.2A 100MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 1.2 A | - | Unshielded | 100mOhm Max | 10 @ 7.96MHz | 100MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1123K000FIXED IND 12UH 630MA 450MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 630 mA | - | Unshielded | 450mOhm Max | 10 @ 2.52MHz | 23MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1124K000FIXED IND 120UH 180MA 4.5OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 180 mA | - | Unshielded | 4.5Ohm Max | 20 @ 796kHz | 6.3MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1184K000FIXED IND 180UH 140MA 7 OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 140 mA | - | Unshielded | 7Ohm Max | 20 @ 796kHz | 5.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
B82432T1272K000FIXED IND 2.7UH 950MA 170MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 950 mA | - | Unshielded | 170mOhm Max | 10 @ 7.96MHz | 55MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1273K000FIXED IND 27UH 430MA 1 OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 430 mA | - | Unshielded | 1Ohm Max | 10 @ 2.52MHz | 14MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1394K000FIXED IND 390UH 110MA 13 OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 110 mA | - | Unshielded | 13Ohm Max | 20 @ 796kHz | 3.9MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1564K000FIXED IND 560UH 90MA 20 OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 90 mA | - | Unshielded | 20Ohm Max | 20 @ 796kHz | 3MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
B82412A1102KFIXED IND 1UH 330MA 450 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 330 mA | - | Unshielded | 450mOhm Max | 30 @ 7.96MHz | 300MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.075" (1.90mm) |
|
|
B82412A1103KFIXED IND 10UH 90MA 5.5 OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 90 mA | - | Unshielded | 5.5Ohm Max | 35 @ 7.96MHz | 95MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.075" (1.90mm) |
