固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

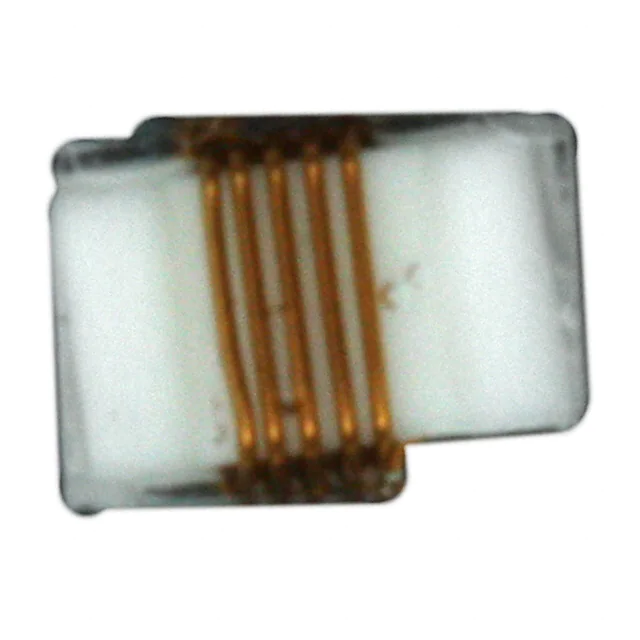

B82498F3270J000FIXED IND 27NH 700MA 90 MOHM SMD EPCOS - TDK Electronics |
40,992 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 700 mA | - | Unshielded | 90mOhm Max | 60 @ 500MHz | 2.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

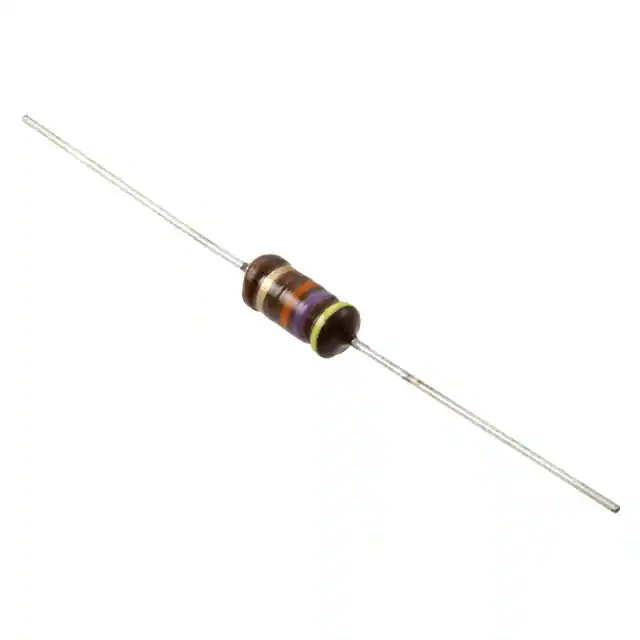

B82144A2476J000FIXED IND 47MH 30MA 230 OHM TH EPCOS - TDK Electronics |
28,572 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 mH | ±5% | 30 mA | - | Unshielded | 230Ohm Max | 40 @ 79.6kHz | 180kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|

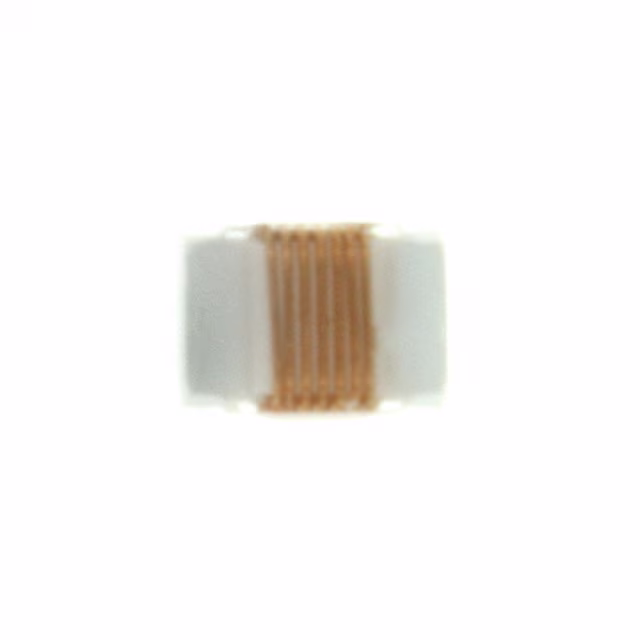

B82498F3470J000FIXED IND 47NH 600MA 130MOHM SMD EPCOS - TDK Electronics |
28,207 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 600 mA | - | Unshielded | 130mOhm Max | 65 @ 500MHz | 2GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

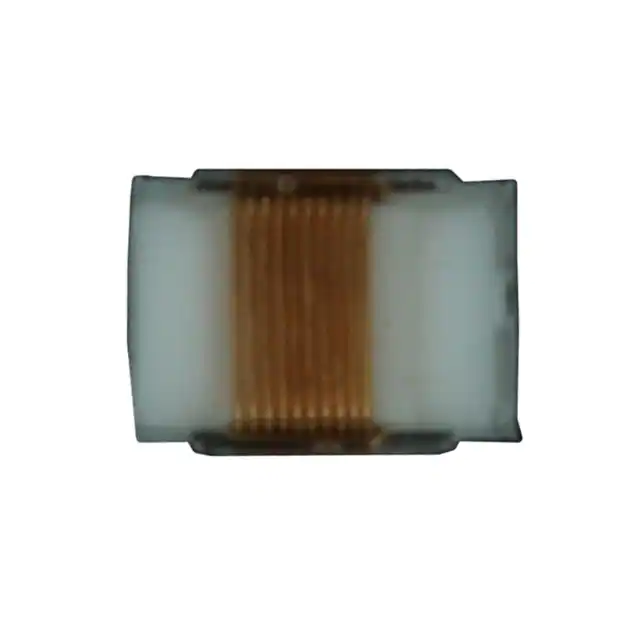

B82498F3101J000FIXED IND 100NH 450MA 280MOHM SM EPCOS - TDK Electronics |
27,171 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 450 mA | - | Unshielded | 280mOhm Max | 55 @ 500MHz | 1.35GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

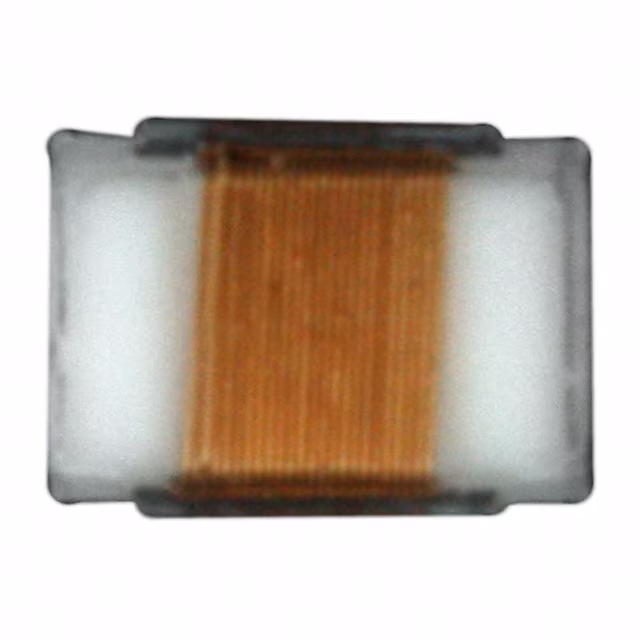

B82498F3471J000FIXED IND 470NH 190MA 1.9OHM SMD EPCOS - TDK Electronics |
22,911 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±5% | 190 mA | - | Unshielded | 1.9Ohm Max | 30 @ 100MHz | 650MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

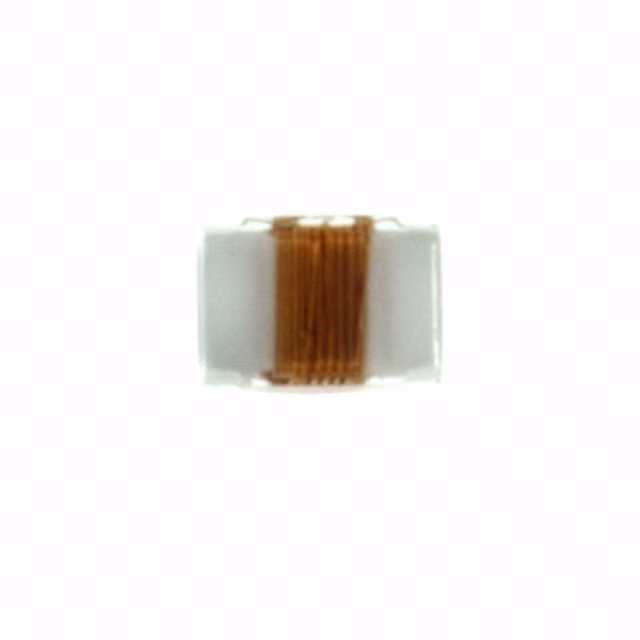

B82498F3681J000FIXED IND 680NH 190MA 1.7OHM SMD EPCOS - TDK Electronics |
18,075 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±5% | 190 mA | - | Unshielded | 1.7Ohm Max | 23 @ 50MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

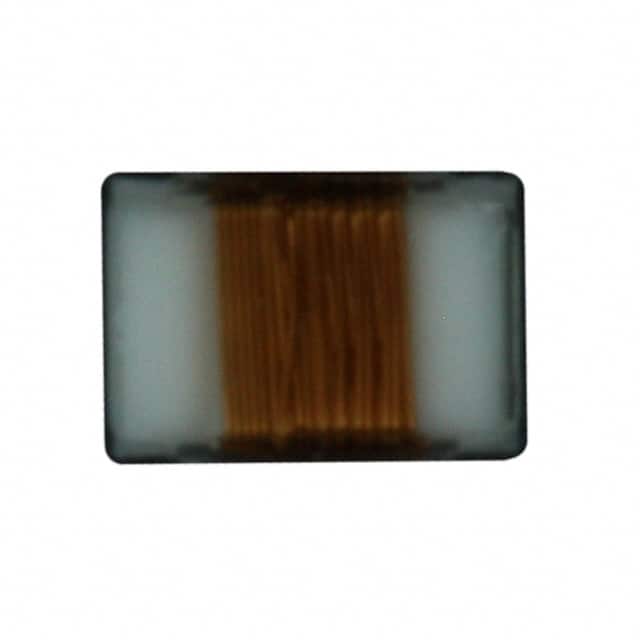

B82498F3821J000FIXED IND 820NH 180MA 1.9OHM SMD EPCOS - TDK Electronics |
11,774 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±5% | 180 mA | - | Unshielded | 1.9Ohm Max | 23 @ 50MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

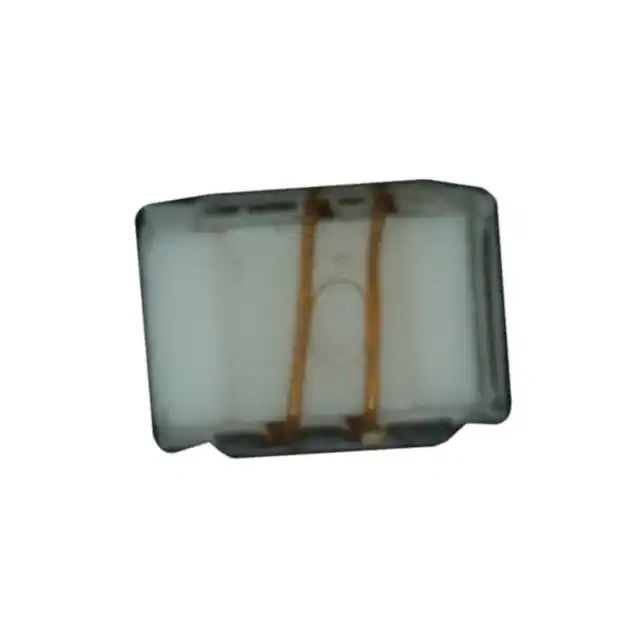

B82498F3569K000FIXED IND 5.6NH 900MA 40MOHM SMD EPCOS - TDK Electronics |
11,742 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±10% | 900 mA | - | Unshielded | 40mOhm Max | 50 @ 1GHz | 7GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

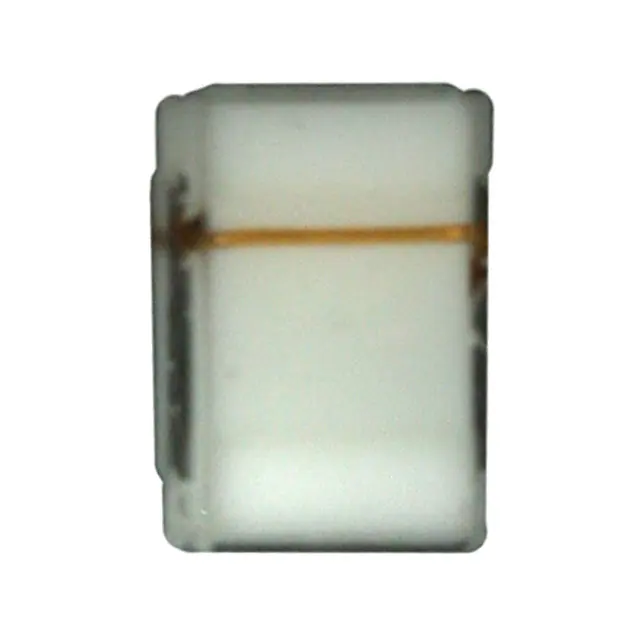

B82498F3279K000FIXED IND 2.7NH 1A 30 MOHM SMD EPCOS - TDK Electronics |
10,118 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±10% | 1 A | - | Unshielded | 30mOhm Max | 50 @ 1.5GHz | 9GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

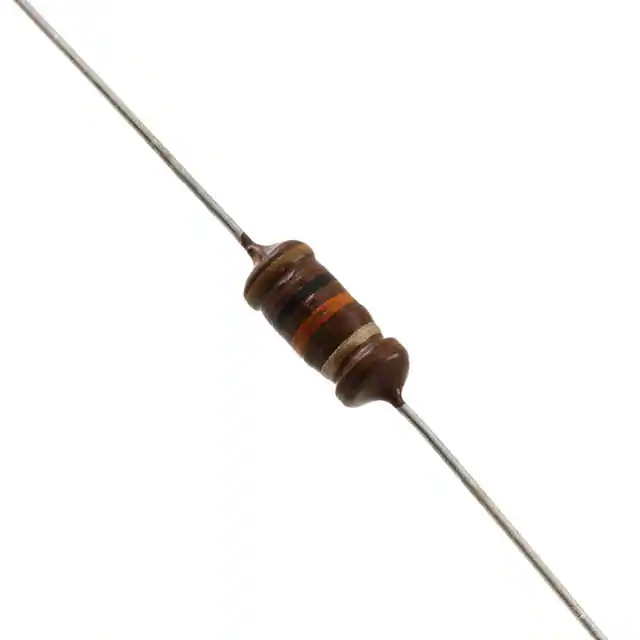

B82144A2106J000FIXED IND 10MH 60MA 42 OHM TH EPCOS - TDK Electronics |
10,025 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 60 mA | - | Unshielded | 42Ohm Max | 50 @ 79.6kHz | 350kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
