固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD3110-4R7-RFIXED IND 4.7UH 590MA 285MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
SD3110 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 590 mA | 680mA | Shielded | 285mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.039" (1.00mm) |
|
|
SD3110-6R8-RFIXED IND 6.8UH 540MA 346MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
SD3110 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 540 mA | 580mA | Shielded | 346mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.039" (1.00mm) |
|
|
SD3110-R82-RFIXED IND 820NH 1.3A 58.9MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
SD3110 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 nH | ±30% | 1.3 A | 1.67A | Shielded | 58.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.039" (1.00mm) |
|
DRA124-R47-RFIXED IND 470NH 15.15A 1.9 MOHM Eaton - Electronics Division |
0 |
|
规格书 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 15.15 A | 30.8A | Shielded | 1.9mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|

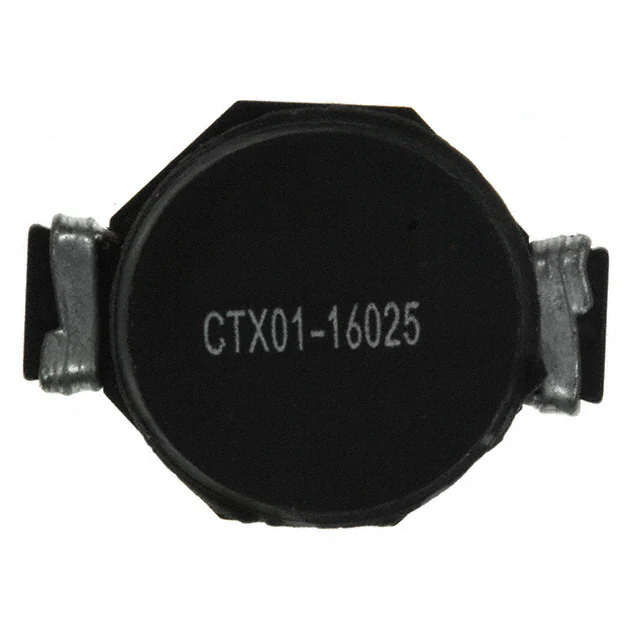

CTX01-16025FIXED IND 120UH 2A 62 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
CTX | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 120 µH | ±25% | 2 A | 1.7A | Unshielded | 62mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.506" W (17.70mm x 12.85mm) | 0.297" (7.55mm) |
|

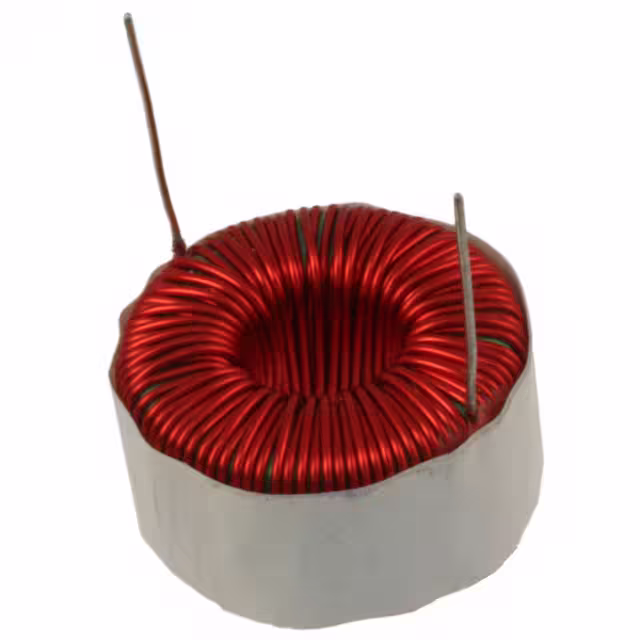

CTX02-12236FIXED IND 500UH 2.6A 200 MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
PFC | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 500 µH | - | 2.6 A | - | Unshielded | 200mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - | 1.224" Dia (31.08mm) | 0.750" (19.05mm) |
|

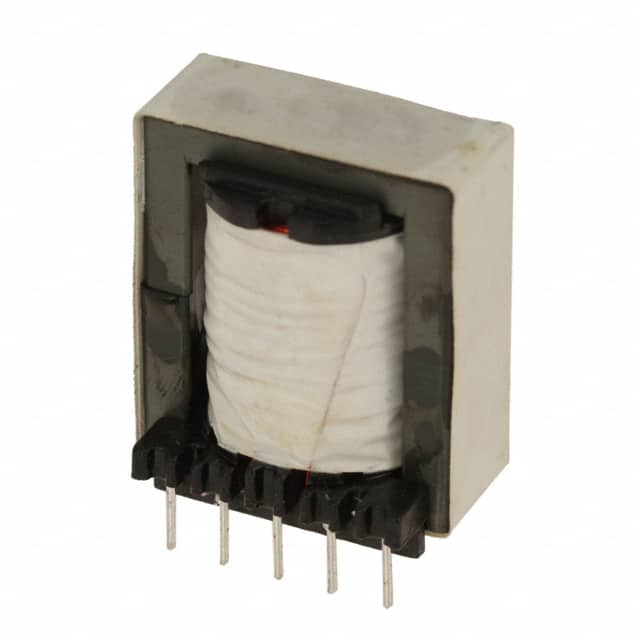

CTX16-15954FIXED IND 1MH 3.1A 212 MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
PFC | Radial, Vertical, 10 Leads | Bulk | Obsolete | Toroidal | Ferrite | 1 mH | - | 3.1 A | - | Unshielded | 212mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" L x 0.945" W (30.00mm x 24.00mm) | 1.417" (36.00mm) |
|
MPI4040R1-R10-RFIXED IND 90NH 8A 8.5 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPI4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 90 nH | ±20% | 8 A | 32A | Shielded | 8.5mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
.jpg)
|
MPI2520R0-2R2-RFIXED IND 2.2UH 2.2A 124MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Metal Composite | 2.2 µH | ±20% | 2.2 A | 2.4A | Shielded | 124mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
MPI2520R1-5R6-RFIXED IND 5.6UH 1.5A 240MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Metal Composite | 5.6 µH | ±20% | 1.5 A | 1.5A | Shielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
