固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

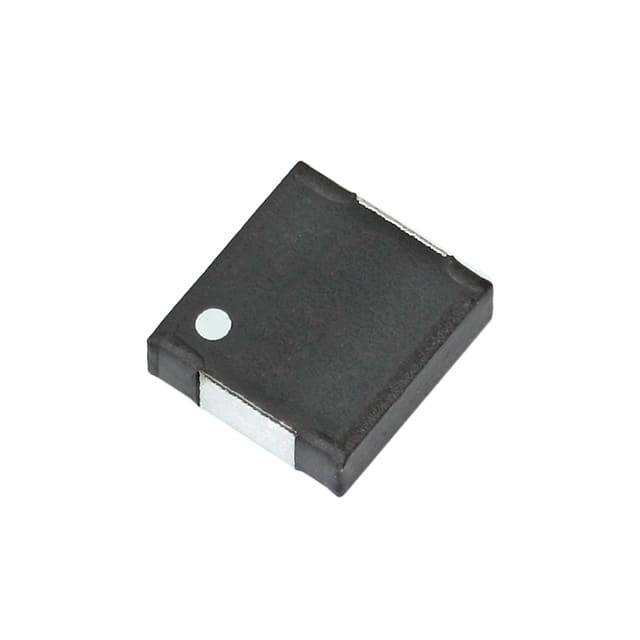

MPIA4040R3-6R8-RFIXED IND 6.8UH 2A 120 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 6.8 µH | ±20% | 2 A | 4.5A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
|
MPIA4040R4-6R8-RFIXED IND 6.8UH 2.4A 91 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 6.8 µH | ±20% | 2.4 A | 3.2A | Shielded | 91mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MPIA4040R4-R22-RFIXED IND 220NH 10.1A 5.3MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 220 nH | ±20% | 10.1 A | 15A | Shielded | 5.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MPIA4040R4-R33-RFIXED IND 330NH 9.5A 6 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 330 nH | ±20% | 9.5 A | 12.8A | Shielded | 6mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MPIA4040R4-R47-RFIXED IND 450NH 8.1A 8.2MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 450 nH | ±20% | 8.1 A | 11.5A | Shielded | 8.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MPIA4040R2-1R5-RFIXED IND 1.5UH 3.8A 37 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPIA4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal Composite | 1.5 µH | ±20% | 3.8 A | 7.6A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|

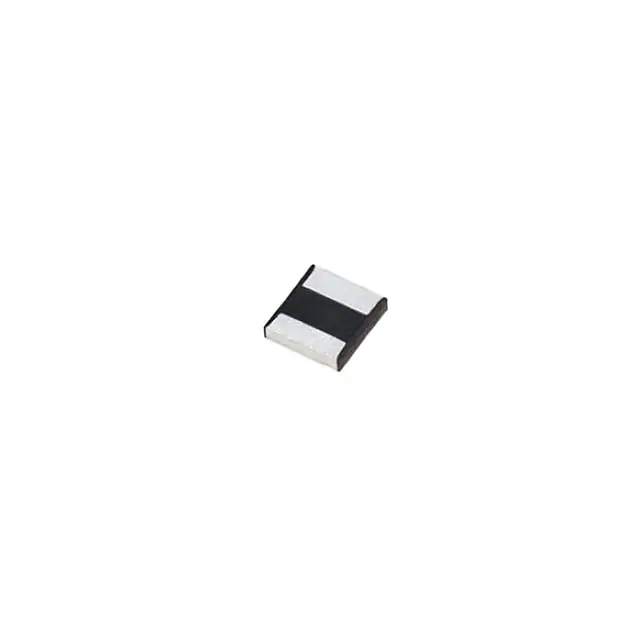

MPI5451R1-150-RFIXED IND 15UH 1.1A 400 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPI5451 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 15 µH | ±15% | 1.1 A | 2.2A | Shielded | 400mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
|
MPI5451R3-4R7-RFIXED IND 4.7UH 3A 50 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPI5451 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 3 A | 3.8A | Shielded | 50mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
RL0809-101-RFIXED IND 100UH TH Eaton - Electronics Division |
0 |
|
规格书 |
RL0809 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | - | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.311" Dia (7.90mm) | 0.354" (9.00mm) |
|
HCV1206-R40-RFIXED IND 400NH SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 400 nH | - | - | - | Unshielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.240" (6.10mm) |
