固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD3814-221-RFIXED IND 220UH 170MA 5.48OHM SM Eaton - Electronics Division |
0 |
|
规格书 |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±15% | 170 mA | 181mA | Shielded | 5.48Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|
|
SD3814-2R2-RFIXED IND 2.2UH 1.43A 77MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±15% | 1.43 A | 1.9A | Shielded | 77mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|
|

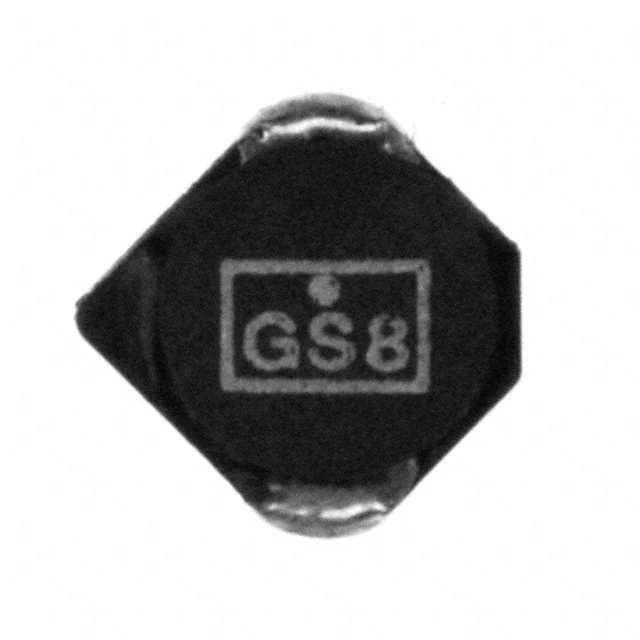

SD3814-4R7-RFIXED IND 4.7UH 1.06A 141MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±15% | 1.06 A | 1.29A | Shielded | 141mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|

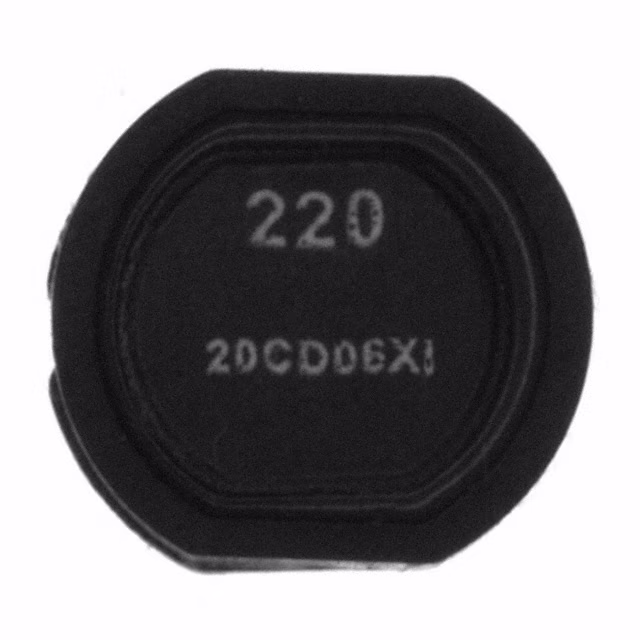

LDS0705-220M-RFIXED IND 22UH 1.66A 84 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.66 A | 1.71A | Shielded | 84mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
LDS0705-1R5M-RFIXED IND 1.5UH 6.17A 6.1MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6.17 A | 6.67A | Shielded | 6.1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-330M-RFIXED IND 33UH 1.48A 107MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.48 A | 1.4A | Shielded | 107mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-331M-RFIXED IND 330UH 470MA 1.06OHM SM Eaton - Electronics Division |
0 |
|
规格书 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 470 mA | 438mA | Shielded | 1.06Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-3R3M-RFIXED IND 3.3UH 4.19A 13MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.19 A | 4.62A | Shielded | 13mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-471M-RFIXED IND 470UH 387MA 1.56OHM SM Eaton - Electronics Division |
0 |
|
规格书 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 387 mA | 368mA | Shielded | 1.56Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-680M-RFIXED IND 68UH 985MA 240MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 985 mA | 952mA | Shielded | 240mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
