固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPRX2520L-6R8MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
55 |
|
规格书 |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 53 A | 60A | Shielded | 1.15mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Power Inductor | Through Hole | Vertical, 2 PC Pin | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
|
CPRX2520L-4R7MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
49 |
|
规格书 |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 62 A | 70A | Shielded | 0.95mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Power Inductor | Through Hole | Vertical, 2 PC Pin | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
|
CPRX2520L-2R2MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
80 |
|
规格书 |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 75 A | 110A | Shielded | 0.42mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Power Inductor | Through Hole | Vertical, 2 PC Pin | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
|
CPRX2520L-3R3MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
59 |
|
规格书 |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 65 A | 90A | Shielded | 0.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Power Inductor | Through Hole | Vertical, 2 PC Pin | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
|
CPRX2520L-8R2MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
36 |
|
规格书 |
CPRX2520L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 47 A | 50A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) |
|
CSCF3218-100MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
84 |
|
规格书 |
CSCF3218 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 40 A | 45A | Shielded | 2.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 2-SMD, J-Lead | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.748" (19.00mm) |
|

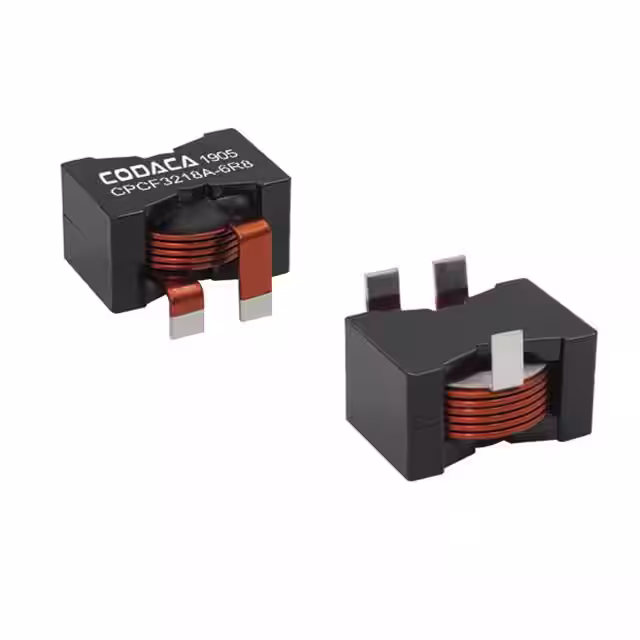

CPCF3218A-6R8MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
35 |
|
规格书 |
CPCF | Nonstandard | Tray | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 50 A | 55A | Shielded | 1.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.186" Dia x 1.260" L (4.72mm x 32.00mm) | 0.748" (19.00mm) |
|
|
CPCF3218A-3R3MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
33 |
|
规格书 |
CPCF | Nonstandard | Tray | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 55 A | 80A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 0.186" Dia x 1.260" L (4.72mm x 32.00mm) | 0.748" (19.00mm) |
|
|
CPEX2626H-4R5MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
规格书 |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.5 µH | ±20% | 44 A | 150A | Shielded | 1.48mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626H-7R0MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
规格书 |
CPEX2626H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 7 µH | ±20% | 36 A | 114A | Shielded | 2.2mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
