固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

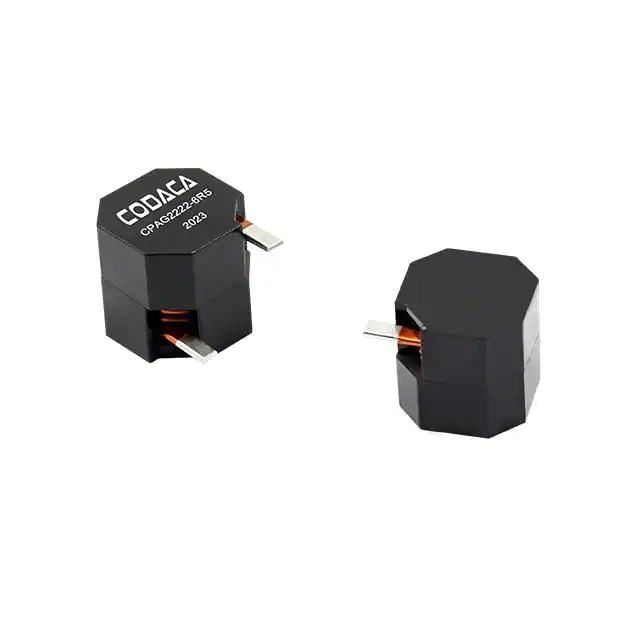

CPAG2222-3R2MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
规格书 |
CPAG2222 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 3.2 µH | ±20% | 49 A | 76A | Shielded | 0.85mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial | - | - |
|
CPEX2017S-3R0MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
规格书 |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 3 µH | ±20% | 41.8 A | 88A | Shielded | 1.38mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-140MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
规格书 |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 14 µH | ±20% | 20.5 A | 41A | Shielded | 5.76mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-6R0MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
规格书 |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 6 µH | ±20% | 31 A | 61A | Shielded | 2.58mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-2R2MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
规格书 |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 52.5 A | 104A | Shielded | 0.95mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-4R9MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
规格书 |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.9 µH | ±20% | 34 A | 68A | Shielded | 2.14mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-100MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
规格书 |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 24 A | 47A | Shielded | 4.31mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-8R6MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
26 |
|
规格书 |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 8.6 µH | ±20% | 26 A | 51A | Shielded | 3.44mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPCE2624A-330MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
46 |
|
规格书 |
CPCE2624A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 33 µH | ±20% | 20 A | 24A | Shielded | 4.8mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 1.181" L x 1.039" W (30.00mm x 26.40mm) | 0.886" (22.50mm) |
|
|
CPCE2624A-270MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
60 |
|
规格书 |
CPCE2624A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 27 µH | ±20% | 22 A | 26A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 1.181" L x 1.039" W (30.00mm x 26.40mm) | 0.886" (22.50mm) |
