固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN4018-2R7MFIXED IND 2.7UH 2.3A 52 MOHM SMD Bourns Inc. |
4,959 |
|
规格书 |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 2.3 A | 2.4A | Shielded | 52mOhm Max | 9 @ 7.96MHz | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
RLB0914-471KLFIXED IND 470UH 560MA 1.3 OHM TH Bourns Inc. |
4,614 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 560 mA | 1A | Unshielded | 1.3Ohm Max | 20 @ 796kHz | 1.8MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB0914-120KLFIXED IND 12UH 2.5A 55 MOHM TH Bourns Inc. |
3,693 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2.5 A | 6.2A | Unshielded | 55mOhm Max | 50 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB0914-100KLFIXED IND 10UH 2.7A 48 MOHM TH Bourns Inc. |
3,521 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.7 A | 6.7A | Unshielded | 48mOhm Max | 50 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB0914-3R3MLFIXED IND 3.3UH 3.6A 27 MOHM TH Bourns Inc. |
2,888 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.6 A | 11.3A | Unshielded | 27mOhm Max | 20 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|

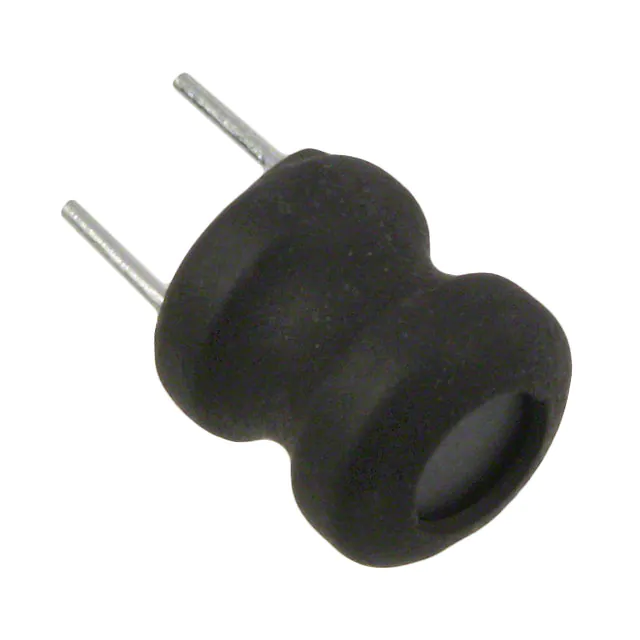

RLB0912-470KLFIXED IND 47UH 1.5A 170 MOHM TH Bourns Inc. |
2,458 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.5 A | 1.7A | Unshielded | 170mOhm Max | 40 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
|
RLB0914-271KLFIXED IND 270UH 770MA 680MOHM TH Bourns Inc. |
2,270 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 770 mA | 1.4A | Unshielded | 680mOhm Max | 20 @ 796kHz | 2.2MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB0914-151KLFIXED IND 150UH 1A 370 MOHM TH Bourns Inc. |
1,862 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1 A | 1.8A | Unshielded | 370mOhm Max | 30 @ 796kHz | 2.8MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB0912-471KLFIXED IND 470UH 600MA 1.7 OHM TH Bourns Inc. |
1,849 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 600 mA | 520mA | Unshielded | 1.7Ohm Max | 25 @ 796kHz | 2.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
|
RLB0912-220KLFIXED IND 22UH 2.1A 86 MOHM TH Bourns Inc. |
1,695 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.1 A | 2.5A | Unshielded | 86mOhm Max | 50 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
