固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN3012BTA-470MFIXED IND 47UH 650MA 1.8OHM SMD Bourns Inc. |
3,122 |
|
规格书 |
SRN3012BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 650 mA | 520mA | Shielded | 1.8Ohm Max | 10 @ 1MHz | 16MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
SRN2010TA-2R2MFIXED IND 2.2UH 1.2A 145MOHM SMD Bourns Inc. |
2,578 |
|
规格书 |
SRN2010TA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | 1.26A | Shielded | 145mOhm | 14 @ 1MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

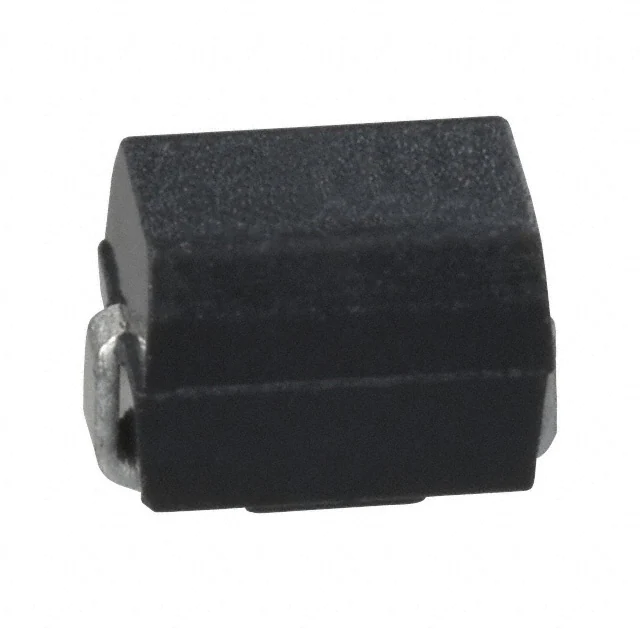

PM1812-100J-RCFIXED IND 10UH 250MA 1.6 OHM SMD Bourns Inc. |
1,672 |
|
规格书 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 2.52MHz | 20MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
SRN3012BTA-330MFIXED IND 33UH 800MA 1.32OHM SMD Bourns Inc. |
1,121 |
|
规格书 |
SRN3012BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 800 mA | 610mA | Shielded | 1.32Ohm Max | 10 @ 1MHz | 23MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
RLB0812-102KLFIXED IND 1MH 120MA 3.9 OHM TH Bourns Inc. |
60,105 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 120 mA | - | Unshielded | 3.9Ohm Max | 45 @ 252kHz | 1.4MHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
|
RLB0812-223KLFIXED IND 22MH 25MA 92 OHM TH Bourns Inc. |
5,539 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 25 mA | - | Unshielded | 92Ohm Max | 60 @ 79.6kHz | 240kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
RLB0608-222KLFIXED IND 2.2MH 85MA 20 OHM TH Bourns Inc. |
3,588 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 85 mA | - | Unshielded | 20Ohm Max | 50 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
RLB0812-472KLFIXED IND 4.7MH 50MA 16 OHM TH Bourns Inc. |
3,042 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 50 mA | - | Unshielded | 16Ohm Max | 60 @ 252kHz | 500kHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
|
RLB0608-221KLFIXED IND 220UH 200MA 2.5 OHM TH Bourns Inc. |
2,643 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 200 mA | - | Unshielded | 2.5Ohm Max | 45 @ 796kHz | 3.8MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
RLB0812-473KLFIXED IND 47MH 16MA 162 OHM TH Bourns Inc. |
2,168 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 16 mA | - | Unshielded | 162Ohm Max | 60 @ 79.6kHz | 100kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
