上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

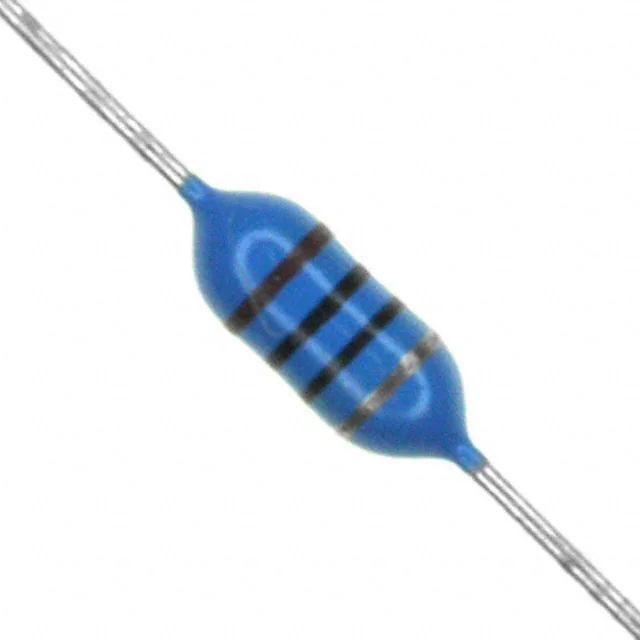

78F100J-RCFIXED IND 10UH 370MA 750 MOHM TH Bourns Inc. |
6,550 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 370 mA | - | Unshielded | 750mOhm Max | 40 @ 7.9MHz | 18MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

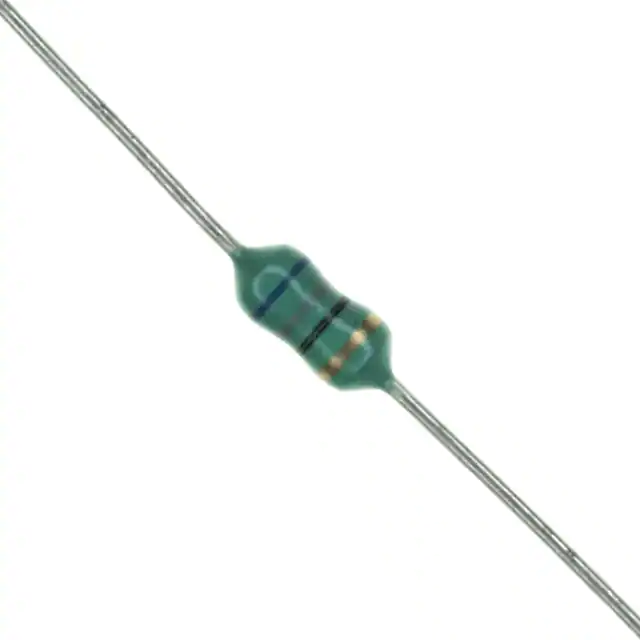

78F680J-RCFIXED IND 68UH 185MA 3.3 OHM TH Bourns Inc. |
6,387 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 185 mA | - | Unshielded | 3.3Ohm Max | 60 @ 2.5MHz | 6.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

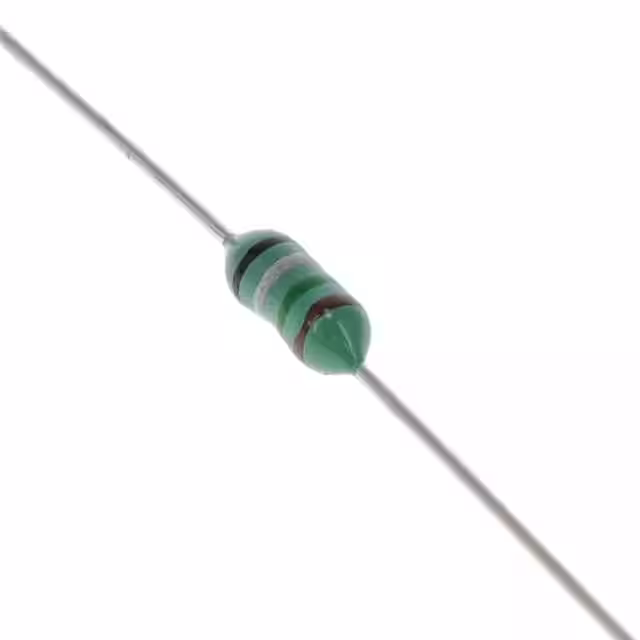

78FR15M-RCFIXED IND 150NH 1.2A 70 MOHM TH Bourns Inc. |
6,321 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 1.2 A | - | Unshielded | 70mOhm Max | 20 @ 25MHz | 380MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

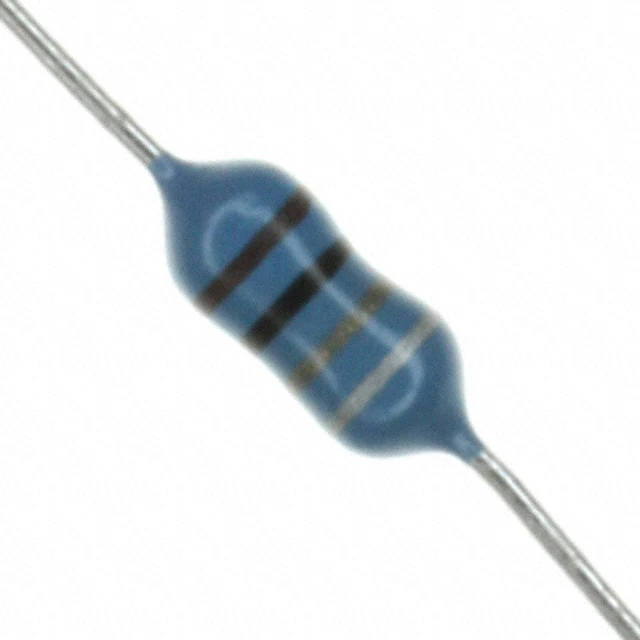

78F1R0K-RCFIXED IND 1UH 815MA 150 MOHM TH Bourns Inc. |
6,164 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 815 mA | - | Unshielded | 150mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

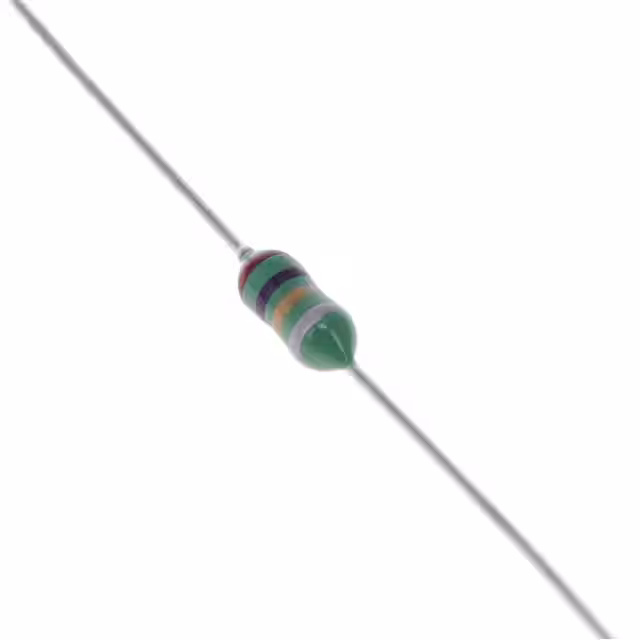

78F2R7K-RCFIXED IND 2.7UH 595MA 280MOHM TH Bourns Inc. |
6,028 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 595 mA | - | Unshielded | 280mOhm Max | 50 @ 7.9MHz | 95MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F101J-RCFIXED IND 100UH 165MA 4.1 OHM TH Bourns Inc. |
5,295 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 165 mA | - | Unshielded | 4.1Ohm Max | 60 @ 2.5MHz | 5.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

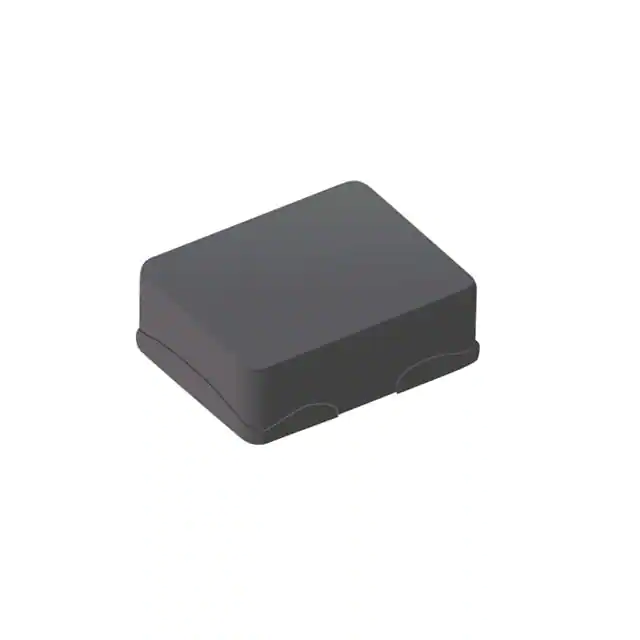

SRP2512TMA-2R2MFIXED IND 2.2UH 3.1A 0.0792OHM Bourns Inc. |
5,275 |
|
规格书 |
SRP2512TMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 3.1 A | 3.4A | Shielded | 79.2mOhm Max | 15 @ 1MHz | 45MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Flat Wire | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

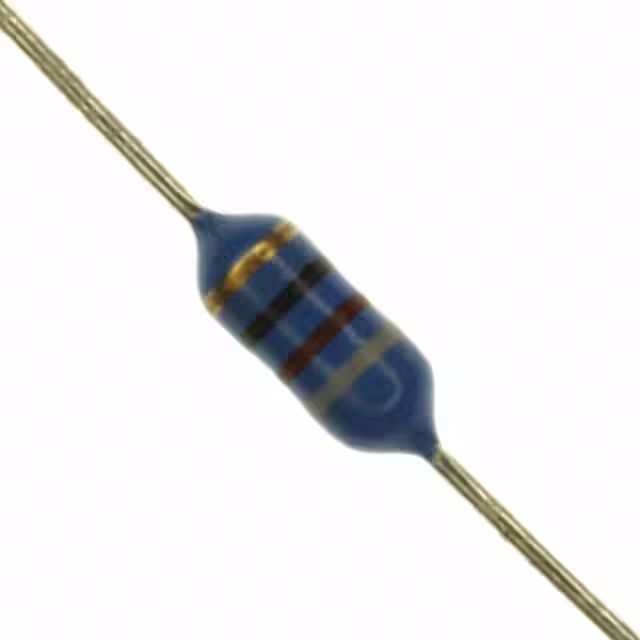

78F820J-RCFIXED IND 82UH 175MA 3.6 OHM TH Bourns Inc. |
5,150 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 175 mA | - | Unshielded | 3.6Ohm Max | 60 @ 2.5MHz | 6MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
77F220K-TR-RCFIXED IND 22UH 410MA 900 MOHM TH Bourns Inc. |
5,002 |
|
规格书 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 410 mA | - | Unshielded | 900mOhm Max | 60 @ 2.52MHz | 9.9MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
|
SRP2010TMA-1R0MIND METAL POWDER 1UH 3.6A Bourns Inc. |
4,965 |
|
规格书 |
SRP2010TMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 3.6 A | 4.4A | Shielded | 59mOhm Max | 15 @ 1MHz | 60MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
