固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

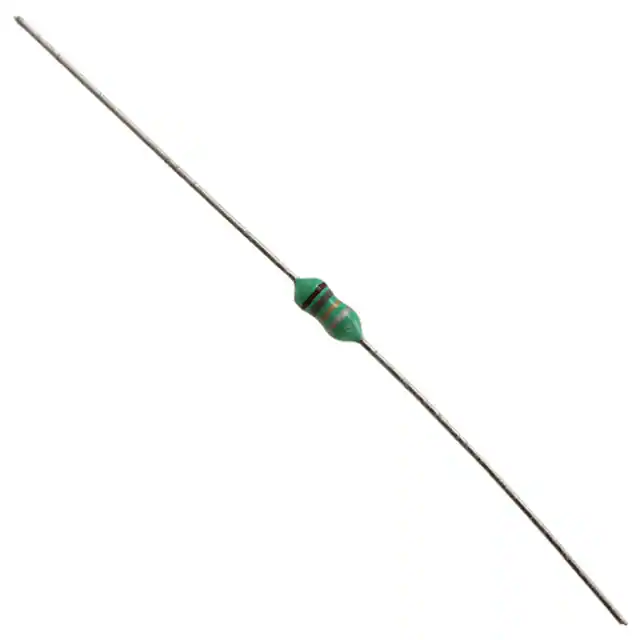

78F1R8K-RCFIXED IND 1.8UH 655MA 230MOHM TH Bourns Inc. |
8,935 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 655 mA | - | Unshielded | 230mOhm Max | 50 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

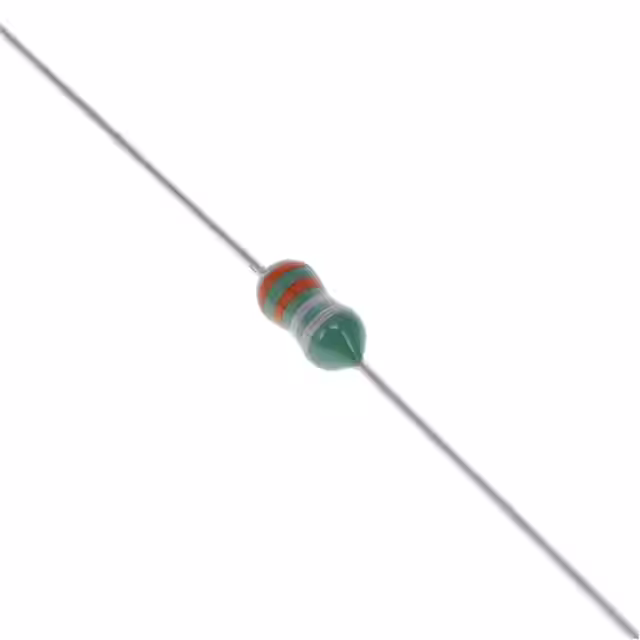

78FR33K-RCFIXED IND 330NH 1.11A 95 MOHM TH Bourns Inc. |
8,419 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±10% | 1.11 A | - | Unshielded | 95mOhm Max | 40 @ 25MHz | 335MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
77F100K-TR-RCFIXED IND 10UH 500MA 650 MOHM TH Bourns Inc. |
8,267 |
|
规格书 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 500 mA | - | Unshielded | 650mOhm Max | 85 @ 7.96MHz | 40MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
77F4R7K-TR-RCFIXED IND 4.7UH 620MA 400MOHM TH Bourns Inc. |
8,266 |
|
规格书 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 620 mA | - | Unshielded | 400mOhm Max | 70 @ 7.96MHz | 80MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|

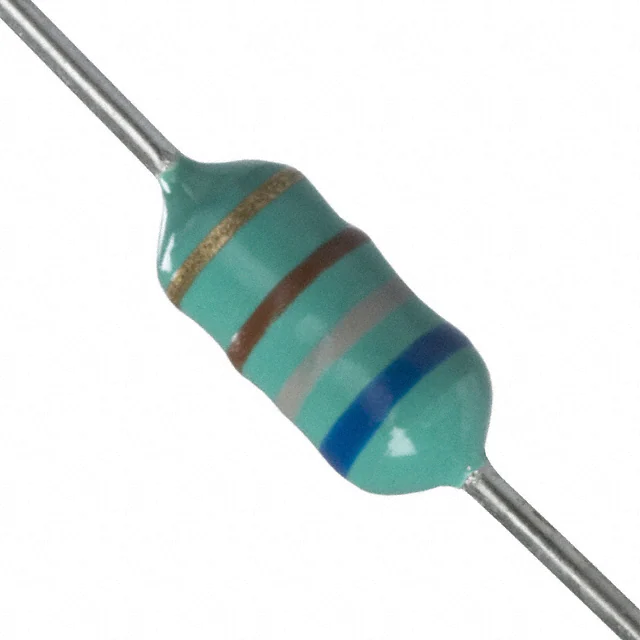

78F681J-RCFIXED IND 680UH 68MA 25.3 OHM TH Bourns Inc. |
7,962 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 68 mA | - | Unshielded | 25.3Ohm Max | 60 @ 790kHz | 2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

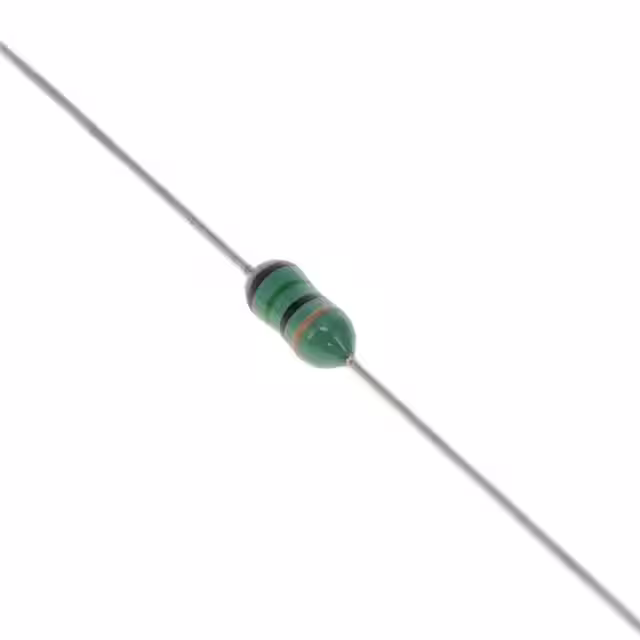

78F150J-RCFIXED IND 15UH 335MA 930 MOHM TH Bourns Inc. |
7,850 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 335 mA | - | Unshielded | 930mOhm Max | 50 @ 2.5MHz | 16MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

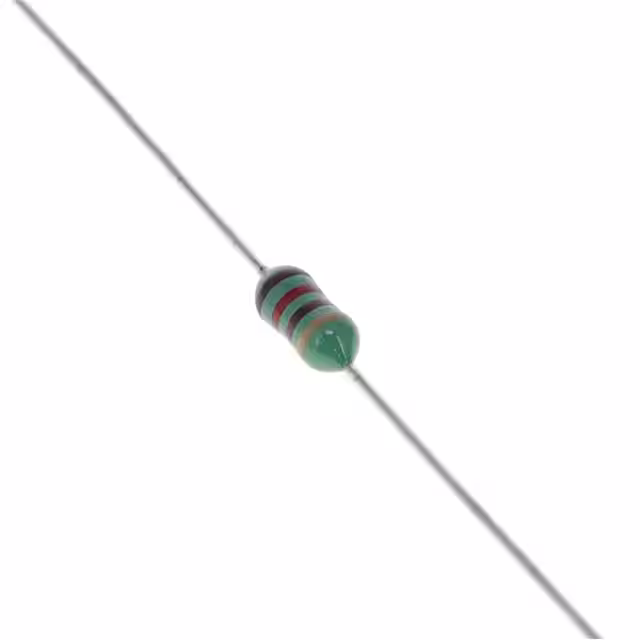

78F121J-RCFIXED IND 120UH 160MA 4.7 OHM TH Bourns Inc. |
7,810 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 160 mA | - | Unshielded | 4.7Ohm Max | 60 @ 790kHz | 5.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

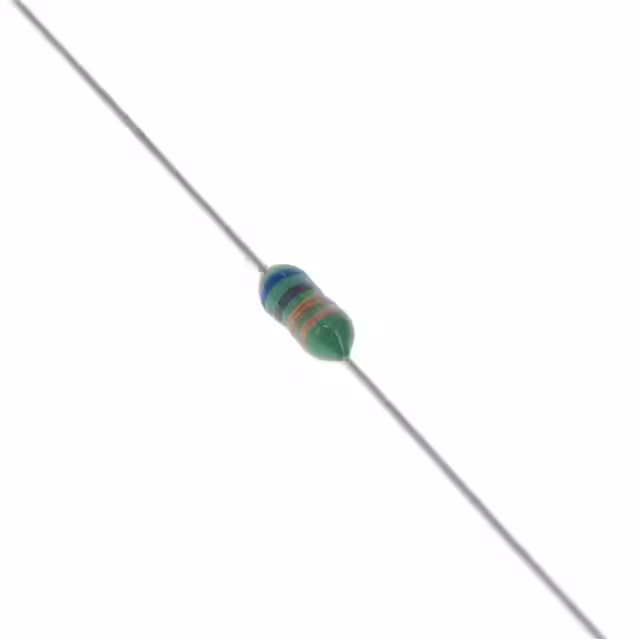

78F6R8J-RCFIXED IND 6.8UH 470MA 450MOHM TH Bourns Inc. |
7,213 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 470 mA | - | Unshielded | 450mOhm Max | 40 @ 7.9MHz | 28MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78FR56K-RCFIXED IND 560NH 950MA 120MOHM TH Bourns Inc. |
7,139 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±10% | 950 mA | - | Unshielded | 120mOhm Max | 40 @ 25MHz | 245MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F330J-RCFIXED IND 33UH 255MA 1.5 OHM TH Bourns Inc. |
6,843 |
|
规格书 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 255 mA | - | Unshielded | 1.5Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
