固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

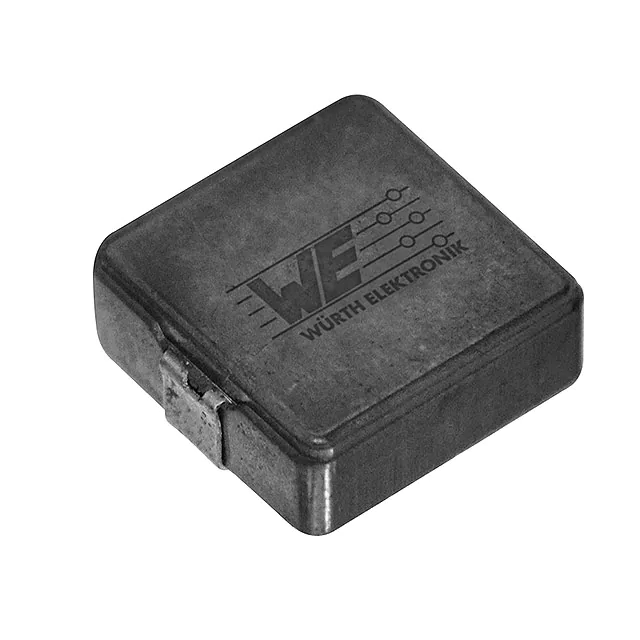

831751001FIXED IND 10UH 7A 34 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 10 µH | ±20% | 7 A | 16A | Shielded | 34mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - |
|
|
831751501FIXED IND 15UH 6A 53 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 15 µH | ±20% | 6 A | 15A | Shielded | 53mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - |
|

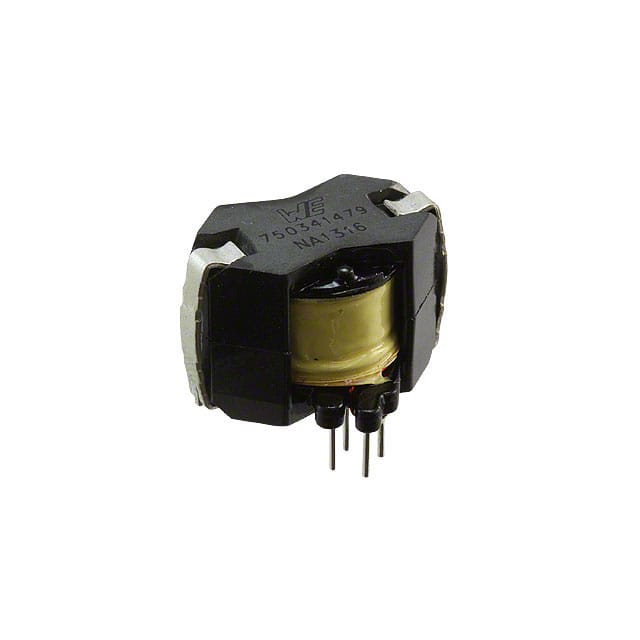

750341479FIXED IND 2.2MH 1.16 OHM TH Würth Elektronik |
0 |
|
规格书 |
MID-DC16US | Radial, Horizontal, 6 Leads | Tray | Active | - | - | 2.2 mH | ±10% | - | - | - | 1.16Ohm Max | - | - | - | - | 100 kHz | - | Through Hole | - | 0.695" L x 0.655" W (17.65mm x 16.64mm) | 0.591" (15.00mm) |
|

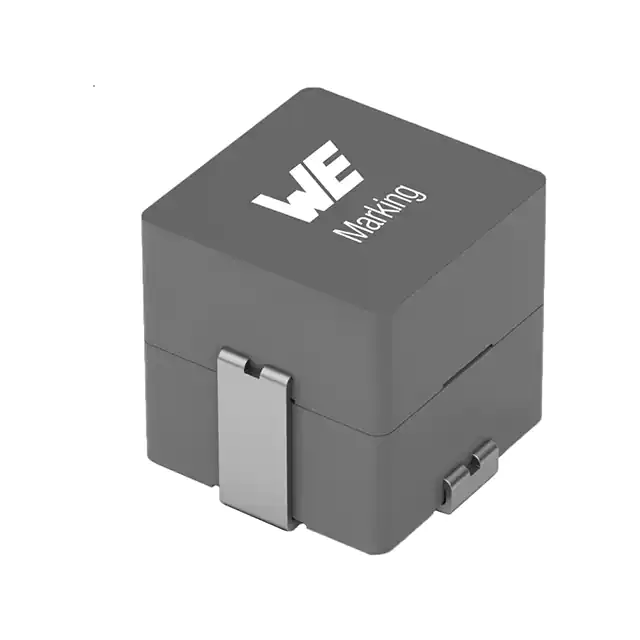

74434301213150FIXED IND 15UH 4.5A 34 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-LHMD | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±15% | 4.5 A | 16A | Shielded | 34mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.543" W (13.80mm x 13.80mm) | 0.512" (13.00mm) |
|
|
74434301213082FIXED IND 8.2UH 7A 16 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-LHMD | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±15% | 7 A | 25A | Shielded | 16mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.543" W (13.80mm x 13.80mm) | 0.406" (10.30mm) |
|
701014150FIXED IND 1.5UH 50A 0.6 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±25% | 50 A | 45A | Shielded | 0.6mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|

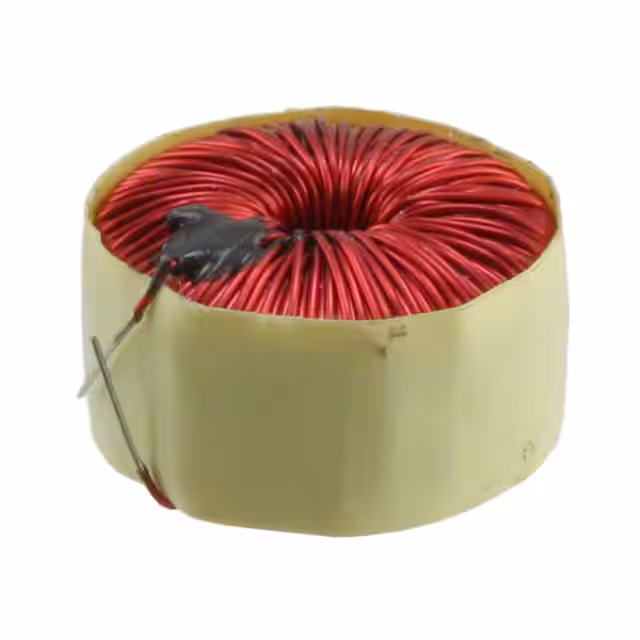

750311826FIXED IND 1.6MH 150MA 1.5 OHM TH Würth Elektronik |
0 |
|
规格书 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 1.6 mH | ±20% | 150 mA | - | Unshielded | 1.5Ohm Max | - | - | - | - | 100 kHz | - | Through Hole | - | 0.580" Dia x 0.365" W (14.73mm x 9.27mm) | - |
|
|
701014100FIXED IND 1UH 50A 0.6 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±25% | 50 A | 65A | Shielded | 0.6mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
701014101FIXED IND 10UH 35A 1.1 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±15% | 35 A | 10A | Shielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
74441521100FIXED IND 10UH 9A 6.3 MOHM TH Würth Elektronik |
1 |
|
规格书 |
WE-HIDA | Nonstandard | Tray | Active | - | - | 10 µH | ±20% | 9 A | 13.5A | Unshielded | 6.3mOhm | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.827" L x 0.571" W (21.00mm x 14.50mm) | 0.618" (15.70mm) |
