固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744029150FIXED IND 15UH 500MA 700MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 500 mA | 420mA | Shielded | 700mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
|
744029220FIXED IND 22UH 410MA 970MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 410 mA | 300mA | Shielded | 970mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
|
744029330FIXED IND 33UH 325MA 1.54OHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 325 mA | 260mA | Shielded | 1.54Ohm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
|
744029470FIXED IND 47UH 250MA 2.5 OHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 250 mA | 200mA | Shielded | 2.5Ohm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
7446413330FIXED IND 330UH 3A 140 MOHM TH Würth Elektronik |
0 |
|
规格书 |
WE-GI | Nonstandard | Bulk | Obsolete | Toroidal | - | 330 µH | ±20% | 3 A | - | - | 140mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | - | - |
|
|
7446413680FIXED IND 330UH 3A 180 MOHM TH Würth Elektronik |
0 |
|
规格书 |
WE-GI | Nonstandard | Bulk | Obsolete | Toroidal | - | 330 µH | ±20% | 3 A | - | - | 180mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | - | - |
|
|
7446412470FIXED IND 470UH 2A 320 MOHM TH Würth Elektronik |
0 |
|
规格书 |
WE-GI | Nonstandard | Bulk | Obsolete | Toroidal | - | 470 µH | ±20% | 2 A | - | - | 320mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | - | - |
|
|
7446611120FIXED IND 120UH 1A 200 MOHM TH Würth Elektronik |
0 |
|
规格书 |
WE-GI | Nonstandard | Bulk | Obsolete | Toroidal | - | 120 µH | ±30% | 1 A | - | - | 200mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.709" L x 0.709" W x 0.512" H (18.00mm x 18.00mm x 13.00mm) | - |
|
|
7446812100FIXED IND 100UH 2A 95 MOHM TH Würth Elektronik |
0 |
|
规格书 |
WE-GI | Nonstandard | Bulk | Obsolete | Toroidal | - | 100 µH | ±30% | 2 A | - | - | 95mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 1.122" L x 1.122" W x 0.669" H (28.50mm x 28.50mm x 17.00mm) | - |
|

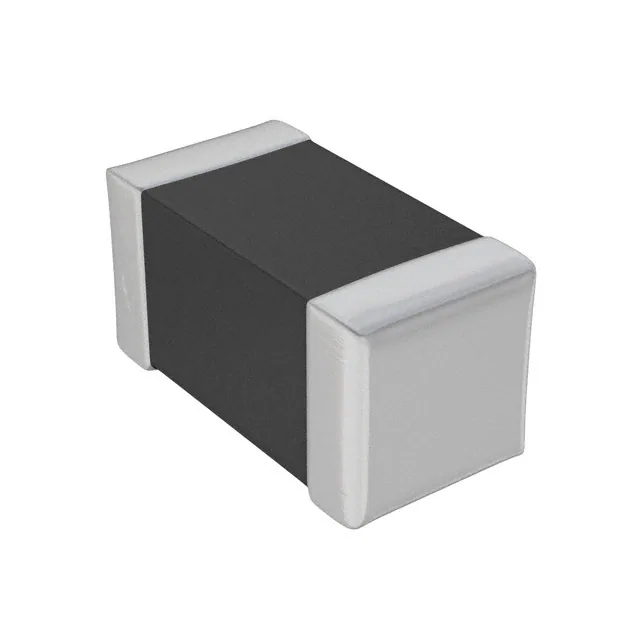

744902012FIXED IND 1.2NH 800MA 200MOHM SM Würth Elektronik |
0 |
|
规格书 |
WE-TCI | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.2 nH | ±0.1nH | 800 mA | - | Unshielded | 200mOhm Max | 15 @ 300MHz | 13GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
