固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74431435012FIXED IND 120NH 31A 0.00028OHM Würth Elektronik |
0 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±20% | 31 A | 71.3A | Shielded | 0.28mOhm | - | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1435 | 0.537" L x 0.531" W (13.65mm x 13.50mm) | 0.146" (3.70mm) |
|
|
74431435018FIXED IND 180NH 31A 0.00028OHM Würth Elektronik |
0 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 180 nH | ±20% | 31 A | 58.4A | Shielded | 0.28mOhm | - | 63MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1435 | 0.537" L x 0.531" W (13.65mm x 13.50mm) | 0.146" (3.70mm) |
|

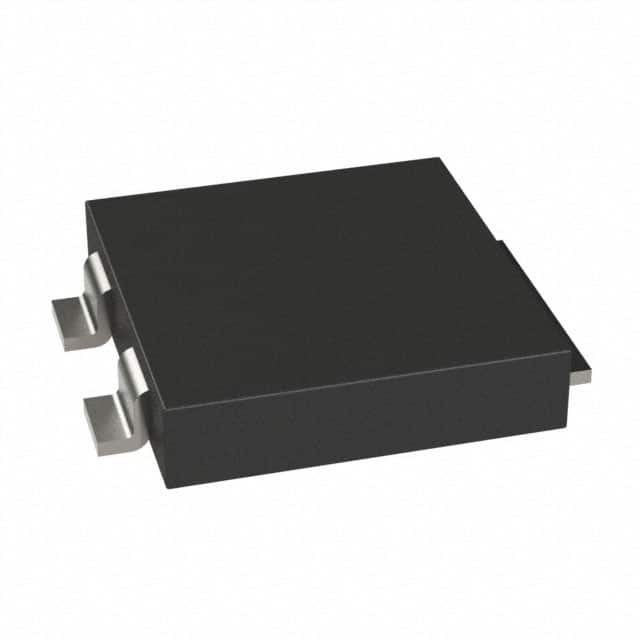

74431323016FIXED IND 160NH 26A 0.0007OHM SM Würth Elektronik |
0 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 160 nH | ±15% | 26 A | 35.1A | Shielded | 0.7mOhm | - | 113MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1323 | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.091" (2.30mm) |
|
|
74431323012FIXED IND 120NH 26A 0.0007OHM SM Würth Elektronik |
0 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±15% | 26 A | 47.8A | Shielded | 0.7mOhm | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1323 | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.091" (2.30mm) |
|
7843340033FIXED IND 330NH 21A 2.1MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 21 A | 36A | Shielded | 2.1mOhm Max | - | 196MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 8090 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
|
7843340047FIXED IND 470NH 19A 2.8MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 19 A | 29.7A | Shielded | 2.8mOhm Max | - | 146MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 8090 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
831751500FIXED IND 1.5UH 20A 4.1 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 1.5 µH | ±10% | 20 A | 45A | Shielded | 4.1mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - |
|
784775022FIXED IND 2.2UH 6A 10 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6 A | 6A | Unshielded | 10mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775033FIXED IND 3.3UH 4.9A 14 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.9 A | 4.9A | Unshielded | 14mOhm Max | - | 57MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

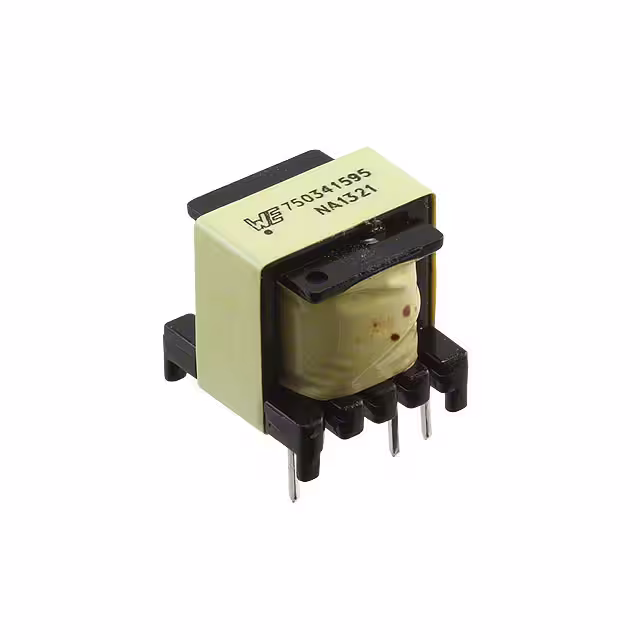

750341595FIXED IND 700UH 1.329 OHM TH Würth Elektronik |
0 |
|
规格书 |
MID-DC16US | Radial, Vertical, 4 Leads | Tray | Active | - | - | 700 µH | ±5% | - | - | - | 1.329Ohm Max | - | - | - | -40°C ~ 125°C | 20 kHz | - | Through Hole | - | 0.580" L x 0.580" W (14.73mm x 14.73mm) | 0.600" (15.24mm) |
