固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447471682FIXED IND 6.8MH 240MA 10 OHM TH Würth Elektronik |
71 |
|
规格书 |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 240 mA | 180mA | Shielded | 10Ohm Max | - | 540kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
744104FIXED IND 167UH 1.35A 400MOHM TH Würth Elektronik |
50 |
|
规格书 |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 167 µH | ±20% | 1.35 A | 720mA | Unshielded | 400mOhm Max | - | 4.1MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.689" Dia x 0.315" W (17.50mm x 8.00mm) | - |
|

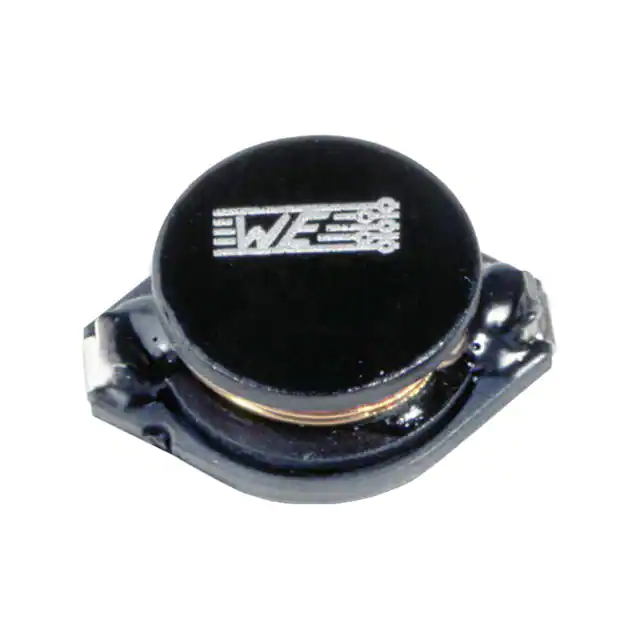

74458215FIXED IND 150UH 1.5A 250MOHM SMD Würth Elektronik |
76 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.5 A | 2.7A | Unshielded | 250mOhm Max | - | 4.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|

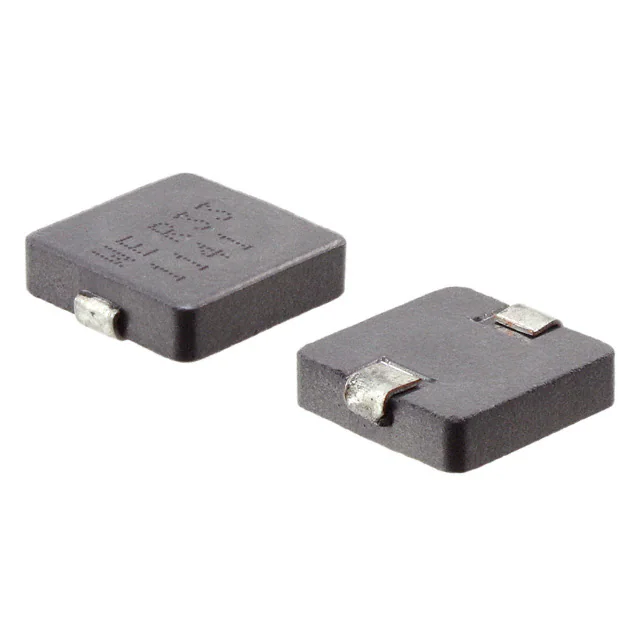

744373770056FIXED IND 560NH 18.5A 0.0017OHM Würth Elektronik |
58 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 560 nH | ±20% | 18.5 A | 42.8A | Shielded | 1.7mOhm Max | - | 59MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
744373770022FIXED IND 220NH 25A 0.0009OHM SM Würth Elektronik |
51 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±20% | 25 A | 57.4A | Shielded | 0.9mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
744116FIXED IND 345UH 2.1A 200 MOHM TH Würth Elektronik |
66 |
|
规格书 |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 345 µH | ±20% | 2.1 A | 500mA | Unshielded | 200mOhm Max | - | 1.8MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.728" Dia x 0.374" W (18.50mm x 9.50mm) | - |
|
74459222FIXED IND 220UH 1.2A 0.47OHM SMD Würth Elektronik |
62 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 220 µH | ±20% | 1.2 A | 1.9A | Shielded | 470mOhm Max | - | 3.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
|
78433391500WE-CHSA PERFORMANCE SMD HIGH CUR Würth Elektronik |
52 |
|
规格书 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 15 µH | ±20% | 4.3 A | 11.3A | Shielded | 60.9mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|

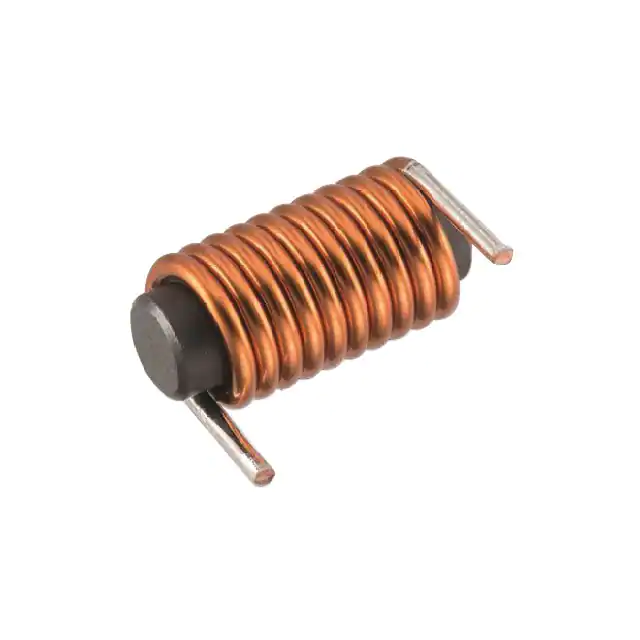

7847132060WE-RCIT ROD CORE INDUCTOR THT 6. Würth Elektronik |
93 |
|
规格书 |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Tray | Active | Wirewound | - | 6 µH | ±25% | 15 A | 45A | Unshielded | 3.5mOhm | - | 55MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.551" Dia x 1.181" L (14.00mm x 30.00mm) | - |
|
|
78433290360WE-CHSA PERFORMANCE SMD HIGH CUR Würth Elektronik |
77 |
|
规格书 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 3.6 µH | ±20% | 12.2 A | 20.6A | Shielded | 8.2mOhm Max | - | 48MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
