固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

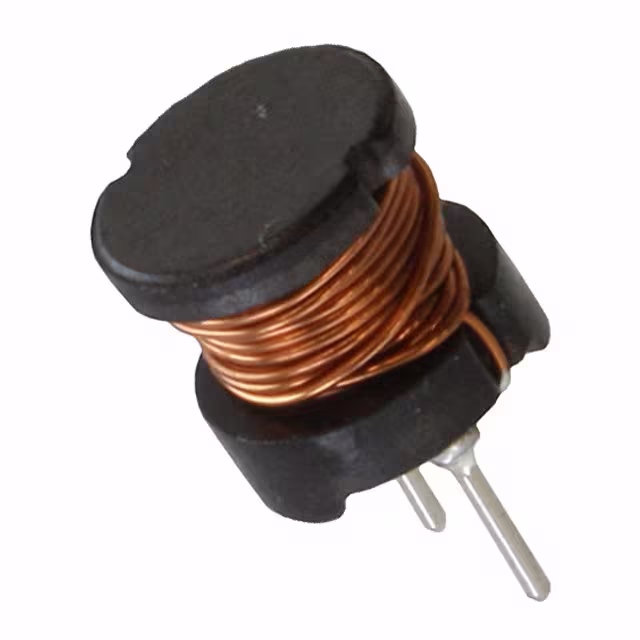

744779168FIXED IND 68UH 1.4A 280 MOHM TH Würth Elektronik |
31 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.4 A | 720mA | Unshielded | 280mOhm Max | - | 9.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
744383360068FIXED IND 680NH 4.5A 27 MOHM SMD Würth Elektronik |
1,036 |
|
规格书 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 4.5 A | 6.2A | Shielded | 27mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3020 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
744053005FIXED IND 5.3UH 2.3A 40 MOHM SMD Würth Elektronik |
462 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.3 µH | ±30% | 2.3 A | 1.9A | Shielded | 40mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
7447211332FIXED IND 3.3MH 370MA 3.6 OHM TH Würth Elektronik |
47 |
|
规格书 |
WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 3.3 mH | ±5% | 370 mA | 520mA | Unshielded | 3.6Ohm Max | - | 500kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|
|
7447211472FIXED IND 4.7MH 310MA 5.1 OHM TH Würth Elektronik |
44 |
|
规格书 |
WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 4.7 mH | ±5% | 310 mA | 430mA | Unshielded | 5.1Ohm Max | - | 410kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|
7447452472FIXED IND 4.7MH 230MA 7 OHM TH Würth Elektronik |
42 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 230 mA | 200mA | Unshielded | 7Ohm Max | - | 550kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
|
7447211101FIXED IND 100UH 2.2A 115 MOHM TH Würth Elektronik |
40 |
|
规格书 |
WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 100 µH | ±10% | 2.2 A | 2.8A | Unshielded | 115mOhm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|

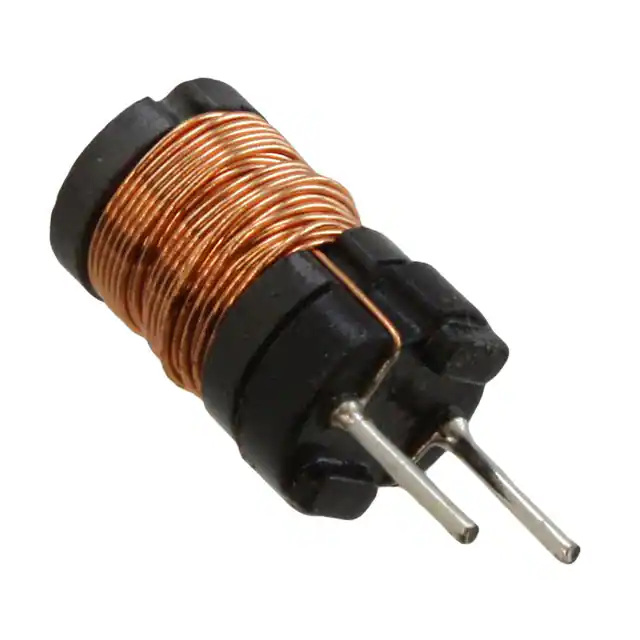

744743331FIXED IND 330UH 740MA 1.2 OHM TH Würth Elektronik |
53 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 740 mA | 1A | Unshielded | 1.2Ohm Max | - | 2.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
|
|
7447452683FIXED IND 68MH 50MA 106 OHM TH Würth Elektronik |
37 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±5% | 50 mA | 70mA | Unshielded | 106Ohm Max | - | 160kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|

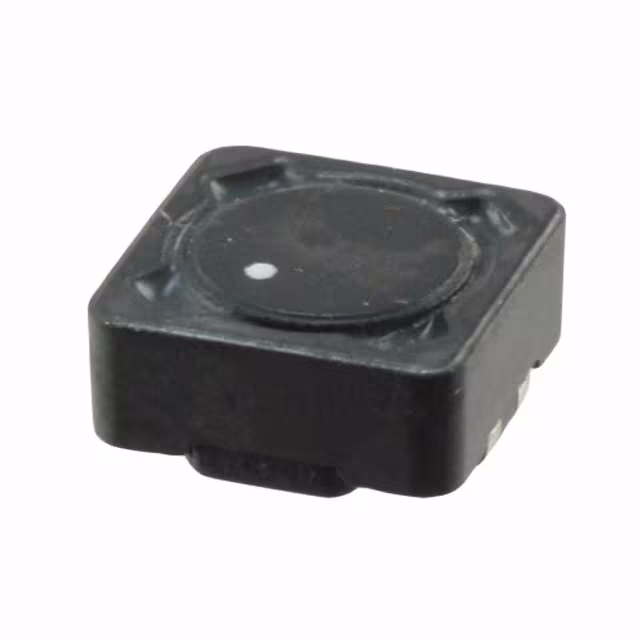

7447745220FIXED IND 22UH 1.05A 330MOHM SMD Würth Elektronik |
33 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.05 A | 1.2A | Unshielded | 330mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
