固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447720150FIXED IND 15UH 2.4A 45 MOHM TH Würth Elektronik |
127 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.4 A | 3A | Unshielded | 45mOhm Max | - | 16.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772331FIXED IND 330UH 510MA 700MOHM TH Würth Elektronik |
35 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 510 mA | 950mA | Unshielded | 700mOhm Max | - | 2.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
744764027FIXED IND 2.7UH 290MA 1.1OHM SMD Würth Elektronik |
900 |
|
规格书 |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 290 mA | - | Unshielded | 1.1Ohm Max | 30 @ 7.96MHz | 80MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

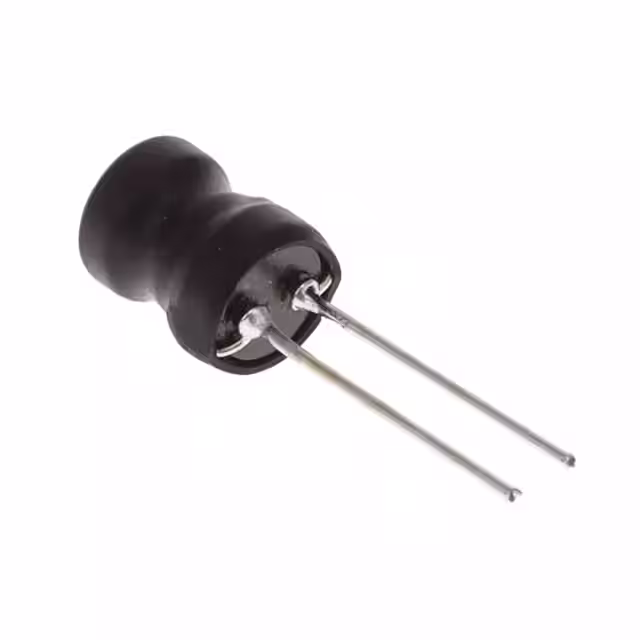

7447728FIXED IND 10UH 550MA 50 MOHM TH Würth Elektronik |
314 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 550 mA | - | Unshielded | 50mOhm Max | 60 @ 2.52MHz | 20MHz | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.268" Dia (6.80mm) | 0.512" (13.00mm) |
|
74404064010FIXED IND 1UH 5.14A 11 MOHM SMD Würth Elektronik |
30 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 5.14 A | 11A | Shielded | 11mOhm | - | 159MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

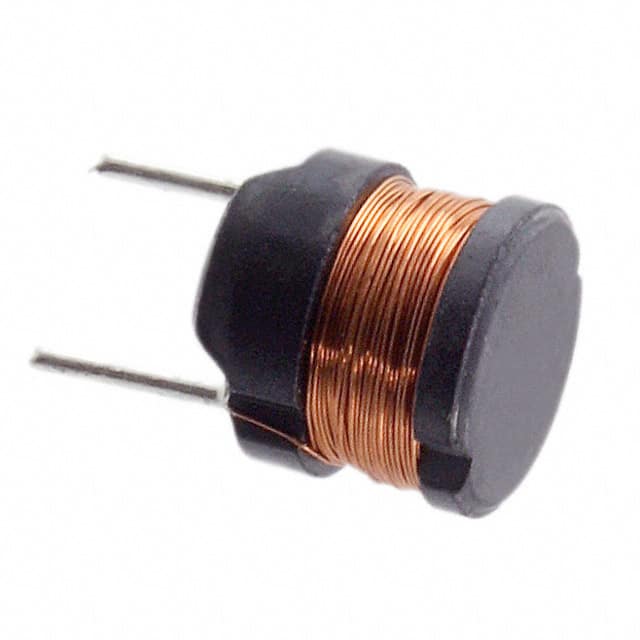

744730392FIXED IND 3.9MH 180MA 12 OHM TH Würth Elektronik |
70 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±5% | 180 mA | 200mA | Unshielded | 12Ohm Max | - | 1.04MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

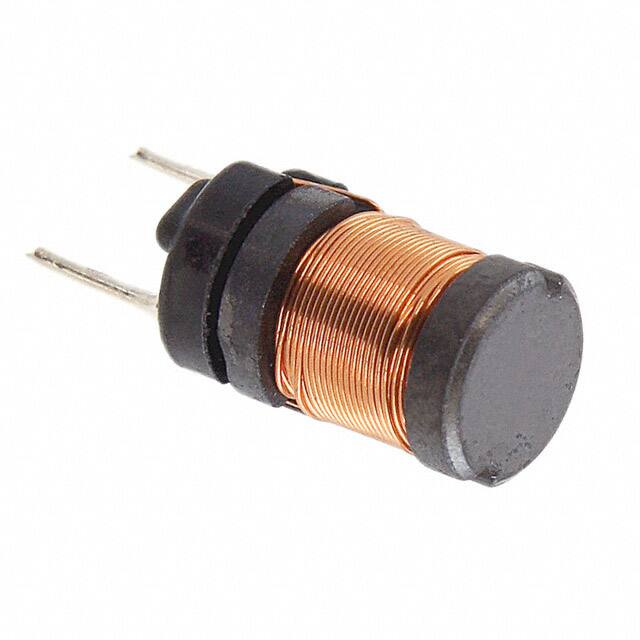

768772471FIXED IND 470UH 600MA 1.32OHM TH Würth Elektronik |
97 |
|
规格书 |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 600 mA | 900mA | Unshielded | 1.32Ohm Max | - | 2.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
744042005FIXED IND 5.6UH 1.64A 90MOHM SMD Würth Elektronik |
812 |
|
规格书 |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 1.64 A | 1.35A | Shielded | 90mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
744052471FIXED IND 470UH 140MA 5.5OHM SMD Würth Elektronik |
99 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±30% | 140 mA | 180mA | Shielded | 5.5Ohm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|
744741102FIXED IND 1MH 290MA 6 OHM TH Würth Elektronik |
88 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 290 mA | 300mA | Unshielded | 6Ohm Max | - | 2.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
