固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744762368AFIXED IND 6.8UH 165MA 2.8OHM SMD Würth Elektronik |
827 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 165 mA | - | Unshielded | 2.8Ohm Max | 20 @ 7.96MHz | 39MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

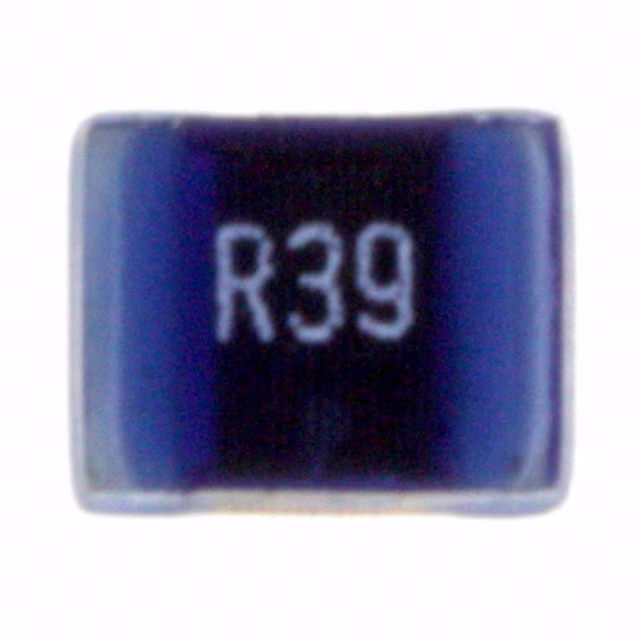

744762239AFIXED IND 390NH 470MA 1.06OHM SM Würth Elektronik |
775 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 470 mA | - | Unshielded | 1.06Ohm Max | 45 @ 100MHz | 530MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744758347AFIXED IND 4.7UH 400MA 1.65OHM SM Würth Elektronik |
438 |
|
规格书 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 400 mA | - | Unshielded | 1.65Ohm Max | 20 @ 7.96MHz | 60MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

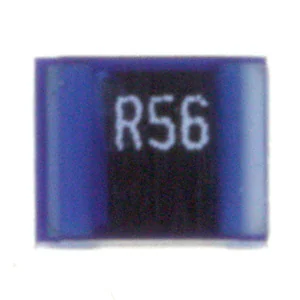

744762256AFIXED IND 560NH 310MA 1.5OHM SMD Würth Elektronik |
304 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±5% | 310 mA | - | Unshielded | 1.5Ohm Max | 45 @ 100MHz | 430MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744766168FIXED IND 68UH 130MA 6 OHM SMD Würth Elektronik |
205 |
|
规格书 |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 130 mA | - | Unshielded | 6Ohm Max | 50 @ 2.52MHz | 10MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
744762312AFIXED IND 1.2UH 230MA 1.3OHM SMD Würth Elektronik |
175 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 230 mA | - | Unshielded | 1.3Ohm Max | 20 @ 7.96MHz | 280MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

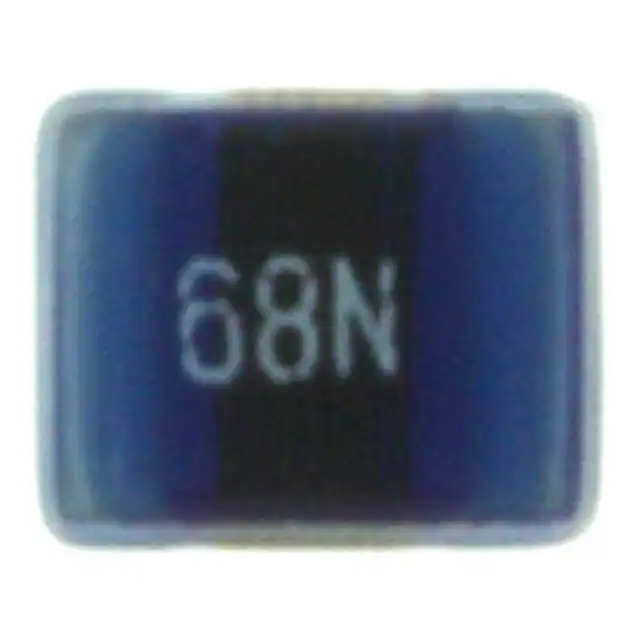

744762168AFIXED IND 68NH 1A 150 MOHM SMD Würth Elektronik |
158 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 1 A | - | Unshielded | 150mOhm Max | 60 @ 350MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744764115FIXED IND 15UH 130MA 2.8 OHM SMD Würth Elektronik |
1,952 |
|
规格书 |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 130 mA | - | Unshielded | 2.8Ohm Max | 30 @ 2.52MHz | 26MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
744764139FIXED IND 39UH 65MA 6.4 OHM SMD Würth Elektronik |
956 |
|
规格书 |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 65 mA | - | Unshielded | 6.4Ohm Max | 30 @ 2.52MHz | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
7447640033FIXED IND 330NH 450MA 400MOHM SM Würth Elektronik |
980 |
|
规格书 |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±10% | 450 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 580MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
