固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78477620FIXED IND 100UH 1.02A 350MOHM SM Würth Elektronik |
500 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.02 A | 1.1A | Unshielded | 350mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|

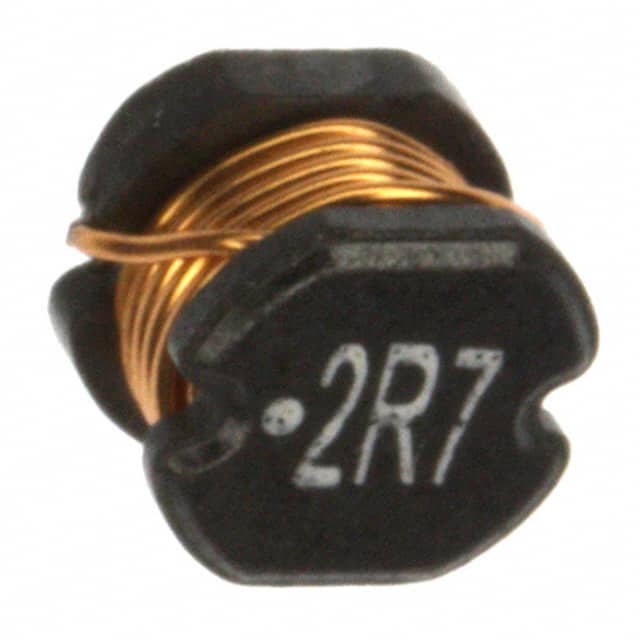

744774027FIXED IND 2.7UH 4A 45 MOHM SMD Würth Elektronik |
376 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 4 A | 8A | Unshielded | 45mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
78477510FIXED IND 10UH 2.3A 70 MOHM SMD Würth Elektronik |
363 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.3 A | 2.95A | Unshielded | 70mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
78477520FIXED IND 100UH 770MA 430MOHM SM Würth Elektronik |
248 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 770 mA | 860mA | Unshielded | 430mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744306020FIXED IND 200NH 25A 0.00026OHM Würth Elektronik |
645 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 200 nH | ±20% | 25 A | 36.1A | Shielded | 0.26mOhm | - | 350MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1052 | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.217" (5.50mm) |
|
|

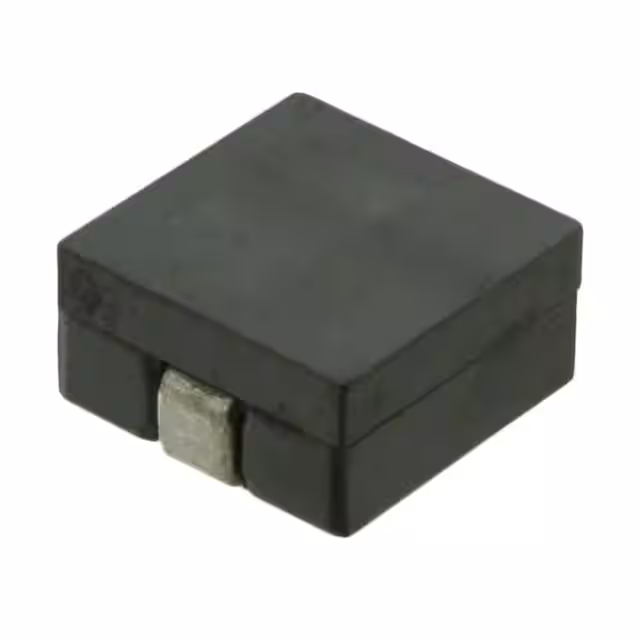

744306030FIXED IND 300NH 25A 0.00026OHM Würth Elektronik |
475 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 300 nH | ±20% | 25 A | 25A | Shielded | 0.26mOhm | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1052 | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.217" (5.50mm) |
|
744307016FIXED IND 160NH 26A 0.00029OHM Würth Elektronik |
354 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 160 nH | ±20% | 26 A | 51.7A | Shielded | 0.29mOhm | - | 600MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7070 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.295" (7.50mm) |
|
744308025FIXED IND 250NH 25A 0.00037OHM Würth Elektronik |
239 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 250 nH | ±20% | 25 A | 46.5A | Shielded | 0.37mOhm | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1070 | 0.398" L x 0.276" W (10.10mm x 7.00mm) | 0.276" (7.00mm) |
|
7687480182WE-TI HV RADIAL LEADED WIRE WOUN Würth Elektronik |
163 |
|
规格书 |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1.8 mH | ±5% | 500 mA | 680mA | Unshielded | 2.1Ohm Max | - | 1.1MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
7440700012FIXED IND 1.2UH 4.6A 16.5MOHM SM Würth Elektronik |
1,154 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 4.6 A | 4.2A | Shielded | 16.5mOhm Max | - | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.079" (2.00mm) |
