固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784787181WE-PD2SA SMT SHIELDED POWER INDU Würth Elektronik |
740 |
|
规格书 |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±25% | 680 mA | 620mA | Shielded | 794mOhm Max | - | 3.8MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
74438313022FIXED IND 2.2UH 850MA 388MOHM SM Würth Elektronik |
8,926 |
|
规格书 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±30% | 850 mA | 2.5A | Shielded | 388mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|

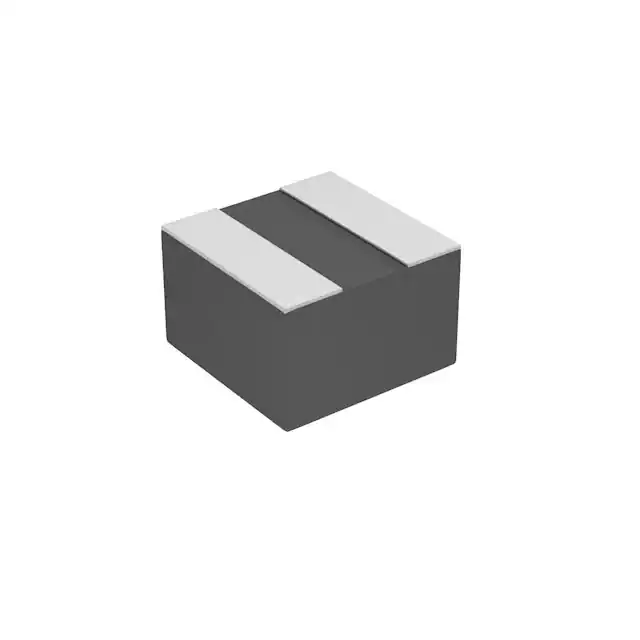

744383130082FIXED IND 820NH 1.4A 144MOHM SMD Würth Elektronik |
2,989 |
|
规格书 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 820 nH | ±30% | 1.4 A | 3.6A | Shielded | 144mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
744383130068FIXED IND 680NH 1.5A 126MOHM SMD Würth Elektronik |
2,476 |
|
规格书 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±30% | 1.5 A | 3.8A | Shielded | 126mOhm Max | - | 135MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
744383130056FIXED IND 560NH 1.6A 113MOHM SMD Würth Elektronik |
2,395 |
|
规格书 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±30% | 1.6 A | 4A | Shielded | 113mOhm Max | - | 150MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
744065470FIXED IND 47UH 1.4A 230 MOHM SMD Würth Elektronik |
1,593 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.4 A | 1.15A | Shielded | 230mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065150FIXED IND 15UH 2.2A 90 MOHM SMD Würth Elektronik |
983 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.2 A | 2.25A | Shielded | 90mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065121FIXED IND 120UH 900MA 560MOHM SM Würth Elektronik |
544 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±30% | 900 mA | 850mA | Shielded | 560mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065560FIXED IND 56UH 1.25A 270MOHM SMD Würth Elektronik |
471 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±30% | 1.25 A | 1.1A | Shielded | 270mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
744774218FIXED IND 180UH 420MA 1.38OHM SM Würth Elektronik |
4,327 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 420 mA | 500mA | Unshielded | 1.38Ohm Max | - | 5.8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
