固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784774182FIXED IND 82UH 600MA 600MOHM SMD Würth Elektronik |
4,143 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 600 mA | 720mA | Unshielded | 600mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

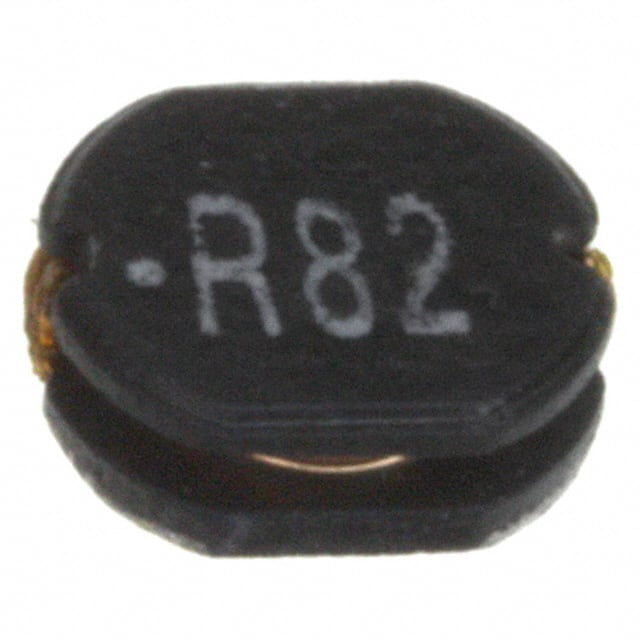

74477450082FIXED IND 820NH 5.4A 14 MOHM SMD Würth Elektronik |
3,035 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 5.4 A | 5.8A | Unshielded | 14mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
|
784774115FIXED IND 15UH 1.53A 140MOHM SMD Würth Elektronik |
2,988 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.53 A | 1.9A | Unshielded | 140mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

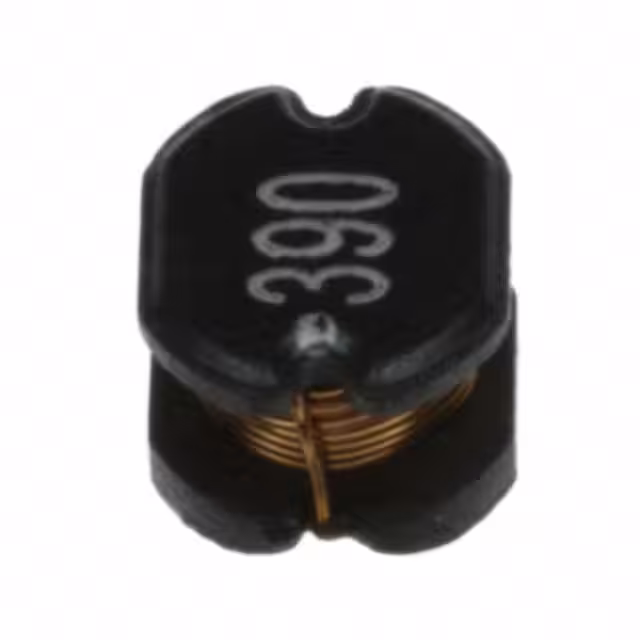

744774139FIXED IND 39UH 940MA 320MOHM SMD Würth Elektronik |
2,355 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±15% | 940 mA | 1.1A | Unshielded | 320mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
7447745012FIXED IND 1.2UH 4.8A 21 MOHM SMD Würth Elektronik |
1,813 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 4.8 A | 4.6A | Unshielded | 21mOhm Max | - | 96MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
|
784774068FIXED IND 6.8UH 2.4A 82 MOHM SMD Würth Elektronik |
1,512 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.4 A | 4.5A | Unshielded | 82mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
784774118FIXED IND 18UH 1.45A 150MOHM SMD Würth Elektronik |
1,500 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.45 A | 1.69A | Unshielded | 150mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
784774156FIXED IND 56UH 770MA 420MOHM SMD Würth Elektronik |
1,500 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 770 mA | 900mA | Unshielded | 420mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
784774218FIXED IND 180UH 420MA 1.38OHM SM Würth Elektronik |
1,500 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 420 mA | 500mA | Unshielded | 1.38Ohm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
784774133FIXED IND 33UH 1.09A 230MOHM SMD Würth Elektronik |
1,494 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.09 A | 1.17A | Unshielded | 230mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
