固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744065330FIXED IND 33UH 1.6A 180 MOHM SMD Würth Elektronik |
819 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.6 A | 1.3A | Shielded | 180mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065151FIXED IND 150UH 850MA 680MOHM SM Würth Elektronik |
520 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 850 mA | 750mA | Shielded | 680mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
744774212FIXED IND 120UH 490MA 930MOHM SM Würth Elektronik |
5,881 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 490 mA | 630mA | Unshielded | 930mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

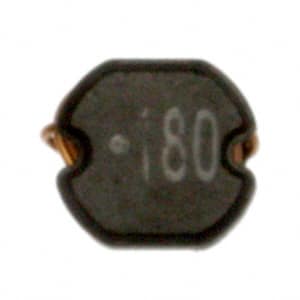

744774118FIXED IND 18UH 1.45A 150MOHM SMD Würth Elektronik |
5,506 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.45 A | 1.69A | Unshielded | 150mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

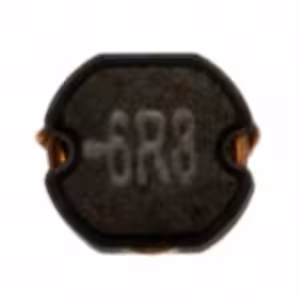

744774068FIXED IND 6.8UH 2.4A 82 MOHM SMD Würth Elektronik |
4,202 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.4 A | 5A | Unshielded | 82mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

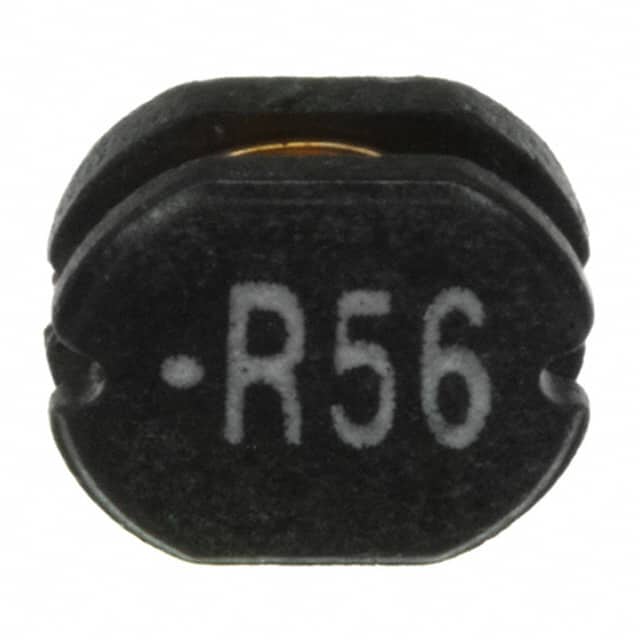

74477450056FIXED IND 560NH 6.5A 10 MOHM SMD Würth Elektronik |
2,249 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±20% | 6.5 A | 6.5A | Unshielded | 10mOhm Max | - | 145MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|

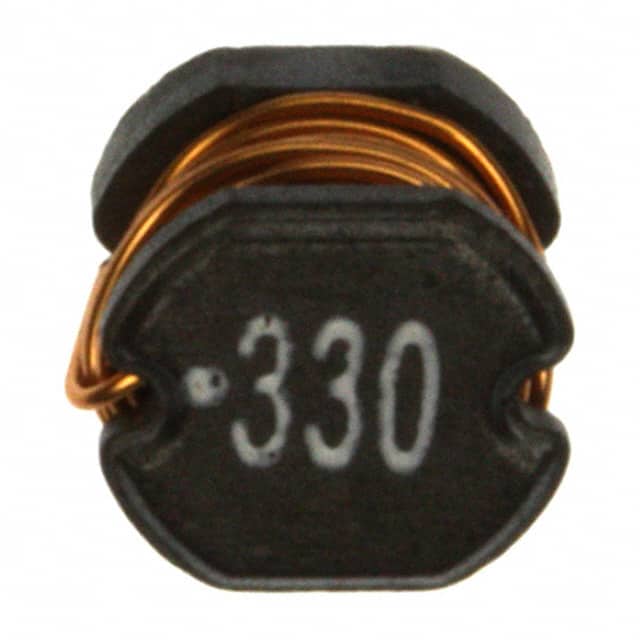

744774133FIXED IND 33UH 1.09A 230MOHM SMD Würth Elektronik |
1,448 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 1.09 A | 1.17A | Unshielded | 230mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
784774127FIXED IND 27UH 1.19A 200MOHM SMD Würth Elektronik |
1,448 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.19 A | 1.4A | Unshielded | 200mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
784774006FIXED IND 600NH 8.2A 18 MOHM SMD Würth Elektronik |
1,435 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 600 nH | ±20% | 8.2 A | 13.5A | Unshielded | 18mOhm Max | - | 210MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

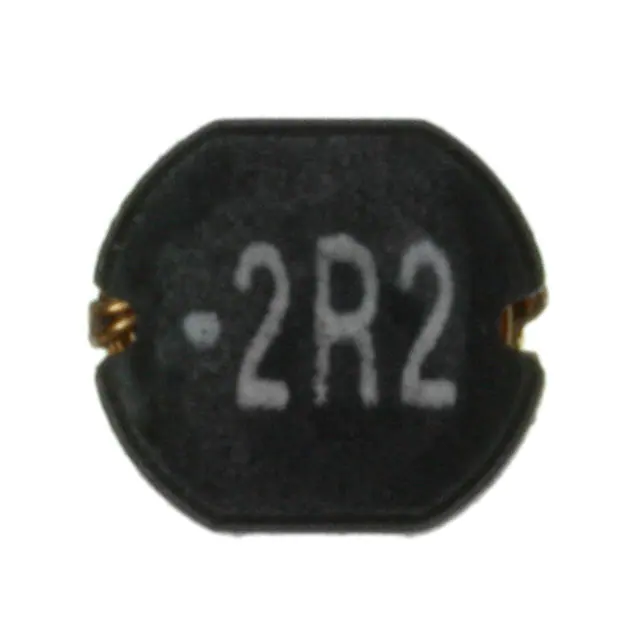

7447745022FIXED IND 2.2UH 3.6A 36 MOHM SMD Würth Elektronik |
1,319 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 3.6 A | 3.5A | Unshielded | 36mOhm Max | - | 64MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
