固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78438356033FIXED IND 3.3UH 3.6A 48 MOHM SMD Würth Elektronik |
2,305 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 3.3 µH | ±20% | 3.6 A | 5.5A | Shielded | 48mOhm Max | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
78438357015FIXED IND 1.5UH 6.2A 20MOHM SMD Würth Elektronik |
1,400 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | 1.5 µH | ±20% | 6.2 A | 8.5A | Shielded | 20mOhm Max | - | 48MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
|
784383560056FIXED IND 560NH 8.5A 8.4MOHM SMD Würth Elektronik |
1,090 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 560 nH | ±30% | 8.5 A | 10.8A | Shielded | 8.4mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
784383560068FIXED IND 680NH 8.2A 9 MOHM SMD Würth Elektronik |
1,004 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 680 nH | ±20% | 8.2 A | 9.4A | Shielded | 9mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
78438356012FIXED IND 1.2UH 5.8A 18 MOHM SMD Würth Elektronik |
985 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.2 µH | ±20% | 5.8 A | 9A | Shielded | 18mOhm Max | - | 52MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

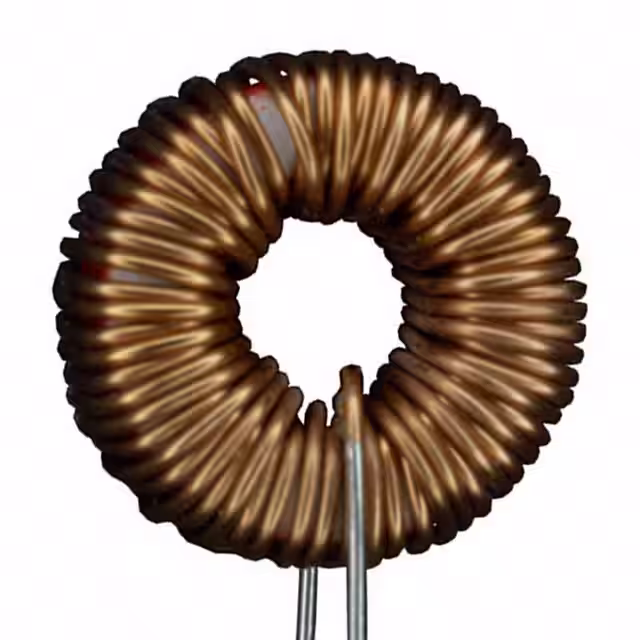

7447028FIXED IND 150UH 1A 130 MOHM TH Würth Elektronik |
230 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 150 µH | ±20% | 1 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.630" Dia x 0.295" W (16.00mm x 7.50mm) | - |
|
744787680FIXED IND 68UH 1.12A 290MOHM SMD Würth Elektronik |
6,576 |
|
规格书 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.12 A | 1A | Shielded | 290mOhm Max | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
744787151FIXED IND 150UH 710MA 719MOHM SM Würth Elektronik |
4,215 |
|
规格书 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 710 mA | 700mA | Shielded | 719mOhm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|

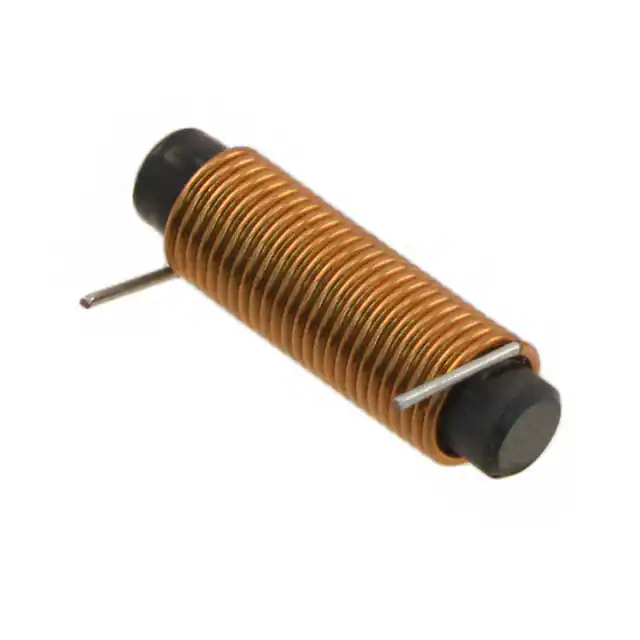

744711003FIXED IND 10UH 2.5A 33 MOHM TH Würth Elektronik |
1,149 |
|
规格书 |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±25% | 2.5 A | - | Unshielded | 33mOhm | - | 45MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.205" Dia x 0.728" L (5.20mm x 18.50mm) | - |
|
|
744787820FIXED IND 82UH 1.04A 328MOHM SMD Würth Elektronik |
1,046 |
|
规格书 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.04 A | 900mA | Shielded | 328mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
