固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

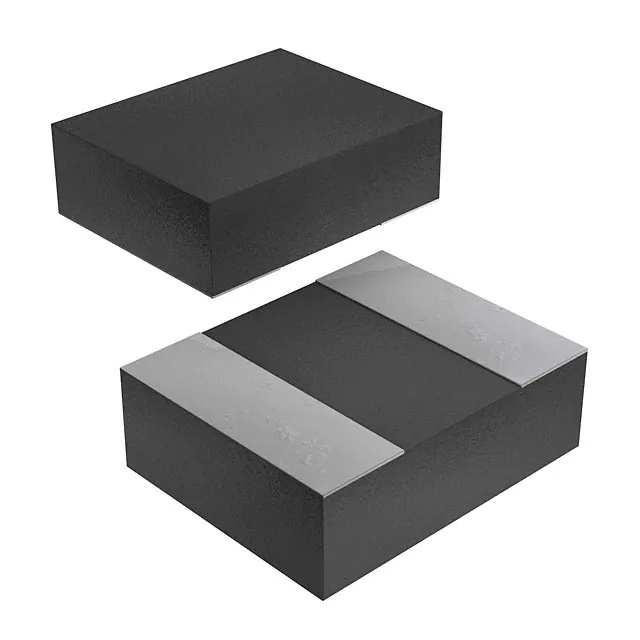

78438336047FIXED IND 4.7UH 1.9A 158MOHM SMD Würth Elektronik |
2,541 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 4.7 µH | ±20% | 1.9 A | 3.9A | Shielded | 158mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.079" (2.00mm) |
|
744773115FIXED IND 15UH 1.2A 235 MOHM SMD Würth Elektronik |
5,657 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.2 A | 1.46A | Unshielded | 235mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
744773027FIXED IND 2.7UH 2.25A 79MOHM SMD Würth Elektronik |
4,123 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 2.25 A | 2.97A | Unshielded | 79mOhm Max | - | 72MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
744773082FIXED IND 8.2UH 1.5A 146MOHM SMD Würth Elektronik |
3,848 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.5 A | 1.8A | Unshielded | 146mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
744773056FIXED IND 5.6UH 1.58A 126MOHM SM Würth Elektronik |
2,914 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1.58 A | 2.43A | Unshielded | 126mOhm Max | - | 48MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
784773047FIXED IND 4.7UH 1.82A 110MOHM SM Würth Elektronik |
1,480 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.82 A | 2.46A | Unshielded | 110mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773156FIXED IND 56UH 640MA 937MOHM SMD Würth Elektronik |
1,345 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 640 mA | 750mA | Unshielded | 937mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
784773112FIXED IND 12UH 1.28A 210MOHM SMD Würth Elektronik |
1,315 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.28 A | 1.62A | Unshielded | 210mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

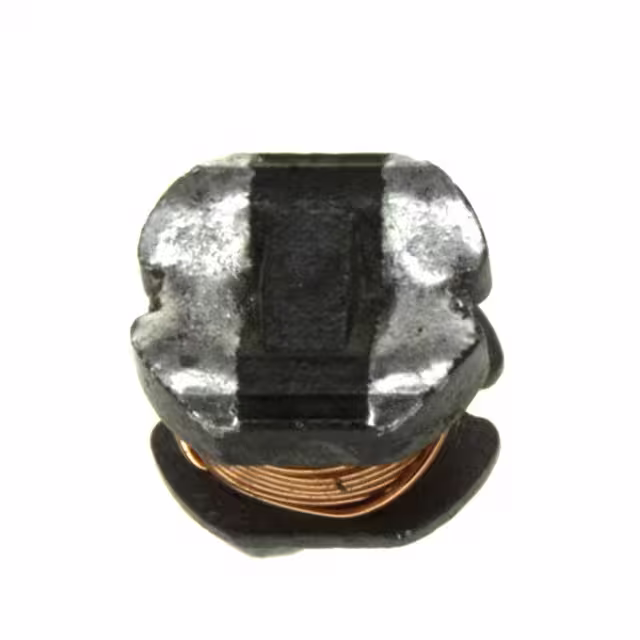

744773156FIXED IND 56UH 640MA 937MOHM SMD Würth Elektronik |
1,077 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 640 mA | 750mA | Unshielded | 937mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
744773139FIXED IND 39UH 770MA 587MOHM SMD Würth Elektronik |
948 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 770 mA | 870mA | Unshielded | 587mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
