固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

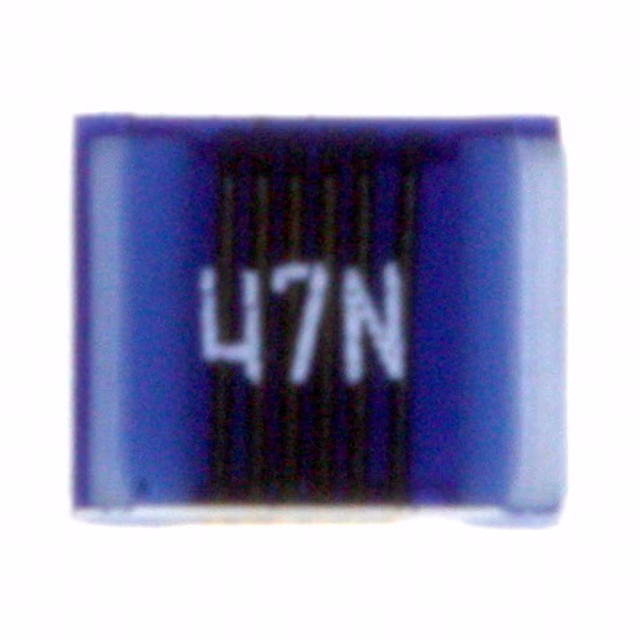

744762147AFIXED IND 47NH 1A 100 MOHM SMD Würth Elektronik |
3,383 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | 60 @ 350MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744762222AFIXED IND 220NH 800MA 450MOHM SM Würth Elektronik |
3,125 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 800 mA | - | Unshielded | 450mOhm Max | 45 @ 100MHz | 730MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
.jpg)
|
744760247AFIXED IND 470NH 500MA 950MOHM SM Würth Elektronik |
2,723 |
|
规格书 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 500 mA | - | Unshielded | 950mOhm Max | 45 @ 100MHz | 375MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|

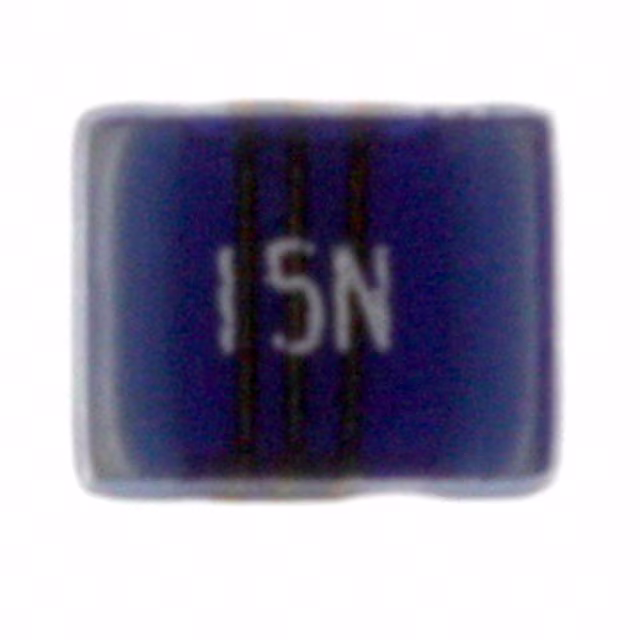

744762115AFIXED IND 15NH 1A 80 MOHM SMD Würth Elektronik |
2,445 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 1 A | - | Unshielded | 80mOhm Max | 60 @ 500MHz | 2.7GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

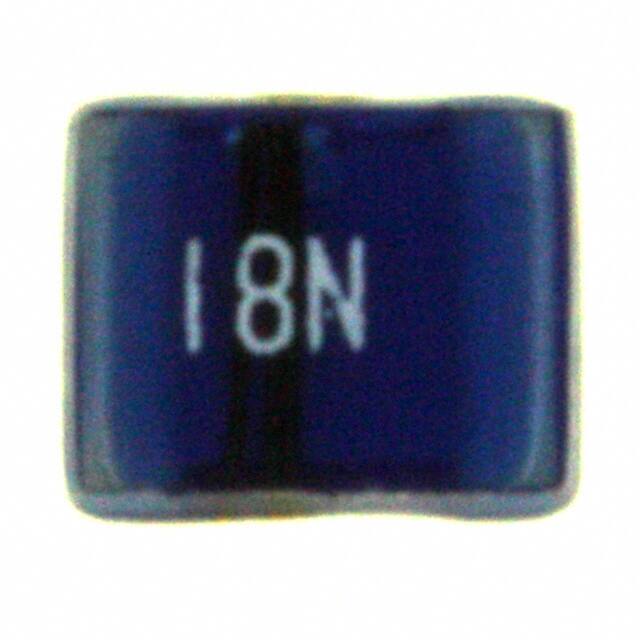

744762118AFIXED IND 18NH 1A 100 MOHM SMD Würth Elektronik |
2,339 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | 60 @ 350MHz | 2.7GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744762356AFIXED IND 5.6UH 170MA 2.6OHM SMD Würth Elektronik |
2,090 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 170 mA | - | Unshielded | 2.6Ohm Max | 20 @ 7.96MHz | 42MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744758339AFIXED IND 3.9UH 420MA 1.5OHM SMD Würth Elektronik |
2,022 |
|
规格书 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 420 mA | - | Unshielded | 1.5Ohm Max | 20 @ 7.96MHz | 105MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

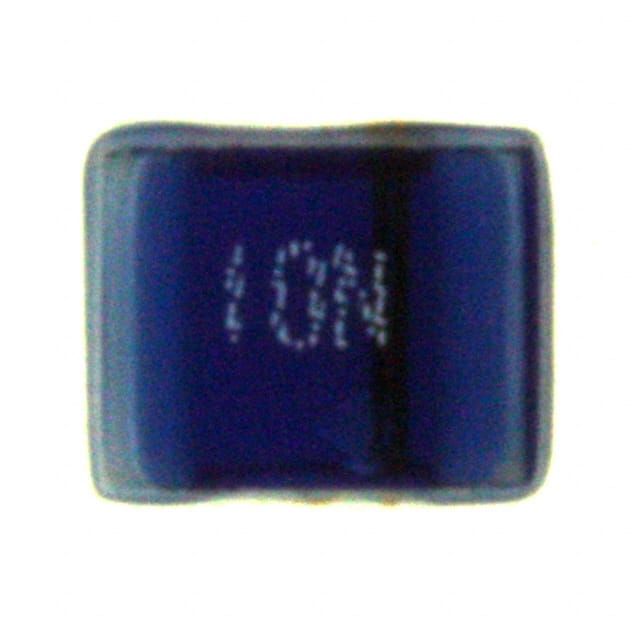

744762110AFIXED IND 10NH 1A 80 MOHM SMD Würth Elektronik |
1,905 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 1 A | - | Unshielded | 80mOhm Max | 50 @ 1GHz | 4.3GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

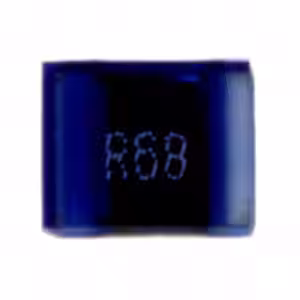

744762268AFIXED IND 680NH 230MA 2.06OHM SM Würth Elektronik |
1,787 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±5% | 230 mA | - | Unshielded | 2.06Ohm Max | 45 @ 100MHz | 380MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744758322AFIXED IND 2.2UH 520MA 1.1OHM SMD Würth Elektronik |
1,755 |
|
规格书 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 520 mA | - | Unshielded | 1.1Ohm Max | 20 @ 7.96MHz | 160MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
