固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744765136AFIXED IND 36NH 320MA 403MOHM SMD Würth Elektronik |
2,859 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±5% | 320 mA | - | Unshielded | 403mOhm Max | 26 @ 250MHz | 2.32GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765051AFIXED IND 5.1NH 800MA 83MOHM SMD Würth Elektronik |
2,856 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±5% | 800 mA | - | Unshielded | 83mOhm Max | 23 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765020AFIXED IND 2NH 1.04A 70 MOHM SMD Würth Elektronik |
2,845 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2 nH | ±0.2nH | 1.04 A | - | Unshielded | 70mOhm Max | 16 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765127AFIXED IND 27NH 400MA 298MOHM SMD Würth Elektronik |
2,781 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 400 mA | - | Unshielded | 298mOhm Max | 26 @ 250MHz | 2.48GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|

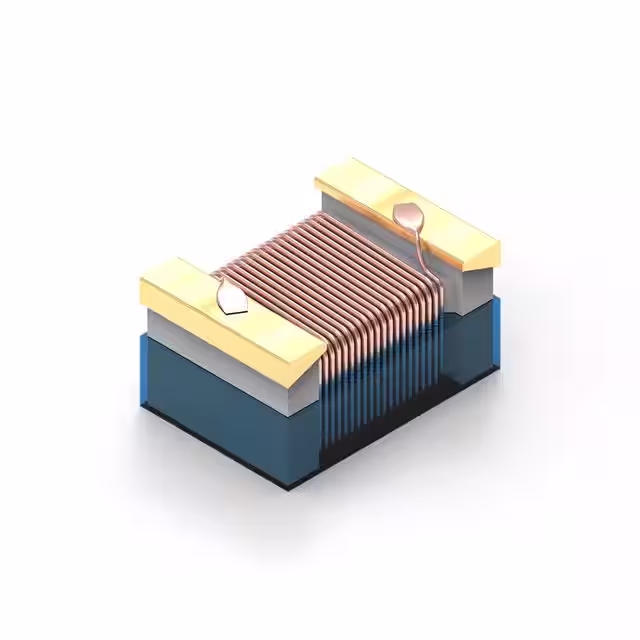

744761282AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
2,411 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±5% | 120 mA | - | Unshielded | 3.2Ohm Max | 15 @ 25MHz | 200MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
744765062AFIXED IND 6.2NH 760MA 83MOHM SMD Würth Elektronik |
2,275 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.2 nH | ±5% | 760 mA | - | Unshielded | 83mOhm Max | 23 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765124AFIXED IND 24NH 400MA 300MOHM SMD Würth Elektronik |
2,220 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 24 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 25 @ 250MHz | 2.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765130AFIXED IND 30NH 400MA 300MOHM SMD Würth Elektronik |
2,200 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 30 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 25 @ 250MHz | 2.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765111AFIXED IND 11NH 640MA 120MOHM SMD Würth Elektronik |
2,186 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 11 nH | ±5% | 640 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 3.68GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|

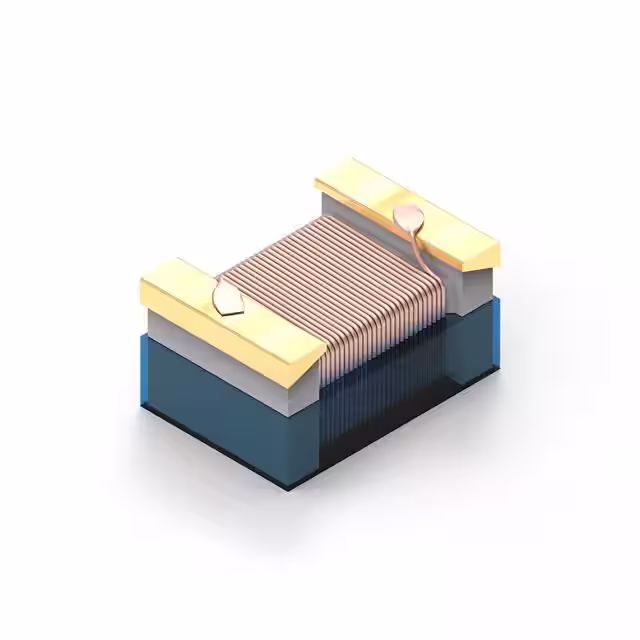

744761247AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
1,902 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±5% | 170 mA | - | Unshielded | 2.1Ohm Max | 15 @ 25MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
