固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744765112AFIXED IND 12NH 640MA 120MOHM SMD Würth Elektronik |
8,162 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 640 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 3.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765068AFIXED IND 6.8NH 680MA 83MOHM SMD Würth Elektronik |
6,540 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 680 mA | - | Unshielded | 83mOhm Max | 20 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765010AFIXED IND 1NH 1.36A 45 MOHM SMD Würth Elektronik |
6,230 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 nH | ±0.2nH | 1.36 A | - | Unshielded | 45mOhm Max | 13 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765113AFIXED IND 13NH 560MA 210MOHM SMD Würth Elektronik |
6,000 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 13 nH | ±5% | 560 mA | - | Unshielded | 210mOhm Max | 24 @ 250MHz | 3.45GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765139AFIXED IND 39NH 320MA 550MOHM SMD Würth Elektronik |
5,771 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 320 mA | - | Unshielded | 550mOhm Max | 25 @ 250MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765022AFIXED IND 2.2NH 960MA 70MOHM SMD Würth Elektronik |
3,977 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 nH | ±0.2nH | 960 mA | - | Unshielded | 70mOhm Max | 18 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|

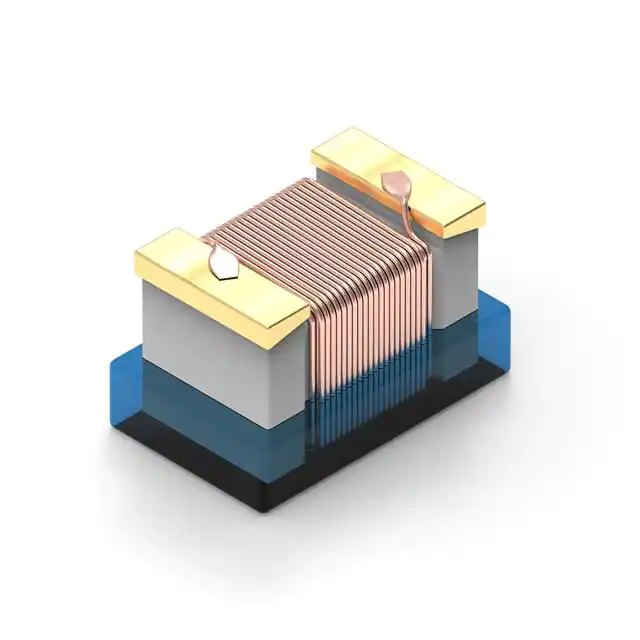

7447603100AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
3,665 |
|
规格书 |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±5% | 180 mA | - | Unshielded | 2.8Ohm Max | 20 @ 50MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
744765039AFIXED IND 3.9NH 840MA 66MOHM SMD Würth Elektronik |
3,323 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 20 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765147AFIXED IND 47NH 100MA 830MOHM SMD Würth Elektronik |
3,237 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 100 mA | - | Unshielded | 830mOhm Max | 26 @ 200MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765036AFIXED IND 3.6NH 840MA 66MOHM SMD Würth Elektronik |
3,000 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.6 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 20 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
