固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FIT68-2-BFIXED IND 71.1UH 3.4A 86.1 MOHM Triad Magnetics |
0 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 71.1 µH | - | 3.4 A | - | Unshielded | 86.1mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
|
FIT68-3-BFIXED IND 54.81UH 4A 59.9MOHM TH Triad Magnetics |
0 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 54.81 µH | - | 4 A | - | Unshielded | 59.9mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
|
FIT68-5-BFIXED IND 33.15UH 5.7A 28.8 MOHM Triad Magnetics |
0 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 33.15 µH | - | 5.7 A | - | Unshielded | 28.8mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
|
FIT68-6-BFIXED IND 24.31UH 6.8A 20.2 MOHM Triad Magnetics |
0 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 24.31 µH | - | 6.8 A | - | Unshielded | 20.2mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
|
FIT68-7-BFIXED IND 18.64UH 8.1A 14.8 MOHM Triad Magnetics |
0 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 18.64 µH | - | 8.1 A | - | Unshielded | 14.8mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
RC-10-BFIXED IND 100UH 2A 98 MOHM TH Triad Magnetics |
0 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2 A | - | Unshielded | 98mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|

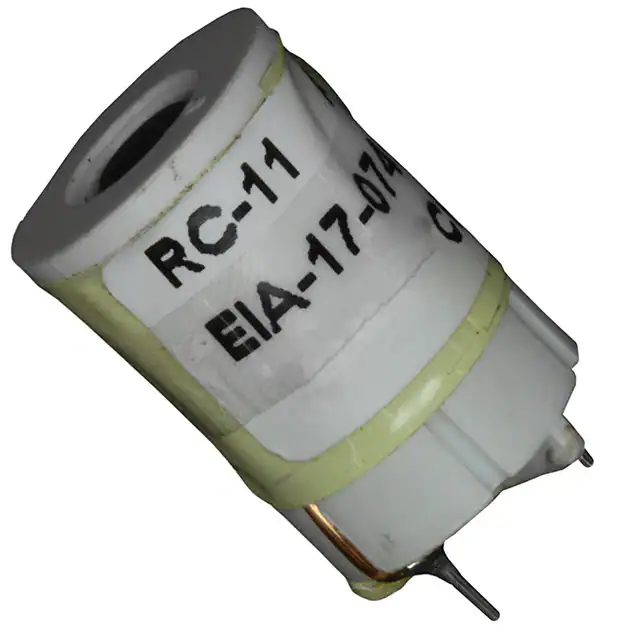

RC-11-BFIXED IND 75UH 2.5A 70 MOHM TH Triad Magnetics |
0 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 75 µH | ±10% | 2.5 A | - | Unshielded | 70mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|

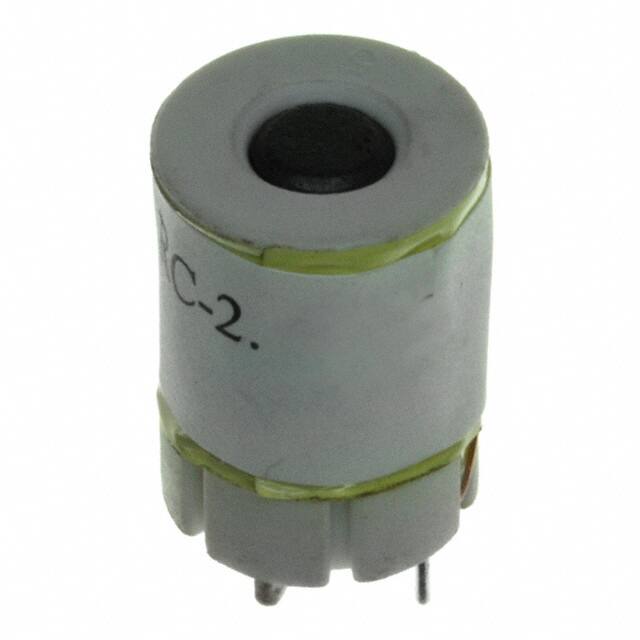

RC-2-BFIXED IND 3.9MH 320MA 3.9 OHM TH Triad Magnetics |
0 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 320 mA | - | Unshielded | 3.9Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
RC-3-BFIXED IND 2.5MH 400MA 2.45OHM TH Triad Magnetics |
0 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.5 mH | ±10% | 400 mA | - | Unshielded | 2.45Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
RC-4-BFIXED IND 1.5MH 500MA 1.53OHM TH Triad Magnetics |
0 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 500 mA | - | Unshielded | 1.53Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
