固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

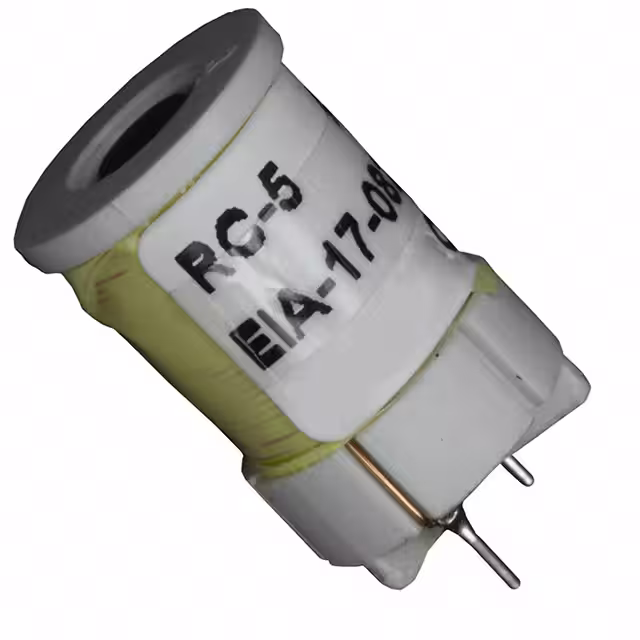

RC-5-BFIXED IND 915UH 625MA 1 OHM TH Triad Magnetics |
0 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 915 µH | ±10% | 625 mA | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|

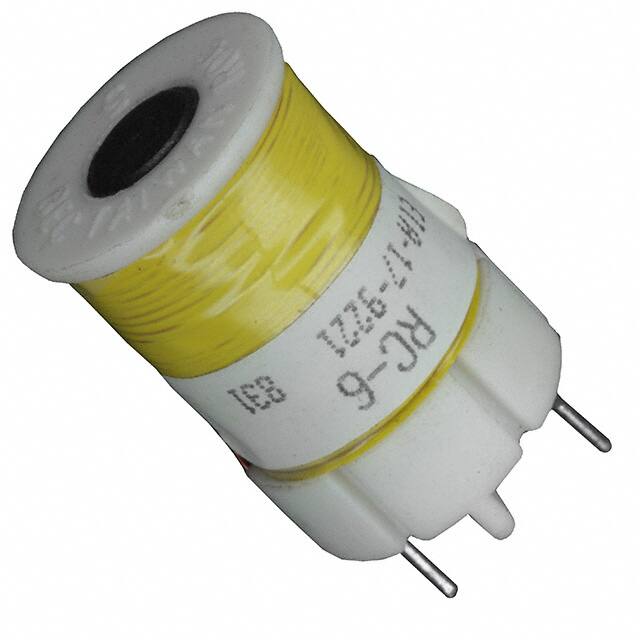

RC-6-BFIXED IND 560UH 800MA 600MOHM TH Triad Magnetics |
0 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 800 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
RC-7-BFIXED IND 450UH 1A 420 MOHM TH Triad Magnetics |
0 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 450 µH | ±10% | 1 A | - | Unshielded | 420mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
RC-8-BFIXED IND 250UH 1.25A 210MOHM TH Triad Magnetics |
0 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 1.25 A | - | Unshielded | 210mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
RC-9-BFIXED IND 200UH 1.6A 180 MOHM TH Triad Magnetics |
0 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 200 µH | ±10% | 1.6 A | - | Unshielded | 180mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
FIT80-5FIXED IND 47.7UH 8.1A 22.5 MOHM Triad Magnetics |
0 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 47.7 µH | - | 8.1 A | - | Unshielded | 22.5mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.975" L x 0.625" W (24.76mm x 15.88mm) | 1.100" (27.94mm) |
|
|
FIT80-6FIXED IND 38.07UH 9.7A 17MOHM TH Triad Magnetics |
0 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 38.07 µH | - | 9.7 A | - | Unshielded | 17mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.975" L x 0.625" W (24.76mm x 15.88mm) | 1.100" (27.94mm) |
|
|
FIT80-1-BFIXED IND 128UH 4A 95.2 MOHM TH Triad Magnetics |
0 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 128 µH | - | 4 A | - | Unshielded | 95.2mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.975" L x 0.625" W (24.76mm x 15.88mm) | 1.100" (27.94mm) |
|
|
FIT80-2-BFIXED IND 107.5UH 4.8A 67.9 MOHM Triad Magnetics |
0 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 107.5 µH | - | 4.8 A | - | Unshielded | 67.9mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.975" L x 0.625" W (24.76mm x 15.88mm) | 1.100" (27.94mm) |
|
|
FIT80-3-BFIXED IND 80.75UH 5.7A 44.8 MOHM Triad Magnetics |
0 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 80.75 µH | - | 5.7 A | - | Unshielded | 44.8mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.975" L x 0.625" W (24.76mm x 15.88mm) | 1.100" (27.94mm) |
