固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AX104R-470FIXED IND 47UH 2.1A 128 MOHM SMD Triad Magnetics |
0 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 2.1 A | - | Shielded | 128mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-680FIXED IND 68UH 1.5A 213 MOHM SMD Triad Magnetics |
0 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.5 A | - | Shielded | 213mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-6R8FIXED IND 6.8UH 4.8A 19.5MOHM SM Triad Magnetics |
0 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.8 A | - | Shielded | 19.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-8R2FIXED IND 8.2UH 4.6A 25 MOHM SMD Triad Magnetics |
0 |
|
规格书 |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 4.6 A | - | Shielded | 25mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
AX02-301R5-TFIXED IND 1.5UH 18A 2.3MOHM SMD Triad Magnetics |
0 |
|
规格书 |
AX02 | 2-SMD, J-Lead | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 18 A | 30A | Shielded | 2.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.524" L x 0.591" W (13.30mm x 15.00mm) | 0.256" (6.50mm) |
|
|
AX02-302R2-TFIXED IND 2.2UH 12A 5.1 MOHM Triad Magnetics |
0 |
|
规格书 |
AX02 | 2-SMD, J-Lead | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 12 A | 24A | Shielded | 5.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.524" L x 0.591" W (13.30mm x 15.00mm) | 0.256" (6.50mm) |
|
AX97-10471FIXED IND 470UH 120MA 11.55 OHM Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 120 mA | - | Unshielded | 11.55Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.287" L x 0.188" W (7.30mm x 4.78mm) | 0.127" (3.23mm) |
|
|
AX97-104R7FIXED IND 4.7UH 1.5A 120MOHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.5 A | - | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.287" L x 0.188" W (7.30mm x 4.78mm) | 0.127" (3.23mm) |
|

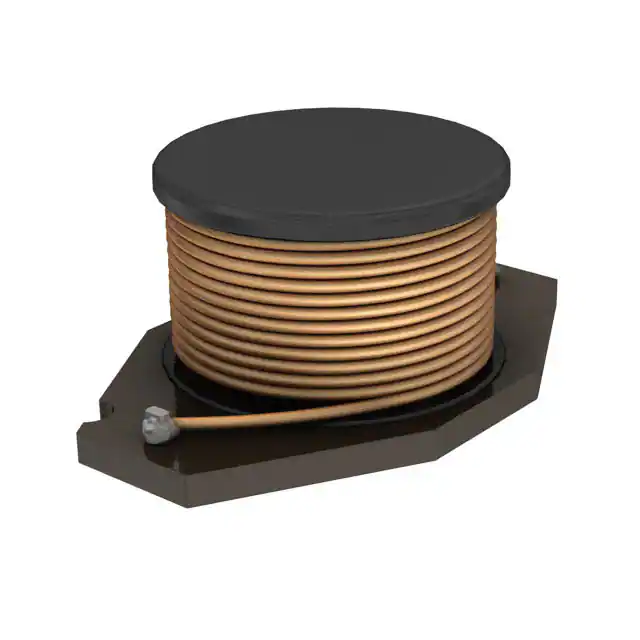

AX97-30100FIXED IND 10UH 4.6A 40 MOHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.6 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
|
AX97-30330FIXED IND 33UH 2.5A 110MOHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.5 A | - | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
