固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR1050-150-RFIXED IND 15UH 3.8A 32.5MOHM SMD |
6,014 |
|
规格书 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.8 A | 3.7A | Shielded | 32.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
PA4341.682ANLTFIXED IND 6.8UH 4.5A 50 MOHM SMD |
5,636 |
|
规格书 |
PA4341.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4.5 A | 6A | Shielded | 50mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
IHLP1212BZEV2R2M5AFIXED IND 2.2UH 4.01A 63.05MOHM |
3,335 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 4.01 A | 2.62A | Shielded | 63.05mOhm Max | - | 42MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
DR125-220-RFIXED IND 22UH 3.7A 39.6MOHM SMD |
3,144 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.7 A | 4.71A | Shielded | 39.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
DR125-331-RFIXED IND 330UH 1.06A 482MOHM SM |
2,088 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.06 A | 1.22A | Shielded | 482mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
DR125-124-RFIXED IND 120MH 60MA 150 OHM SMD |
1,822 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 mH | ±20% | 60 mA | 69mA | Shielded | 150Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SPM5030VT-1R0M-DFIXED IND 1UH 9.4A 0.0096OHM SMD |
1,138 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 9.4 A | 10.4A | Shielded | 9.6mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 5030 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | 0.118" (3.00mm) |
|
|
DR125-151-RFIXED IND 150UH 1.48A 248MOHM SM |
228 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.48 A | 1.81A | Shielded | 248mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
74479262210FIXED IND 1UH 1.2A 195 MOHM SMD |
28,951 |
|
规格书 |
WE-PMCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 1.2 A | 1.7A | Shielded | 195mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|

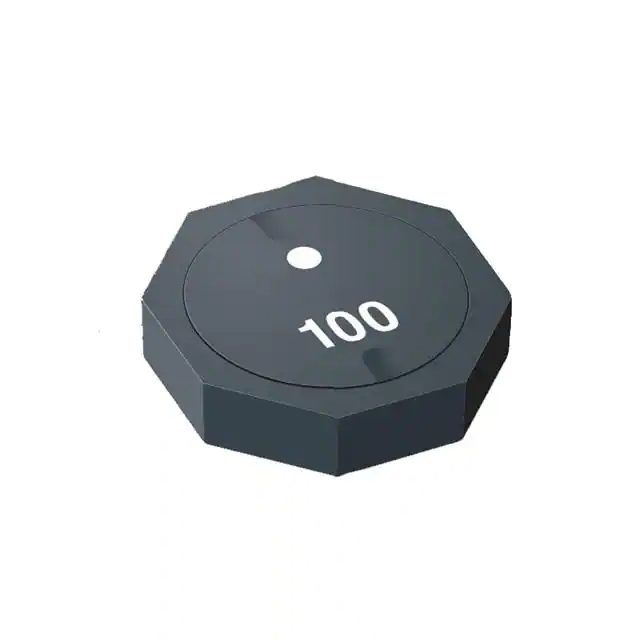

SRU1063-220YFIXED IND 22UH 3A 60 MOHM SMD |
21,396 |
|
规格书 |
SRU1063 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 3 A | 3.2A | Shielded | 60mOhm Max | 15 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.268" (6.80mm) |
|
0830CDMCCDS-4R7MCFIXED IND 4.7UH 6.5A 31 MOHM SMD |
14,412 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 6.5 A | 8.6A | Shielded | 31mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
DRA74-151-RFIXED IND 150UH 661MA 648MOHM SM |
10,733 |
|
规格书 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 661 mA | 748mA | Shielded | 648mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
FP1107R1-R23-RFIXED IND 230NH 55A 0.29MOHM SMD |
10,654 |
|
规格书 |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 230 nH | ±10% | 55 A | 45A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.295" (7.50mm) |
|
UP2B-150-RFIXED IND 15UH 3.5A 41 MOHM SMD |
7,000 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 2.4A | Unshielded | 41mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|

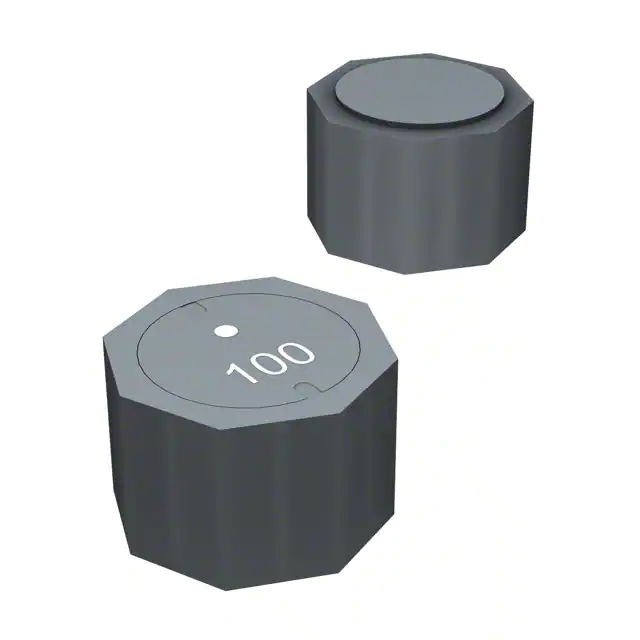

SRU1063-150YFIXED IND 15UH 3.2A 42 MOHM SMD |
6,346 |
|
规格书 |
SRU1063 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.2 A | 3.4A | Shielded | 42mOhm Max | 12 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.268" (6.80mm) |
|
SPM10065VT-100M-DFIXED IND 10UH 8.1A 0.021OHM SMD |
4,367 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 8.1 A | 15.2A | Shielded | 21mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1006 | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.256" (6.50mm) |
|
EST0645T100MDGAFIXED IND 10UH 2.6A 38 MOHM SMD |
2,970 |
|
规格书 |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | 2A | Shielded | 38mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.248" L x 0.240" W (6.30mm x 6.10mm) | 0.177" (4.50mm) |
|
B82442T1105K000FIXED IND 1MH 150MA 9.5 OHM SMD |
2,701 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 150 mA | 310mA | Unshielded | 9.5Ohm Max | 30 @ 252kHz | 1.8MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
74479262147FIXED IND 470NH 1.5A 100MOHM SMD |
2,644 |
|
规格书 |
WE-PMCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 1.5 A | 2.5A | Shielded | 100mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
AIUR-06-221KFIXED IND 220UH 1.5A 252 MOHM TH |
2,331 |
|
规格书 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.5 A | 1.9A | Unshielded | 252mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
