固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH125NP-220MCFIXED IND 22UH 2.8A 36 MOHM SMD |
23,356 |
|
规格书 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.8 A | - | Shielded | 36mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
AMDLA4020S-4R7MTFIXED IND 4.7UH 3A 70 MOHM SMD |
18,782 |
|
规格书 |
AMDLA4020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 3 A | 4.5A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
|

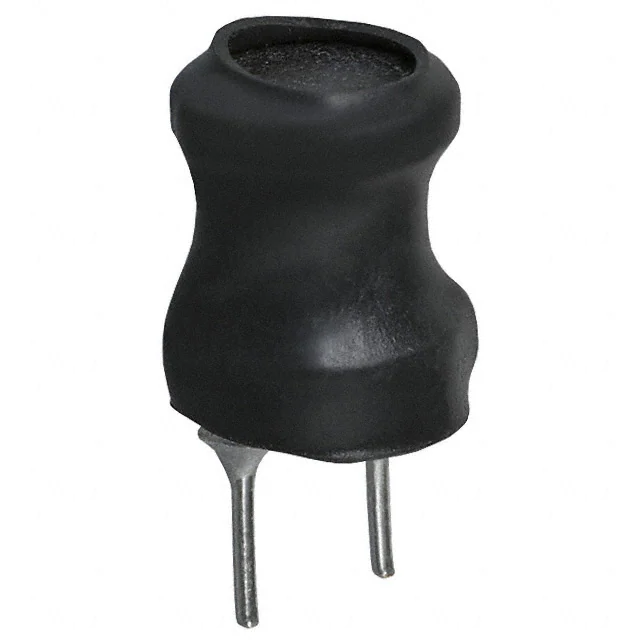

RL822-3R3K-RCFIXED IND 3.3UH 2.66A 25 MOHM TH |
12,476 |
|
规格书 |
RL822 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 2.66 A | - | Unshielded | 25mOhm Max | 20 @ 7.96MHz | 79MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
CDPH4D19FNP-3R3MCFIXED IND 3.3UH 3.8A 33 MOHM SMD |
7,010 |
|
规格书 |
CDPH4D19F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 3.8 A | 1.5A | Shielded | 33mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
CLF6045NIT-151M-DFIXED IND 150UH 530MA 576MOHM SM |
5,920 |
|
规格书 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 530 mA | 530mA | Shielded | 576mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
DRA74-330-RFIXED IND 33UH 1.37A 151MOHM SMD |
5,089 |
|
规格书 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.37 A | 1.61A | Shielded | 151mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
CDRH8D28NP-3R3NCFIXED IND 3.3UH 6A 18.2 MOHM SMD |
4,647 |
|
规格书 |
CDRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 6 A | 4A | Shielded | 18.2mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
74479290125WE-PMCI POWER MOLDED CHIP INDUCT |
4,367 |
|
规格书 |
WE-PMCI | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 250 nH | ±15% | 9.35 A | 12A | Unshielded | 31mOhm Max | - | 150MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.059" (1.50mm) |
|
HCMA0503-150-RFIXED IND 15UH 2.4A 166 MOHM SMD |
3,253 |
|
规格书 |
HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±20% | 2.4 A | 2.1A | Shielded | 166mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
ETQ-P4M220KVCFIXED IND 22UH 5A 66 MOHM SMD |
2,749 |
|
规格书 |
PCC-M1040M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 5 A | 7.4A | Shielded | 66mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|

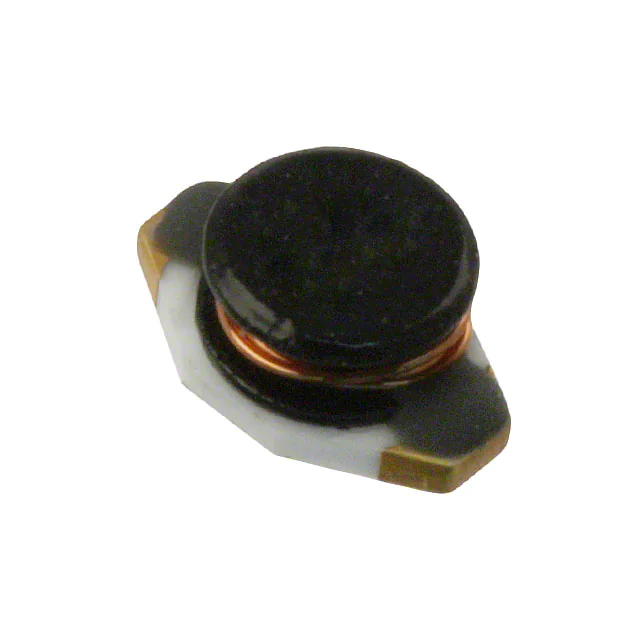

SDR6603-100MFIXED IND 10UH 1.1A 160 MOHM SMD |
2,664 |
|
规格书 |
SDR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 1.1A | Unshielded | 160mOhm Max | 17 @ 2.52MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
RLS-567FIXED IND 5.6UH 1.18A 180MOHM SM |
2,499 |
|
规格书 |
- | 1812 (4532 Metric) | Strip | Active | Wirewound | - | 5.6 µH | ±20% | 1.18 A | 1.9A | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.122" W (4.50mm x 3.10mm) | 0.122" (3.10mm) |
|
RLS-397FIXED IND 3.9UH 1.32A 140MOHM SM |
2,483 |
|
规格书 |
- | 1812 (4532 Metric) | Bulk | Active | Wirewound | - | 3.9 µH | ±20% | 1.32 A | 2.1A | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.122" (3.10mm) |
|
B82442T1106K000FIXED IND 10MH 46MA 112 OHM SMD |
2,192 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 46 mA | 110mA | Unshielded | 112Ohm Max | 25 @ 79.6kHz | 500kHz | AEC-Q200 | -55°C ~ 150°C | 79.6 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
ETQ-P4M100KVCFIXED IND 10UH 7.6A 27.94MOHM SM |
2,085 |
|
规格书 |
PCC-M1040M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 7.6 A | 10.8A | Shielded | 27.94mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ETQ-P4M470KVCFIXED IND 47UH 3.4A 145.2MOHM SM |
1,951 |
|
规格书 |
PCC-M1040M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 3.4 A | 4.7A | Shielded | 145.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CLF7045NIT-2R2N-DFIXED IND 2.2UH 5.1A 17MOHM SMD |
1,842 |
|
规格书 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.1 A | 6.2A | Shielded | 17mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
74479276210CFIXED IND 1UH 2.1A 65 MOHM SMD |
1,769 |
|
规格书 |
WE-PMCI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 2.1 A | 3.1A | Shielded | 65mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
ETQ-P4M6R8KVCFIXED IND 6.8UH 8.9A 20.35 MOHM |
1,726 |
|
规格书 |
PCC-M1040M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 8.9 A | 12.1A | Shielded | 20.35mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
.jpg)
|
74479887247AFIXED IND 4.7UH 1A 230 MOHM SMD |
6,005 |
|
规格书 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 1 A | 400mA | Shielded | 230mOhm | 23 @ 1MHz | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
