固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF7055T-6R8N2R8-3PFFIXED IND 6.8UH 2.8A 44.2MOHM SM |
4,467 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.8 A | 3A | Shielded | 44.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.228" (5.80mm) |
|
PM54-470L-RCFIXED IND 47UH 720MA 370MOHM SMD |
4,397 |
|
规格书 |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 720 mA | 1A | Unshielded | 370mOhm | 22 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|

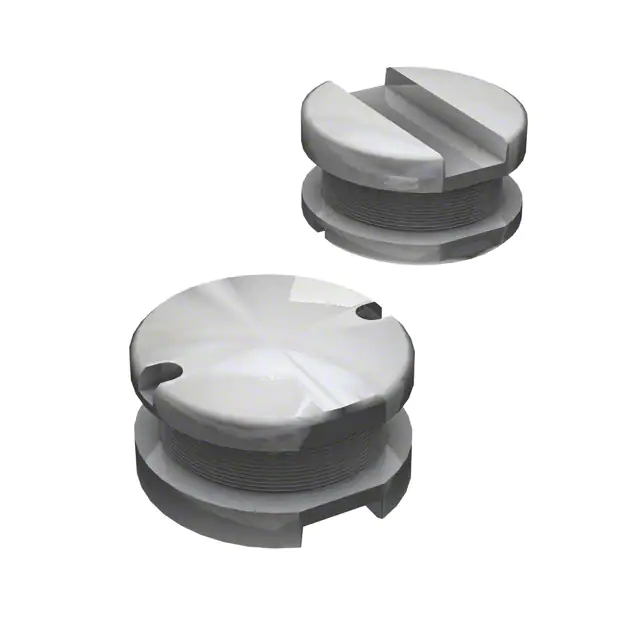

SDR1307-270MLFIXED IND 27UH 3.3A 60 MOHM SMD |
4,213 |
|
规格书 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 3.3 A | 5.5A | Unshielded | 60mOhm Max | 35 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
ETQ-P4M100KFMFIXED IND 10UH 6A 39.6 MOHM SMD |
2,751 |
|
规格书 |
PCC-M0748M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 6 A | 9.6A | Shielded | 39.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
PM54-221K-RCFIXED IND 220UH 350MA 1.57OHM SM |
2,734 |
|
规格书 |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 350 mA | 440mA | Unshielded | 1.57Ohm | 20 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|

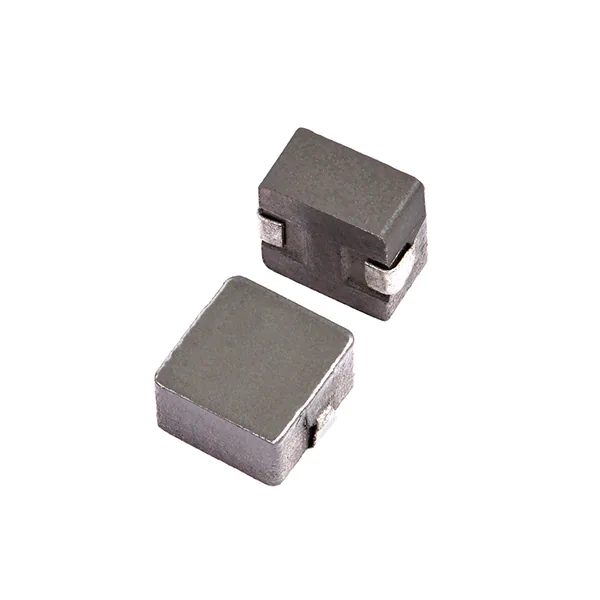

HCM0503-220-RFIXED IND 22UH 1.9A 270 MOHM SMD |
2,270 |
|
规格书 |
HCM0503 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 1.9 A | 1.9A | Shielded | 270mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
SDR1307-101KLFIXED IND 100UH 1.9A 180MOHM SMD |
2,106 |
|
规格书 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.9 A | 3A | Unshielded | 180mOhm Max | 25 @ 796kHz | 5.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
ETQ-P4M220KFMFIXED IND 22UH 3.9A 92.51MOHM SM |
1,976 |
|
规格书 |
PCC-M0748M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 3.9 A | 4.6A | Shielded | 92.51mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
ETQ-P4M3R3KVKFIXED IND 3.3UH 8.9A 15.4MOHM SM |
1,851 |
|
规格书 |
PCC-M0840M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 8.9 A | 17.4A | Shielded | 15.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.157" (4.00mm) |
|
|
SDR1307-560KLFIXED IND 56UH 2.5A 95 MOHM SMD |
1,529 |
|
规格书 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 2.5 A | 3.8A | Unshielded | 95mOhm Max | 22 @ 2.52MHz | 7.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307-470KLFIXED IND 47UH 2.7A 82 MOHM SMD |
1,440 |
|
规格书 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.7 A | 4.2A | Unshielded | 82mOhm Max | 24 @ 2.52MHz | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
MWSA0503S-100MTFIXED IND 10UH 3.2A 125MOHM SMD |
1,039 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 10 µH | ±20% | 3.2 A | 3.5A | Shielded | 125mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SDR1307-150MLFIXED IND 15UH 4.5A 34 MOHM SMD |
4,407 |
|
规格书 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.5 A | 7.5A | Unshielded | 34mOhm Max | 28 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
TFM322512ALVA100MTAAFIXED IND 10UH 1.2A 360 MOHM SMD |
4,231 |
|
规格书 |
TFM-ALVA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 10 µH | ±20% | 1.2 A | 1.6A | Shielded | 360mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
PA5401.472NLTFIXED IND 4.7UH 2.6A 200MOHM SMD |
4,070 |
|
规格书 |
PA5401 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 2.6 A | 3A | Shielded | 200mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SDR1307-120MLFIXED IND 12UH 4.8A 30 MOHM SMD |
3,331 |
|
规格书 |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 4.8 A | 8A | Unshielded | 30mOhm Max | 25 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
CLF7045T-2R2N-DFIXED IND 2.2UH 4.3A 18.98 MOHM |
2,643 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.3 A | 5.5A | Shielded | 18.98mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
ETQ-P4M4R7KVKFIXED IND 4.7UH 8.3A 17.71 MOHM |
2,418 |
|
规格书 |
PCC-M0840M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 8.3 A | 15.1A | Shielded | 17.71mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.157" (4.00mm) |
|
EXLA1V0505-150-RIND MOLDED SHLD 15.0UH 3.0A |
2,236 |
|
规格书 |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 15 µH | ±20% | 4 A | 4.6A | Shielded | 66mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
DR1040-5R2-RFIXED IND 5.2UH 5.4A 17 MOHM SMD |
1,310 |
|
规格书 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.2 µH | ±30% | 5.4 A | 5.5A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
