固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGJ12575TS-330M3R2-HFIXED IND 33UH 3.4A 39.5MOHM SMD TDK Corporation |
0 |
|
规格书 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.4 A | 3.2A | Shielded | 39.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|

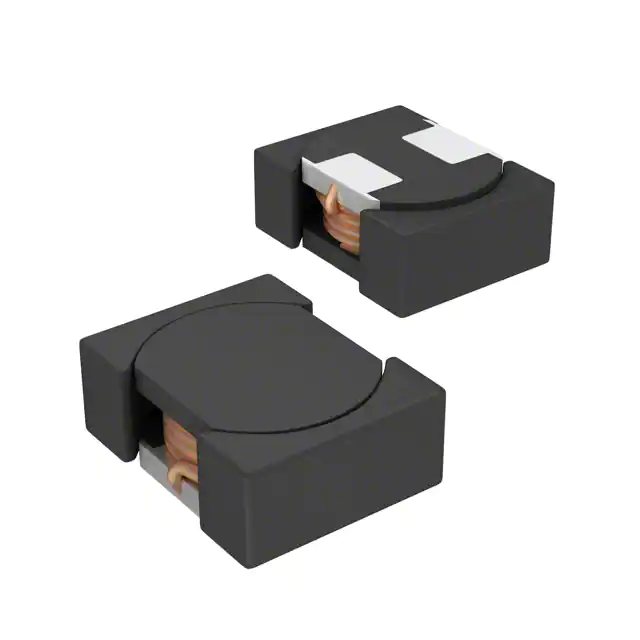

VLF252010MT-1R5N-CAFIXED IND 1.5UH 1.83A 90MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.83 A | 1.1A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-2R2M-CAFIXED IND 2.2UH 1.47A 120MOHM SM TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.47 A | 920mA | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-3R3M-CAFIXED IND 3.3UH 1.15A 190MOHM SM TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.15 A | 750mA | Shielded | 190mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-4R7M-CAFIXED IND 4.7UH 950MA 300MOHM SM TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 950 mA | 640mA | Shielded | 300mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-150M-CAFIXED IND 15UH 530MA 870MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 530 mA | 340mA | Shielded | 870mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-220M-CAFIXED IND 22UH 450MA 1.26OHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 450 mA | 290mA | Shielded | 1.26Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
VLF252012MT-1R5N-CAFIXED IND 1.5UH 2.17A 69MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.17 A | 1.22A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
VLF252012MT-2R2M-CAFIXED IND 2.2UH 1.67A 100MOHM SM TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.67 A | 1.04A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
VLF252012MT-6R8M-CAFIXED IND 6.8UH 890MA 340MOHM SM TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 890 mA | 560mA | Shielded | 340mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
