上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLC5020T-1R2NFIXED IND 1.2UH 3.8A 30 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.2 µH | ±30% | 3.8 A | 3.8A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
VLC5020T-1R5NFIXED IND 1.5UH 3.3A 38 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 3.3 A | 3.3A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

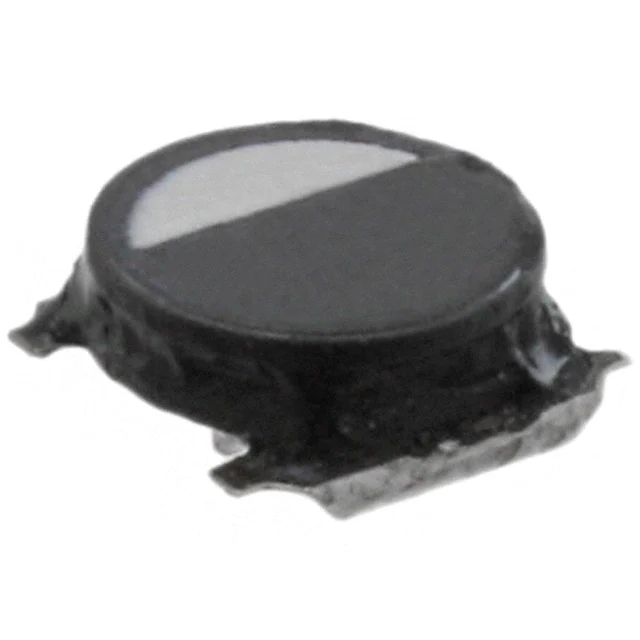

VLC5020T-2R2NFIXED IND 2.2UH 3A 45 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 3 A | 3A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
VLC5020T-3R3NFIXED IND 3.3UH 2.4A 71 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 2.4 A | 2.4A | Shielded | 71mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
VLC5020T-4R7NFIXED IND 4.7UH 2A 97 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 2 A | 2A | Shielded | 97mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
VLC5020T-R47NFIXED IND 470NH 5.6A 18 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 nH | ±30% | 5.6 A | 5.6A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

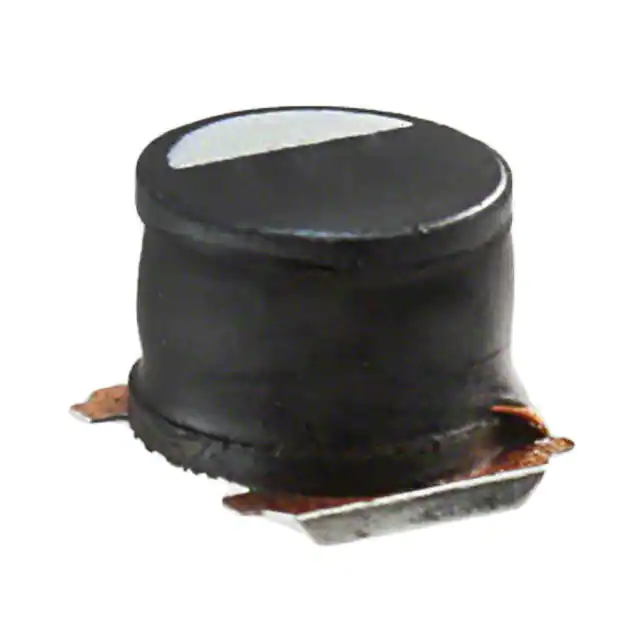

VLC5045T-100MFIXED IND 10UH 2.1A 66 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 2.1 A | 2.1A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLC5045T-150MFIXED IND 15UH 1.8A 100 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 1.8 A | 1.8A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLC5045T-1R5NFIXED IND 1.5UH 5.5A 18 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 5.5 A | 5.5A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLC5045T-2R2NFIXED IND 2.2UH 5A 22 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 5 A | 5A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
