固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

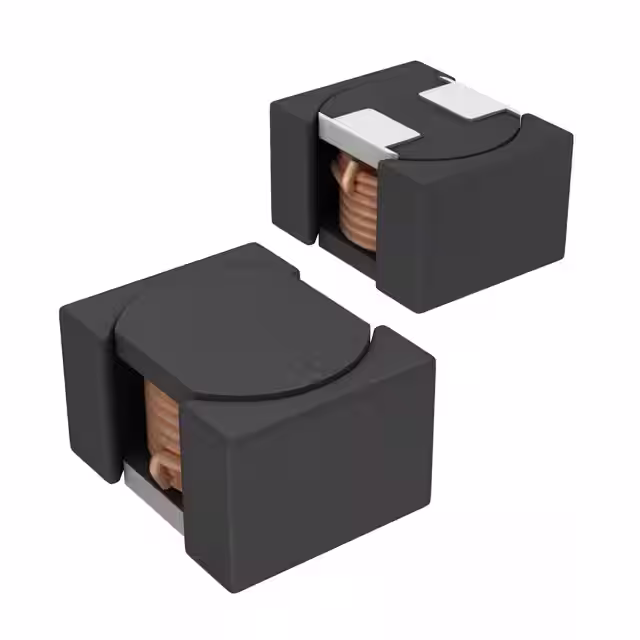

VLF252015MT-150M-CAFIXED IND 15UH 770MA 450MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 770 mA | 370mA | Shielded | 450mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
|
VLF252015MT-220M-CAFIXED IND 22UH 580MA 730MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 580 mA | 310mA | Shielded | 730mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
VLF302510MT-1R0N-CAFIXED IND 1UH 2.13A 40 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.13 A | 2A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-1R5N-CAFIXED IND 1.5UH 1.65A 66MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.65 A | 1.49A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-2R2M-CAFIXED IND 2.2UH 1.5A 84 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.23A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
VLF302510MT-3R3M-CAFIXED IND 3.3UH 1.2A 126MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.2 A | 1.09A | Shielded | 126mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-4R7M-CAFIXED IND 4.7UH 1.08A 168MOHM SM TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.08 A | 860mA | Shielded | 168mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-220M-CAFIXED IND 22UH 450MA 876MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 450 mA | 380mA | Shielded | 876mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302512MT-1R0N-CAFIXED IND 1UH 2.77A 37 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.77 A | 1.91A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLF302512MT-2R2M-CAFIXED IND 2.2UH 1.95A 66MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.95 A | 1.26A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
